Fenestra Rectangle Advanced 12030 48-830-4300LM, ohne Treiber

Fenestra Rectangle Advanced 12030 48-830-4300LM, ohne Treiber
LG56101
Preise sind erst nach der Anmeldung sichtbar.

Last Stock

Availability: low stock

Dimensions

Dimensions
  • LG56101
  • Luminous Flux: 4300 lm
  • LED Power: 48 W
  • Light Color: warmwhite (3000 K)
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 110°
  • LED-Chip: Samsung SMD 5630
  • Housing Color: greywhite
  • Dimensions: 1200x300x12 mm
  • Warranty: 3 years

Luminous Flux

4300
lm

LED Power

48 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

110°

Light Direction

Dimensions

(LxBxH) in mm
1200x300x12

Warranty

3 years

LED Panel   The Litegear® Fenestra Rectangle Advance Line LED panels are... more
Product information "Fenestra Rectangle Advanced 12030 48-830-4300LM, ohne Treiber"
LED Panel

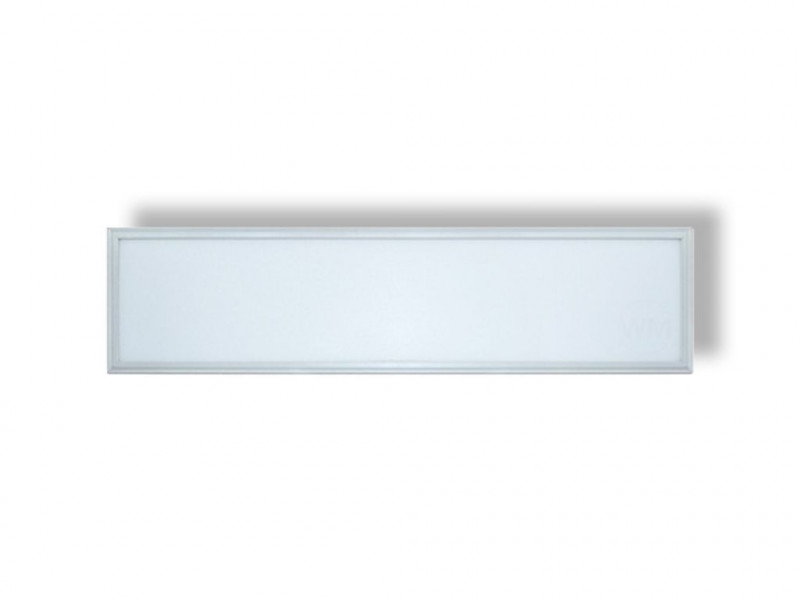

The Litegear® Fenestra Rectangle Advance Line LED panels are made to be installed in to ceilings or to be hung on walls or ceilings. They have a low power consumption and a long lifespan. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Our LED panels give you the imagination of a sky window with naturally light flooded rooms. Litegear Fenestra LED panels are perfect for use with computer screens because the almost give no reflections. A Fenestra Rectangle Advance can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55% energy costs.

The Litegear® LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer them in constant current version without. driv. We offer suitable LED driver. Some drivers are dimmable in brightnes via Dali, DMX or 0-10V up to the specification of the driver. Fenestra Rectangle Advance have a very high lumen output.
Related links to "Fenestra Rectangle Advanced 12030 48-830-4300LM, ohne Treiber"
Technical Details:

Luminous Flux: 4300 lm
LED Output: 48 W
Light Yield: 90 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 110 °
Unified Glare Rating (UGR): 19
Light Emission: downward
LED-Chip Manufacturer: Samsung
LED-Chip: SMD 5630
Ignition Time: <1 s
Output of Driver: DC 30 - 42V, 1150mA
CC/CV: CC
Input Lamp: plug connector
Ambient Temperature (TA): -20°C - 45°C
Dimensions: 1200x300x12 mm
Mounting: Decke
IP Class: 20
Housing Color greywhite
Housing Material: aluminum
Coating: lacquered
Cover: opal
Net Weight: 3000 g
Type of Packaging: box
Weight incl. Packaging: 4.523 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L70/B50
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS
Barcode: 4250557806259
