Fenestra Value Rectangle MKII 6030 36-830-3600LM
Order number: LG56185
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG56185
- Luminous Flux: 3600 lm
- Power Draw: 36 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 110°
- LED-Chip: SMD 2835
- Housing Color: greywhite
- Dimensions: 595x295x13 mm
- Warranty: 5 years
LED Panel The Litegear® Fenestra Value LED panels are made to be... more
Product information "Fenestra Value Rectangle MKII 6030 36-830-3600LM"
LED Panel

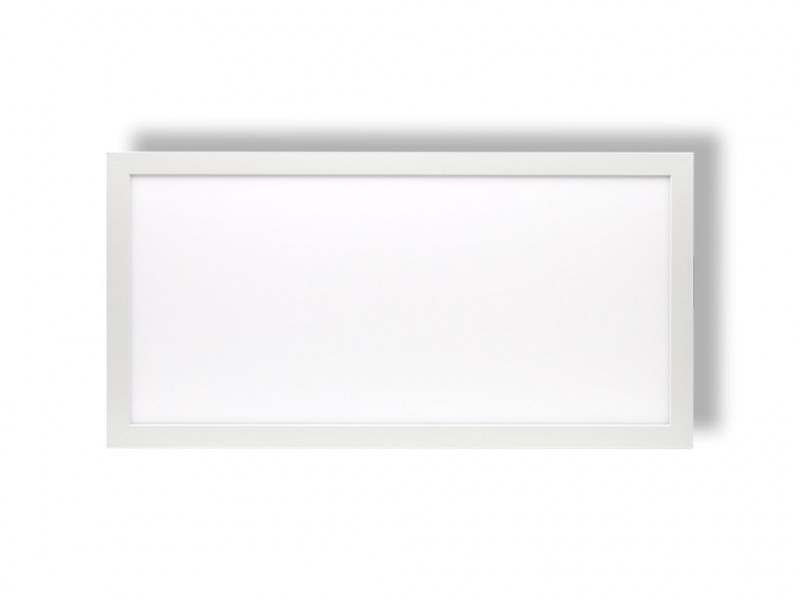

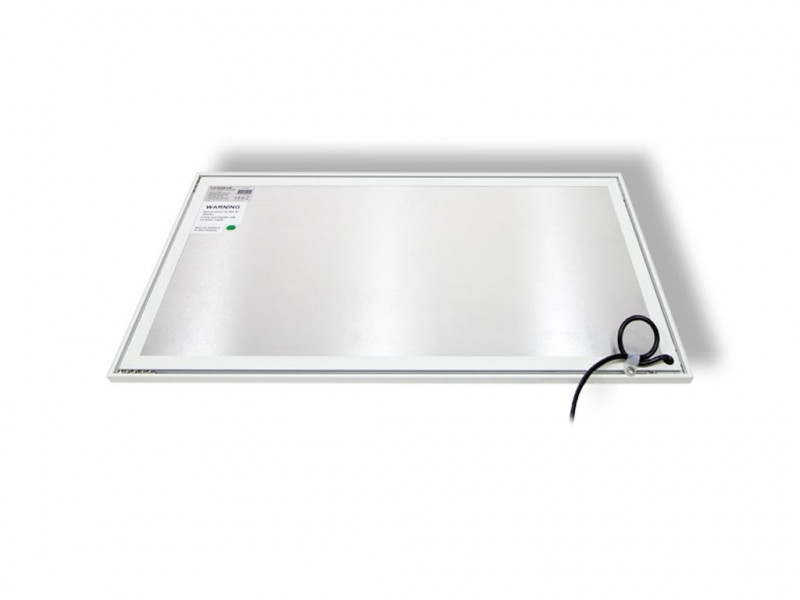

The Litegear® Fenestra Value LED panels are made to be installed in to ceilings or to be hung on walls or ceilings. They have a low power consumption and a long lifespan. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Our LED panels give you the imagination of a sky window with naturally light flooded rooms. Litegear® Fenestra Value LED panels are perfect for use with computer screens because the almost give no reflections. A Fenestra Value can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55% energy costs.
The Litegear® Fenestra Value LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer suitable LED driver . Some drivers are dimmable in brightnes via Dali, DMX or 0-10V up to the specification of the driver. Fenestra Value Panels have a very high lumen output.
Related links to "Fenestra Value Rectangle MKII 6030 36-830-3600LM"
Technical Details:
| Luminous Flux: | 3600 lm |
| LED Output: | 34 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 110 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 36 W |
| Contains Driver: |  |
| Driver Manufacturer: | Lifud |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 30 - 40V, 900mA |
| CC/CV: | CC+CV |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Dimensions: | 595x295x13 mm |
| Mounting: | ceiling,wall |
| Montageart: | recessed |
| IP Class: | 20 |
| IK Code: | 06 |
| Housing Color | greywhite |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | opal |
| Net Weight: | 2047 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 620x40x370 |
| Weight incl. Packaging: | 2.368 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 640x190x395 mm |
| Weight Master Package: | 10,41 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,ENEC,LM80,D |
| Barcode: | 4250557809885 |
