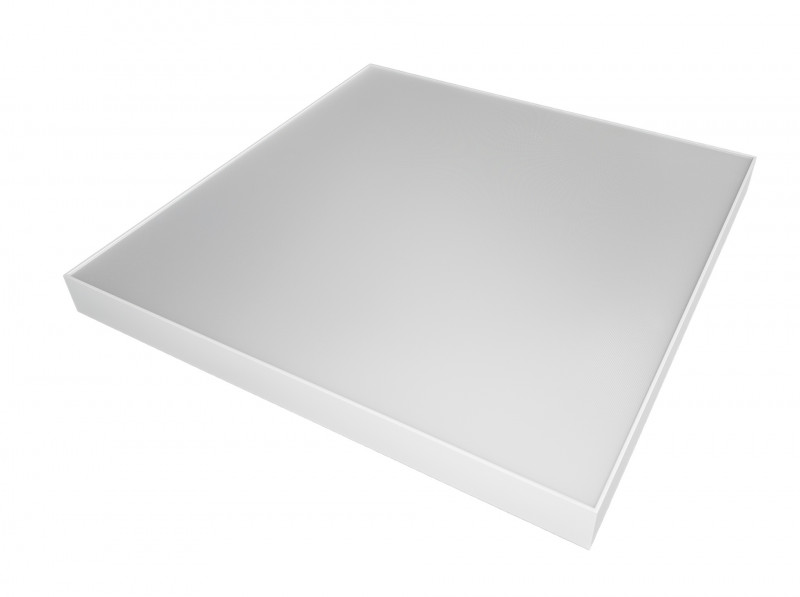

Lucello UP Multi-CCT BL-Aufbau-Panel 6060-40-830/840-5200LM BAP UGR 19
Order number: LG59074
Available soon
Prices are only visible after login.
Availability: on request

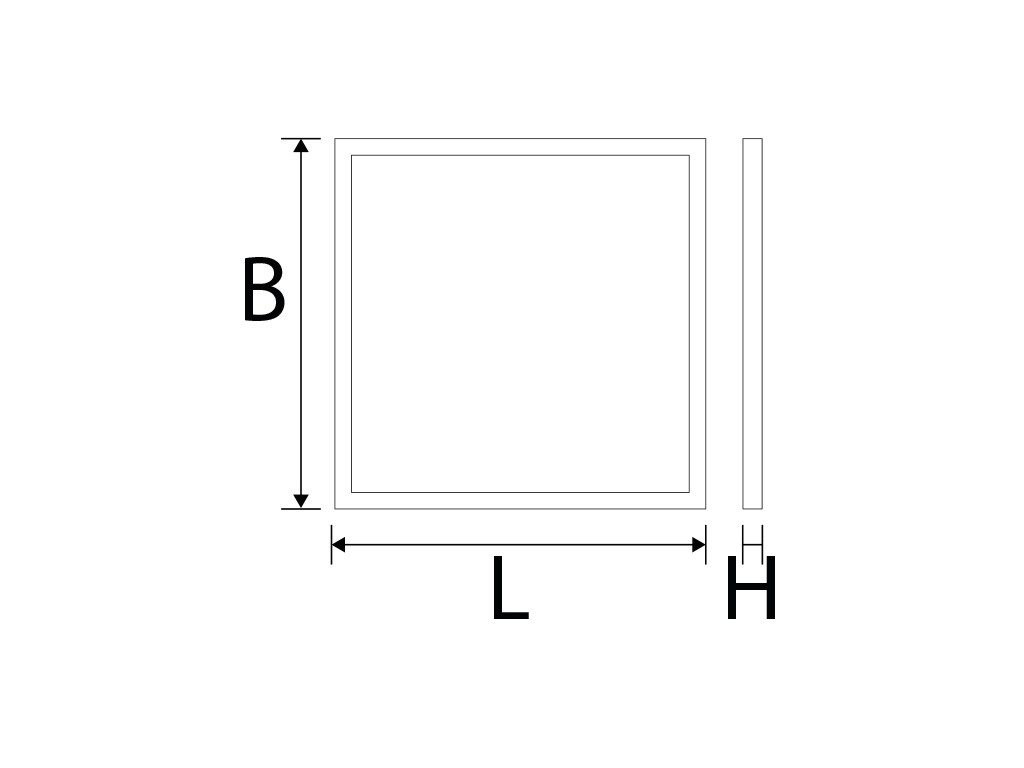

Dimensions
- Order number: : LG59074
- Luminous Flux: 5230 lm
- Power Draw: Power Select (33, 36, 40 W)
- Light Color: CCT Select (3000,3500,4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (40 room side)
- Beam Angle: 90°
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 600x600x55 mm
- Warranty: 5 years
LED Backlight Surface mounting Panel OneFitAll For computer workstations - suitable... more
Product information "Lucello UP Multi-CCT BL-Aufbau-Panel 6060-40-830/840-5200LM BAP UGR 19"
LED Backlight Surface mounting Panel OneFitAll
For computer workstations - suitable according to EN 12464-1 for screens with high luminance!
- elegant slim frame
- Including innovative slim LED driver. Power Select: 33, 36, 40W
- Very low power consumption and high system efficency: >130-140lm/W
- CCT Select: select able light colour by switch on the panel backside: 3000, 3500, 4000 Kelvin
- Replacment for traditional surface troffer lights: 4x 18W T8 flourescent tubes
- excellent price/performance ratio, fast ROI
- Diffusor made from UV stabilized PS
- wide beam angle and very uniform light distribution
Applications:
Shops, corridors, production areas, storage rooms, warehouse, dressing rooms, health club, Fitness, meeting rooms, school
Related links to "Lucello UP Multi-CCT BL-Aufbau-Panel 6060-40-830/840-5200LM BAP UGR 19"
Technical Details:
| Luminous Flux: | 5230 lm |
| Light Yield: | 140 lm/W |
| Light Temperature: | 3000,3500,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <2 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 96 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | Power Select (33, 36, 40 W) |
| Contains Driver: |  |
| Driver Manufacturer: | AGT M5 145CC |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 25-40V, 850-1050mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >70.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -30°C - 45°C |
| Storage Temperature: | -30°C - 80°C |
| Dimensions: | 600x600x55 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (40 room side) |
| IK Code: | 04 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | steel |
| Coating: | powder-coated |
| Special Feature of Housing: | Surface-mounted housing |
| Cover: | prismatic |
| Net Weight: | 3500 g |
| Type of Packaging: | box |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >124.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557827117 |
| Bildschirmarbeitsplatz tauglich nach EN 12464-1 | |
| CCT-Select: schaltbare Lichtfarbe 3000, 3500,4000K | |
| Aufbauleuchte/surface mount panel | |
| Backlite Technology | |
| OneFitAll, Power Select: 33, 36, 40W | |
