Lucello Multi-CCT BL-Panel 6262-40-830/850-4800LM BAP UGR 19
Order number: LG59096
Available from 04/2026
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG59096
- Luminous Flux: 4800 lm
- Power Draw: Power Select (28,32,36,40 W)
- Light Color: CCT Select (3000,4000, 5000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 40 (40 room side)
- Beam Angle: 90°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 620x620x30 mm
- Warranty: 5 years
LED Backlight Panel Litegear® Lucello LED-Panel for German grid ceilings 62,5 x... more
Product information "Lucello Multi-CCT BL-Panel 6262-40-830/850-4800LM BAP UGR 19"
LED Backlight Panel
Litegear® Lucello LED-Panel for German grid ceilings 62,5 x 62,5cm
For computer workstations - suitable according to EN 12464-1 for screens with high luminance!
- Very low power consumption and high system efficency: 120lm/W @CRI90
- Power Select: electronic driver with select able output power: 28, 32, 36, 40W

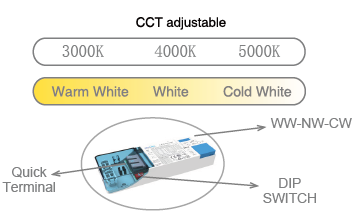

- CCT Select: select able light colour by switch on the panel backside: 3000, 4000, 5000 Kelvin
- Replacment for traditional troffer lights: 4 x 18W T8 flourescent tubes
- excellent price/performance ratio, fast ROI
- Diffusor made from UV stabilized PS
- wide beam angle and very uniform light distribution
Applications:
Shops, corridors, production areas, storage rooms, warehouse, dressing rooms, health club, Fitness, meeting rooms, school
Related links to "Lucello Multi-CCT BL-Panel 6262-40-830/850-4800LM BAP UGR 19"
Technical Details:
| Luminous Flux: | 4800 lm |
| LED Output: | 40 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000,4000, 5000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | Power Select (28,32,36,40 W) |
| Contains Driver: |  |
| Driver Manufacturer: | Micromile MM-2092C-1050-B |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 28-40V, 850-1050mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -30°C - 80°C |
| Dimensions: | 620x620x30 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 40 (40 room side) |
| IK Code: | 04 |
| Housing Color | white |
| Housing Material: | Stahl+Alu+PS |
| Coating: | powder-coated |
| Cover: | prismatic |
| Net Weight: | 1846 g |
| Type of Packaging: | box |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,ENEC |
| Barcode: | 4250557827773 |
| Bildschirmarbeitsplatz tauglich nach EN 12464-1 | |
| CCT-Select: schaltbare Lichtfarbe 3000, 4000,5000K | |
| Aufbauleuchte/surface mount panel | |
| Backlite Technology 120lm/W typ. | |
| OneFitAll, Power Select: 28,32,36,40 Watt | |
