BEG Aufputz Präsenzmelder PD4-M-1C-AP
Order number: 7000526
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

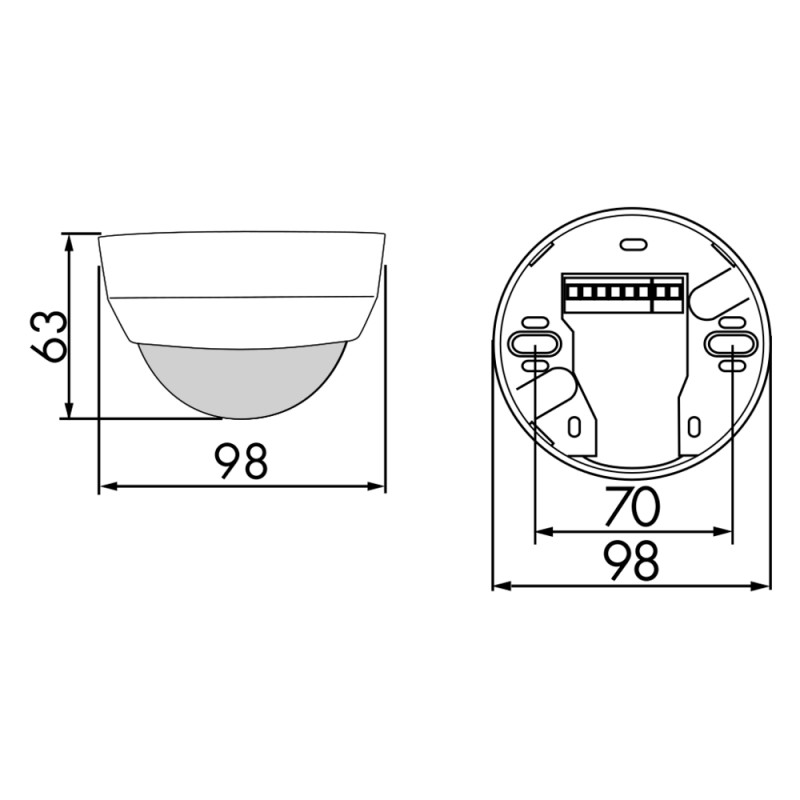

Dimensions
Short information
- Order number: : 7000526
- Dimensions: 98x63 mm
Dimensions
(ØxH) in mm
98x63
Occupancy detector for ceiling surface mounting Product Information... more
Product information "BEG Aufputz Präsenzmelder PD4-M-1C-AP"
Occupancy detector for ceiling surface mounting
Product Information
- Occupancy detector with extended detection area
- One potential-free (dry) contact

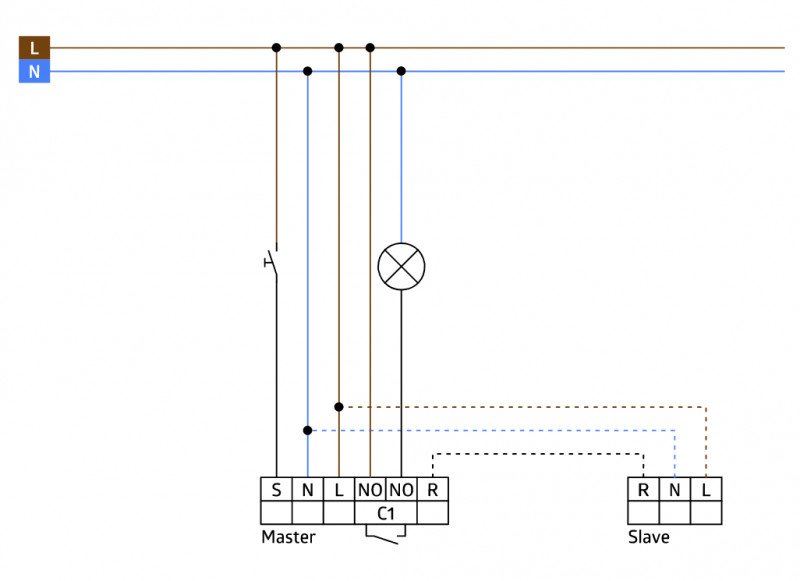

- Version as Master device
- Extension of the detection area with slave devices possible
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- Factory settings 10 min and 500 lux
- Typical applications: monitoring of large areas like underground garages, gyms, warehouses, loading ramps, halls
Technical Data
Voltage:
110 - 240 V AC 50 / 60 Hz
Dimensions:
FM= Ø 104 x 70 mm
SM= Ø 98 x 63 mm
FC= Ø 97 x 103 mm
Power consumption:
approx. 0.4 W
Detection area:
vertical 360°

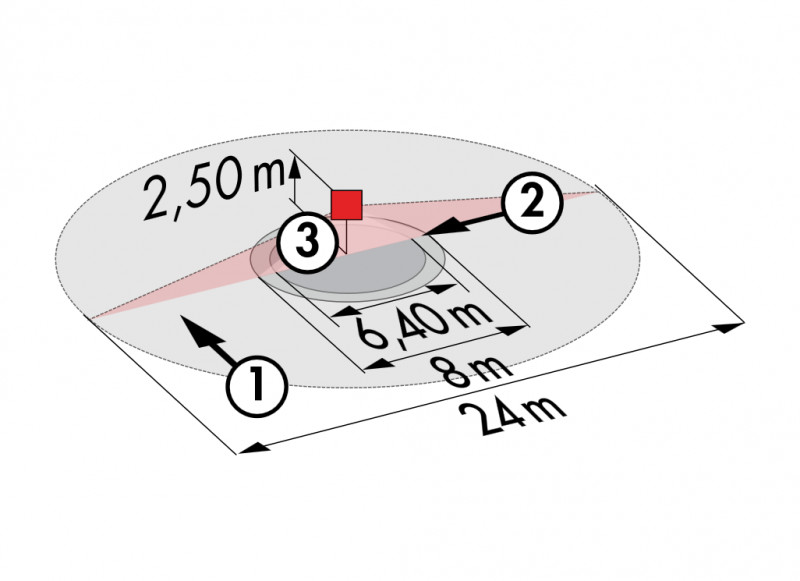

Range:
max. Ø 24 m across
max. Ø 8 m towards
max. Ø 6.4 m seated
Monitored area
450 m² / 2.5 m Mounting height
(tangential movement):
Mounting height
min./max./recommended:
2 m / 10 m / 2.5 m
Degree / class of
protection:
FM= IP20 / Class II
SM= IP20 / Class II
FC= IP20 / Class II
Ambient temperature:
-25 °C to +50 °C
Housing:
Polycarbonate, UV-resistant
Channel 1 (lighting control, potential-free (dry))
Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 μs) = 800 A
Type of contact:
1x μ-contact, dry NO contact with tungsten pre-make contact
Follow-up time:
15 sec - 30 min, Pulse
Switch-on threshold:
10 - 2000 Lux
Mixed light measuring
Related links to "BEG Aufputz Präsenzmelder PD4-M-1C-AP"
Technical Details:
| Dimensions: | 98x63 mm |
| Net Weight: | 255 g |
| Weight incl. Packaging: | 0.261 kg |
| Barcode: | 4007529925803 |
| Technische Details s. Beschreibung | |
