Order number: 7000529
Preise sind erst nach der Anmeldung sichtbar.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Part No. 97002 Product Information Motion detector with 230°... more
Product information "BEG Außen Aufputz Präsenzmelder RC-plus next 230"
Part No. 97002

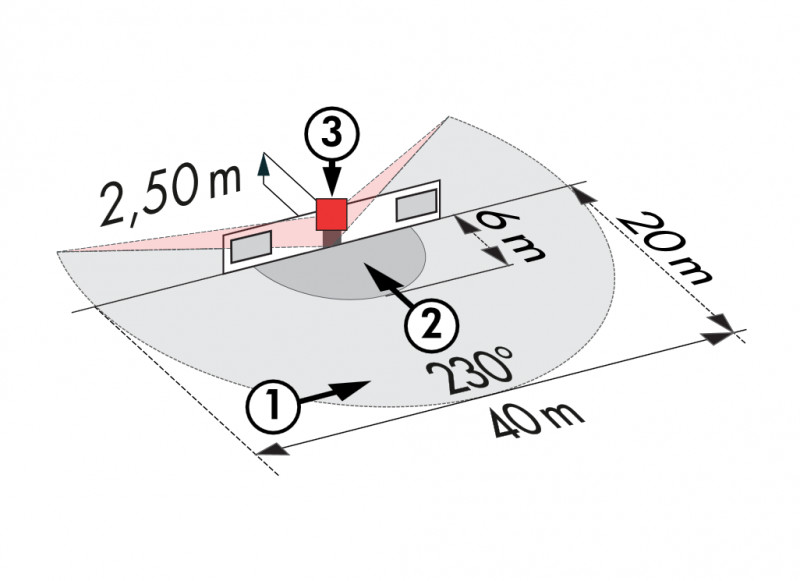

- Motion detector with 230° detection area and anti-creep zone
- Mechanical range adjustment
- Different follow-up time depending on direction of movement
- Adjustable ball head
- Immediate operation using factory settings
- Additional functions can be set up using the optional remote control.
- Easy mounting thanks to plug base
- Wall, ceiling and corner mounting
- Factory settings 3 min and 20 lux
- Application examples: for narrow premises, walkways, gateways
110 - 240 V AC 50 / 60 Hz (can also be supplied with other operating voltages ON
121 x 71 x 85 mm
approx. 0.5 W
max. 20 m across
max. 6 m towards
max. 4 m anti-creep
Monitored area (tangential movement):
400 m² / 2.5 m Mounting height
2 m / 5 m / 2.5 m
Degree / class of protection:
IP54 / Class II
-25 °C to +50 °C
Channel 1 (lighting control)
3000 W, cos φ = 1
1500 VA, cos φ = 0.5
max. inrush current IP (20 ms) = 165 A
max. inrush current IP (200 μs) = 800 A
Type of contact:
μ-contact, 1 x NO contact with tungsten pre-make contact
15 sec - 16 min, Pulse
2 - 2000 Lux
