Order number: 7000521
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Part No. 92190 Product Information Remote control-capable ceiling... more

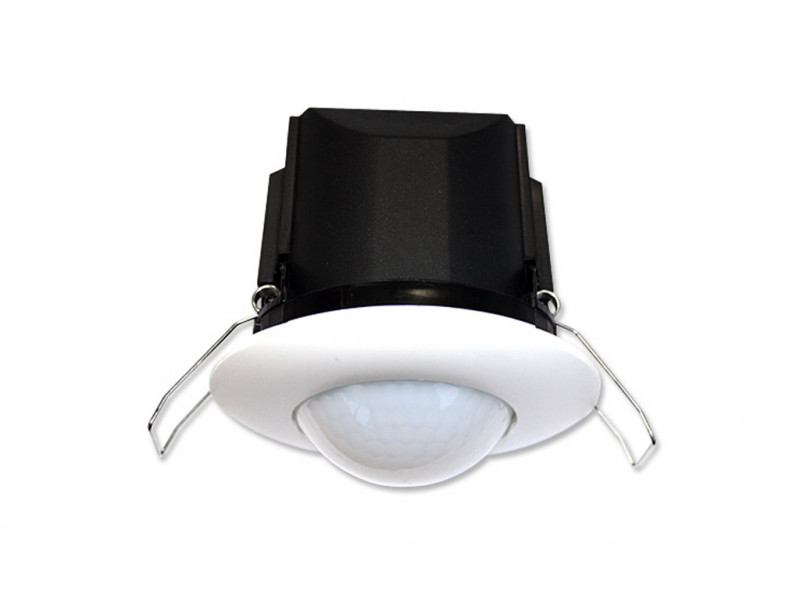

Product information "BEG Präsenzmelder PD3N-1C-DE(L)"
Part No. 92190
- Remote control-capable ceiling motion detector
- One channel for light switching
- Special optical system for detection of even the smallest movements
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- Typical applications: monitoring of smaller areas like stairwells, private garages, galleries, wash rooms
110 - 240 V AC 50 / 60 Hz
SM= Ø 106 x 53 mm
FM= Ø 106 x 63 mm
FC= Ø 83 x 81 mm
approx. 0.5 W

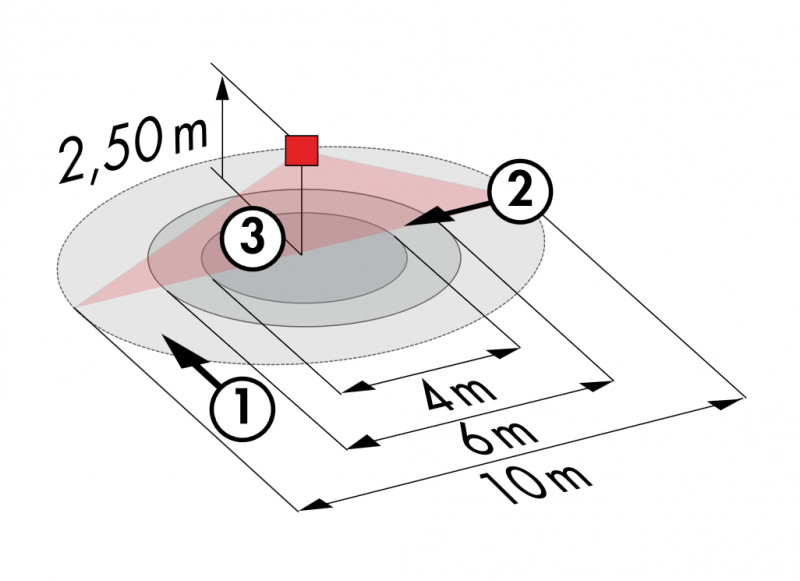

max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m smaller movements
Monitored area (tangential movement):
79 m² / 2.5 m Mounting height
2 m / 5 m / 2.5 m
Degree / class of protection:
SM= IP44 / Class II
FM= IP20 / Class II
FC= IP23 / Class II
-25 °C to +50 °C

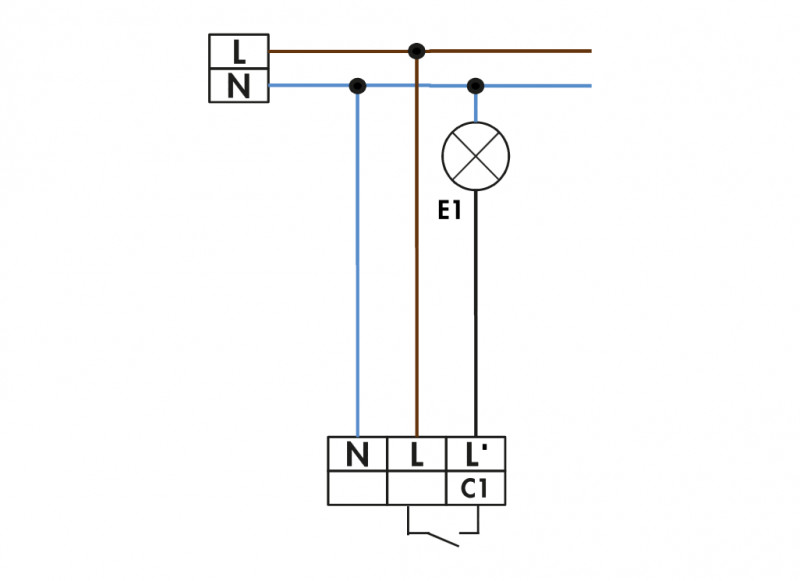

Channel 1 (lighting control)
2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 μs) = 800 A
Type of contact:
1x μ-contact, NO contact with tungsten pre-make contact
15 sec - 30 min, Pulse
10 - 2000 Lux
