BEG Präsenzmelder PD9-M-1C-SDB-IP65-DE
Order number: 7000524
Prices are only visible after login.
Availability: Delivery time 3-8 working days

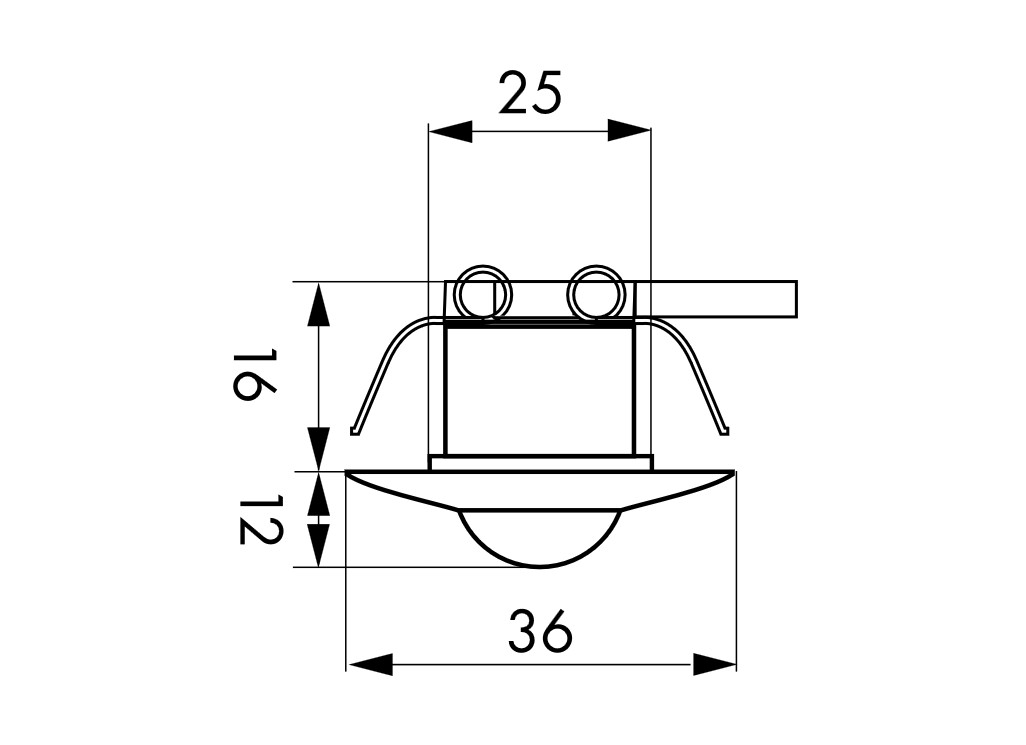

Dimensions
Short information
- Order number: : 7000524
- Dimensions: 36x28 mm
- Cut-Out Dimensions: 25 mm
Dimensions
(ØxH) in mm
36x28
No. 92912 Product Information Mini-occupancy detector designed for... more
Product information "BEG Präsenzmelder PD9-M-1C-SDB-IP65-DE"
No. 92912
Product Information
- Mini-occupancy detector designed for high-humidity locations
- One potential-free (dry) switching contact
- Version as Master device
- One additional Slave device sensor can be directly connected
- Additional functions can be set up using the optional remote control.
- Spring clips for quick and easy installation in suspended ceilings and light fittings
- Includes 45mm cover ring and blinds
- Typical applications: bathrooms, shower cubicles, hospitals
Technical Data
Voltage:
230 V AC +/- 10% 50 Hz
Dimensions:
Sensor head: Ø 36 x 28 mm, Power supply: 154 x 38 x 25 mm
Power consumption:
2.2 W
Detection area:
vertical 360°
Range:
max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement):
79 m² / 2.5 m Mounting height
Mounting height
min./max./recommended:
2 m / 5 m / 2.5 m
Degree / class of protection:
IP65 / Class II
Ambient temperature:
-25 °C to +50 °C
Housing:
Polycarbonate, UV-resistant
Cable length:
350 cm
Channel 1 (lighting control, potential-free (dry)) Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 80 A
Type of contact:
1x μ-contact, dry NO contact
Follow-up time:
15 sec - 30 min, Pulse
Switch-on threshold:
20 - 1500 Lux
Mixed light measuring
Related links to "BEG Präsenzmelder PD9-M-1C-SDB-IP65-DE"
Technical Details:
| Dimensions: | 36x28 mm |
| Cut-Out Dimensions: | 25 mm |
| Net Weight: | 320 g |
| Weight incl. Packaging: | 0.322 kg |
| Barcode: | 4007529929122 |
| Technische Details s. Beschreibung | |
