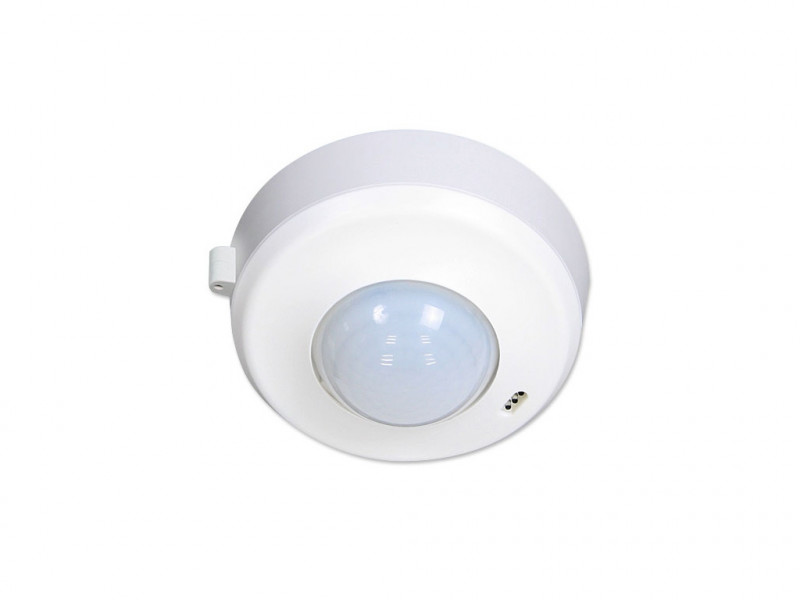

BEG Aufputz Präsenzmelder PD2-M-DALI/DSI-AP
Order number: 7000544
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : 7000544
- Dimensions: 98x50 mm
Dimensions
(ØxH) in mm
98x50
Part No. 92280 Product Information Occupancy detector for... more
Product information "BEG Aufputz Präsenzmelder PD2-M-DALI/DSI-AP"
Part No. 92280
Product Information
- Occupancy detector for daylight-dependent lighting control

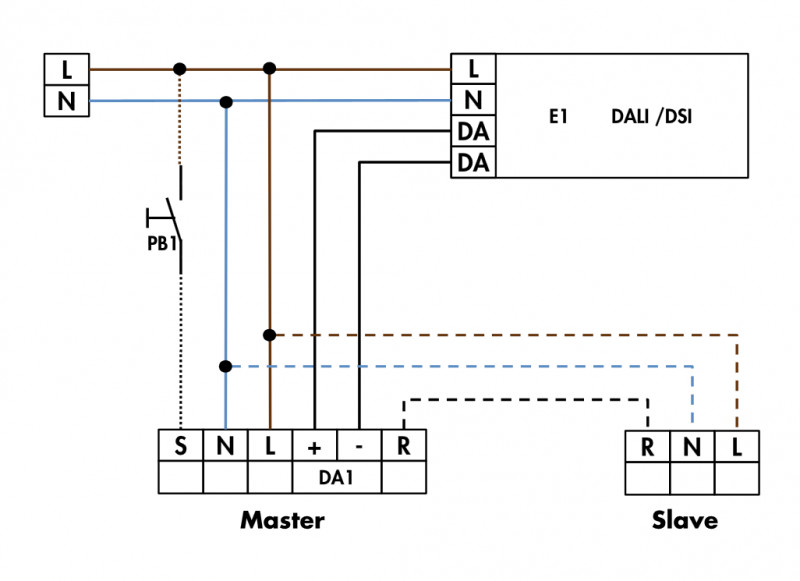

- DALI / DSI interface for control of digital dimmable electronic ballasts as a group
- Manual switching and dimming via push button possible
- Switching between DALI and DSI programming possible with DIP switch and remote control
- Version as Master device
- Extension of the detection area with slave devices possible
- Additional functions can be set up using the optional remote control.
- Orientation light function
- Factory settings 10 min and 500 lux
- Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
Technical Data
Voltage:
110 - 240 V AC 50 / 60 Hz
Dimensions:
FC= Ø 80 x 85 mm
SM= Ø 98 x 47 mm
Power consumption:
approx. 1 W
Detection area:
vertical 360°

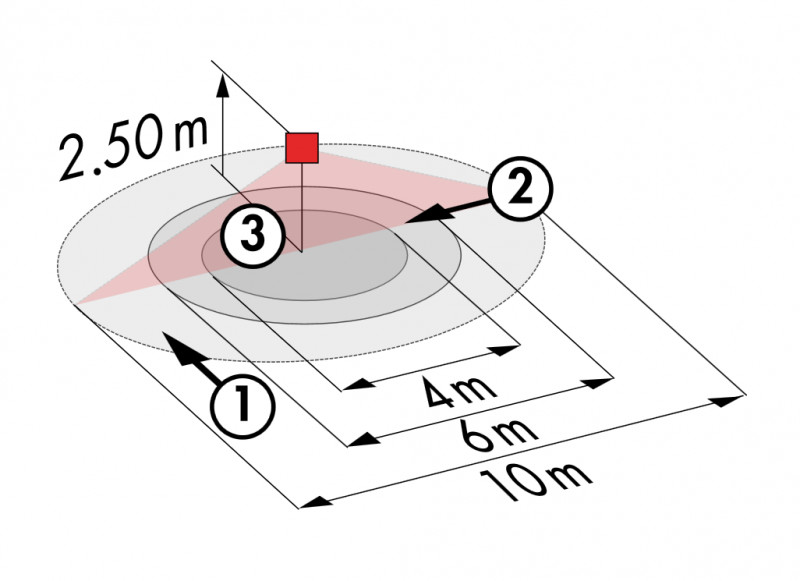

Range:
max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement):
79 m² / 2.5 m Mounting height
Mounting height min./max./recommended:
2 m / 5 m / 2.5 m
Degree / class of protection:
FC= IP20 / Class II
SM= IP20 / Class II
Ambient temperature:
-25 °C to +50 °C
Housing:
Polycarbonate, UV-resistant
Channel 1 (lighting control)
DALI output:
up to 50 DALI / DSI-EB
Follow-up time:
1 min - 30 min
Orientation light:
10 - 30 % / OFF / 5 min - 60 min / ∞
Brightness set value:
10 - 2000 Lux
Mixed light measuring
Related links to "BEG Aufputz Präsenzmelder PD2-M-DALI/DSI-AP"
Technical Details:
| Dimensions: | 98x50 mm |
| Net Weight: | 210 g |
| Weight incl. Packaging: | 0.261 kg |
| Barcode: | 4007529922802 |
| Technische Details s. Beschreibung | |
