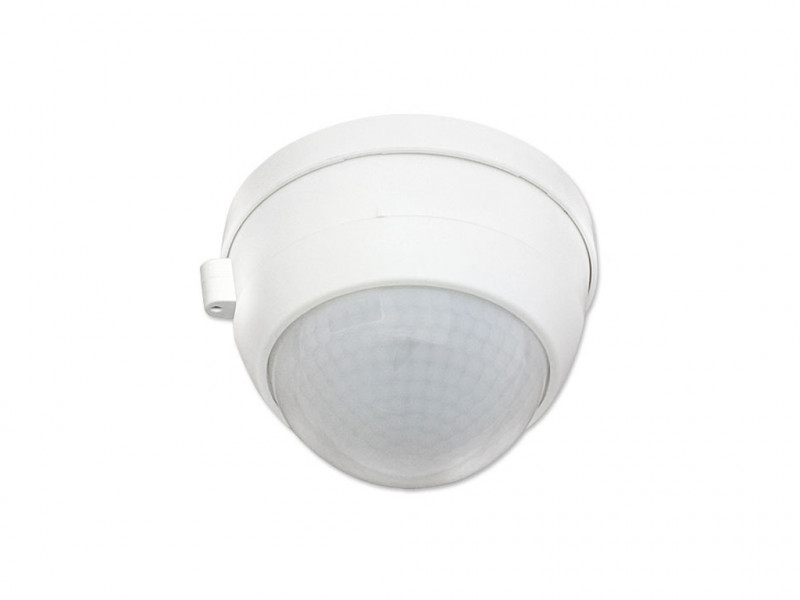

BEG LUXOMAT®net PD4-S-DAA4G-AP
Order number: 7000532
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : 7000532
- Dimensions: 103x76 mm
Dimensions
(ØxH) in mm
103x76
Art.-Nr.: 92759 Produktinformationen Slave-Gerät speziell... more
Product information "BEG LUXOMAT®net PD4-S-DAA4G-AP"
Art.-Nr.: 92759
Produktinformationen
- Slave-Gerät speziell für DALI-Kompaktsystem PD4-M-DAA4G
- Zur Erweiterung des Erfassungsbereiches eines Master-Gerätes PD4-M-DAA4G
- Schaltimpuls zum Master-Gerät bei erkannter Bewegung unabhängig von der Umgebungshelligkeit
- Automatischer Test-Betrieb über Master-Gerät
- Plug & Play - Keine Parametrierung erforderlich
- Einfache Montage
- Aufputz- oder Deckeneinbauversion verfügbar
- Einsatzbeispiele: Konferenz- und Klassenräume, Büros, Schulen, Universitäten
Technische Daten
Spannung:
22 V DC vom DALI-Bus
Abmessungen:
DE= Ø 98 x 96 mm
AP= Ø 103 x 76 mm

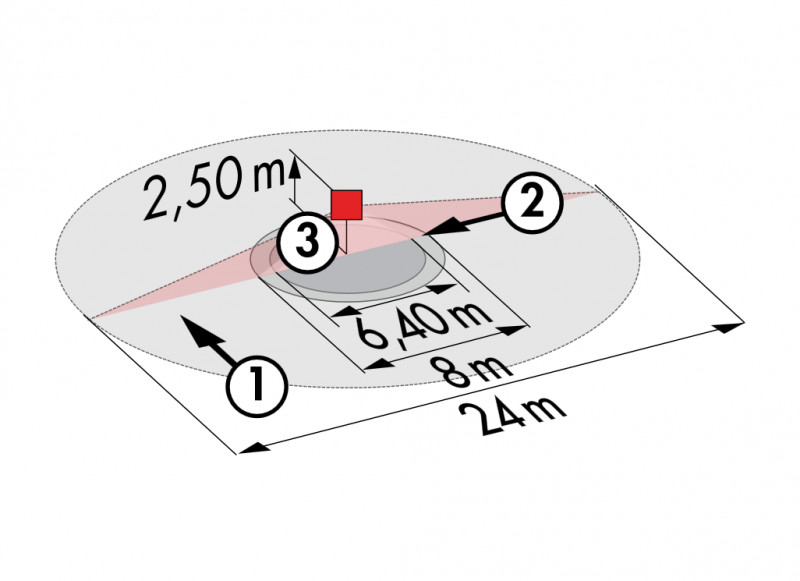

Erfassungsbereich:
vertikal 360°
Reichweite:
max. Ø 24 m quer
max. Ø 8 m frontal
max. Ø 6,4 m sitzende Tätigkeit
Überwachte Fläche bei tangentialer Bewegung:
450 m² / 2,5 m Montagehöhe
Schutzart/-klasse:
DE= IP20 / Klasse II
AP= IP54 / Klasse II
Umgebungstemperatur:
-25 °C bis +50 °C
Gehäuse:
Polycarbonat, UV-beständig
Maximal 4 Slaves in Kombination mit einem PD4-M-DAA4G
Ausgangsspannung:
22 V DC
Impulsabstand:
30 s (Im Testbetrieb 2 s für eine Dauer von 3 min)
Related links to "BEG LUXOMAT®net PD4-S-DAA4G-AP"
Technical Details:
Dimensions: | 103x76 mm |
Net Weight: | 267 g |
Weight incl. Packaging: | 0.261 kg |
Barcode: | 4007529927593 |
Technische Details s. Beschreibung |
