BEG Bewegungsmelder PD3N-1C-AP-Micro

BEG Bewegungsmelder PD3N-1C-AP-Micro
BEG Bewegungsmelder PD3N-1C-AP-Micro
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • 7000538
  • Dimensions: 106x53 mm


(ØxH) in mm

Part No. 92219   Product Information Remote control-capable ceiling... more
Product information "BEG Bewegungsmelder PD3N-1C-AP-Micro"
Part No. 92219
Product Information

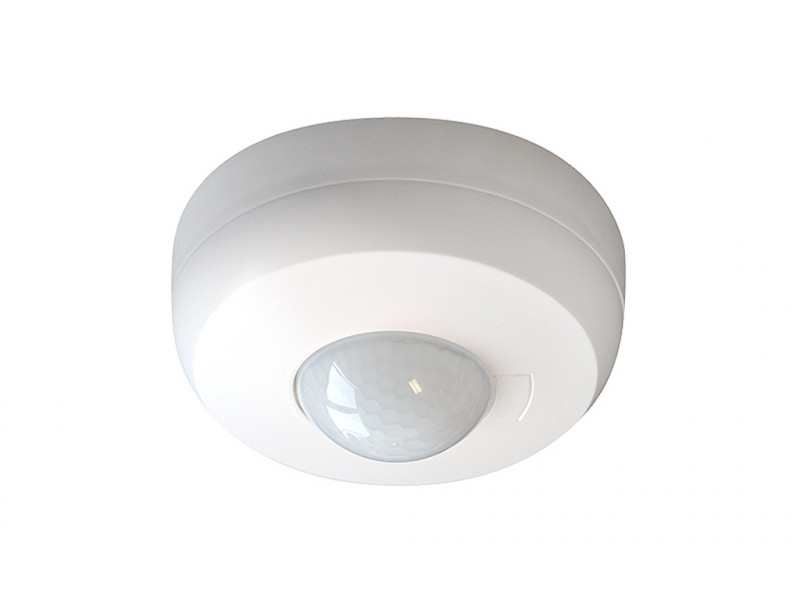

  • Remote control-capable ceiling motion detector with integrated acoustic sensor
  • One channel for light switching
  • Special optical system for detection of even the smallest movements
  • Manual switching via push-button possible
  • Additional functions can be set up using the optional remote control.
  • Typical applications: monitoring of smaller areas like stairwells, private garages, galleries, wash rooms
Technical Data
110 - 240 V AC 50 / 60 Hz
FC= Ø 83 x 81 mm
SM= Ø 106 x 53 mm
Power consumption:
approx. 0.5 W

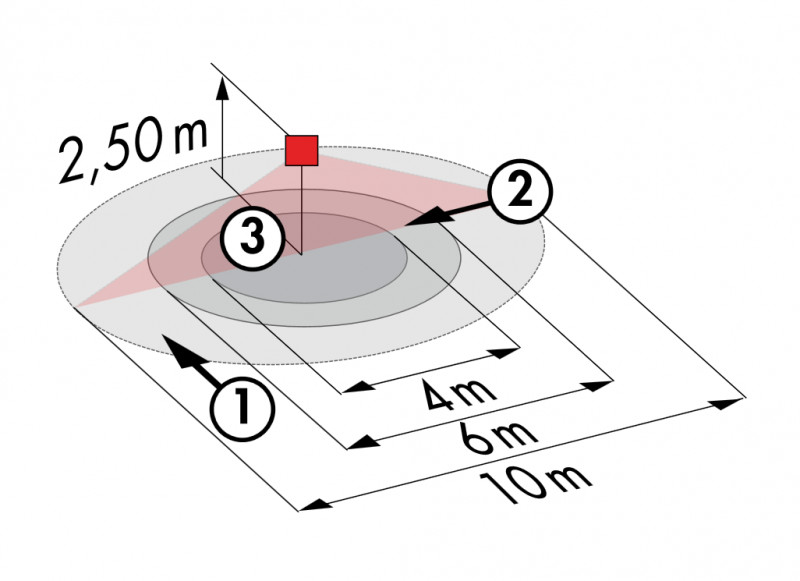

Detection area:
vertical 360°
max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m smaller movements
Monitored area (tangential movement):
79 m² / 2.5 m Mounting height
Mounting height
Degree / class of protection:
FC= IP23 / Class II
SM= IP44 / Class II
Ambient temperature:
-25 °C to +50 °C
Polycarbonate, UV-resistant
Channel 1 (lighting control) Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 μs) = 800 A
Type of contact:
1x μ-contact, NO contact with tungsten pre-make contact
Follow-up time:
30 sec - 30 min, Pulse
Switch-on threshold:
10 - 2000 Lux
Related links to "BEG Bewegungsmelder PD3N-1C-AP-Micro"
Technical Details:
Dimensions: 106x53 mm
Net Weight: 275 g
Weight incl. Packaging: 0.229 kg
Barcode: 4007529922192
Technische Details s. Beschreibung
