BEG Deckeneinbau Präsenzmelder PD4-S-DE
Order number: 7000587
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : 7000587
- Input Current: AC 110-240V, 50/60Hz
- Housing Color: white
- Dimensions: 97x103 mm
- Warranty: 2 years
mounting type
Dimensions
(ØxH) in mm
97x103
Warranty
2 years
Product Information Slave device detector with extended detection area For... more
Product information "BEG Deckeneinbau Präsenzmelder PD4-S-DE"
Product Information
- Slave device detector with extended detection area
- For extending the detection area of a Master device
- Trigger pulse to master device upon detected movement independent of the ambient light level
- Compatible with 230 V devices. Concerning exceptions please see the respective master device.
Typical applications: open-plan offices, conference rooms, classrooms/seminar rooms, staircases, small offices, sports halls/ storage rooms
Technical Data
- Voltage: 110 - 240 V AC 50 / 60 Hz
- Dimensions: FC= Ø 97 x 103 mm
- Power consumption: approx. 0.2 W
- Detection area: vertical 360°

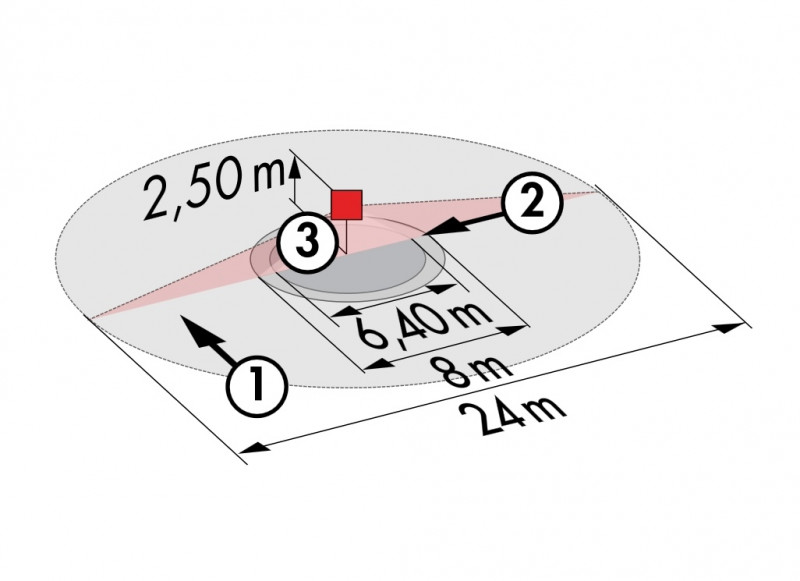

- Range:
max. Ø 24 m across
max. Ø 8 m towards
max. Ø 6.4 m seated
- Monitored area (tangential movement): 450 m² / 2.5 m Mounting height
- Mounting height min./max./recommended: 2m, 10m, 2,5m
- Degree / class of protection: FC= IP20 / Class II
- Ambient temperature: -25 °C to +50 °C
- Housing: Polycarbonate, UV-resistant
- outpuit voltage: 110 - 240 V AC
- Pulse interval: 2s or 9s
Related links to "BEG Deckeneinbau Präsenzmelder PD4-S-DE"
Technical Details:
| Input Current: | AC 110-240V, 50/60Hz |
| Input Lamp: | Terminal |
| Dimensions: | 97x103 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Housing Color | white |
| Housing Material: | PC |
| Special Feature of Housing: | Deckeneinbau recessed |
| Warranty | 2 years |
| Barcode: | 4007529922543 |
| Technische Details s. Beschreibung | |
| Präsenzsensor Slave Version für Master Sensor | |
