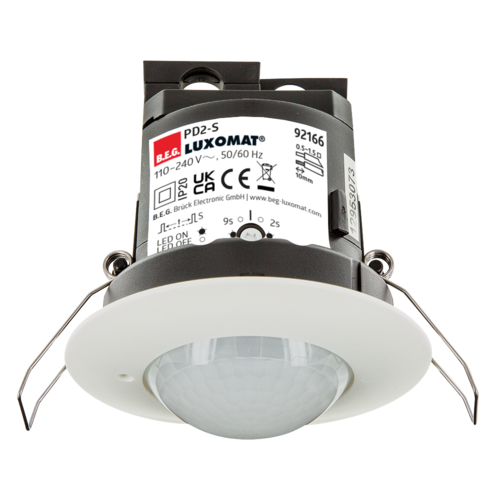

BEG Einbau Präsenzmelder PD2-S-DE
Order number: 7000592
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : 7000592
- Input Current: AC 220-240V, 50/60Hz
- IP Code: 20
- Housing Color: white
- Dimensions: 80x18 mm
- Cut-Out Dimensions: 64 mm
IP Code
IP 20

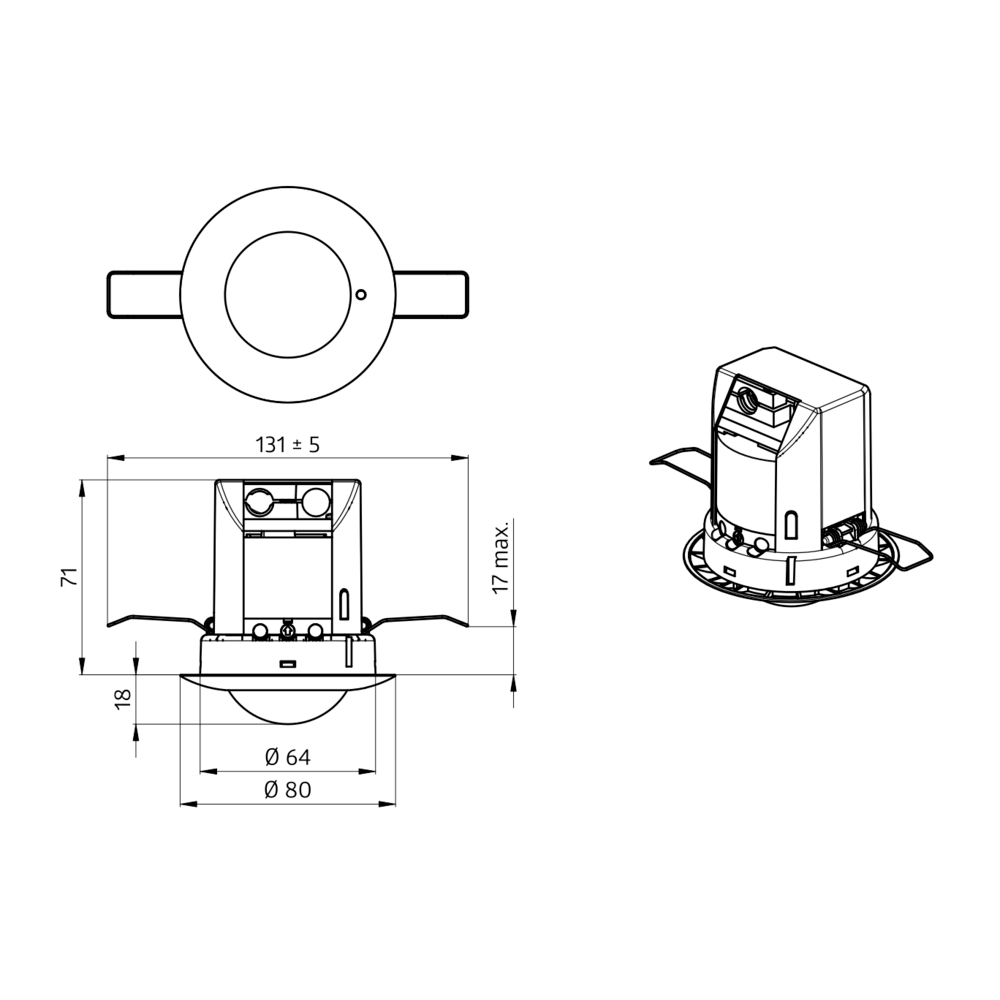

Dimensions
(ØxH) in mm
80x18
Part No. 92166 Product Information Slave device detector... more
Product information "BEG Einbau Präsenzmelder PD2-S-DE"
Part No. 92166
Product Information
- Slave device detector with circular detection area

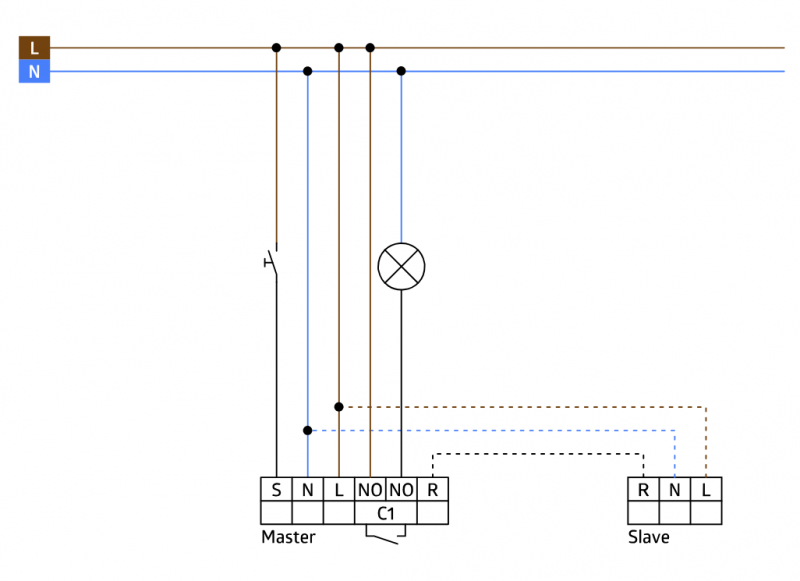

- For extending the detection area of a Master device
- Trigger pulse to master device upon detected movement independent of the ambient light level
- Compatible with all Master devices except: PD4-M-DS-FC, 11-48V units, PD9-M-SDB, PD4-M-DAA4G, Indoor 140-L, PD2N-M-1C-LED
- Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
Technical Data
Voltage:
110 - 240 V AC 50 / 60 Hz
Dimensions:
SM= Ø 98 x 50 mm
FM= Ø 98 x 65 mm
FC= Ø 80 x 85 mm
Power consumption:
approx. 0.2 W
Detection area:
vertical 360°

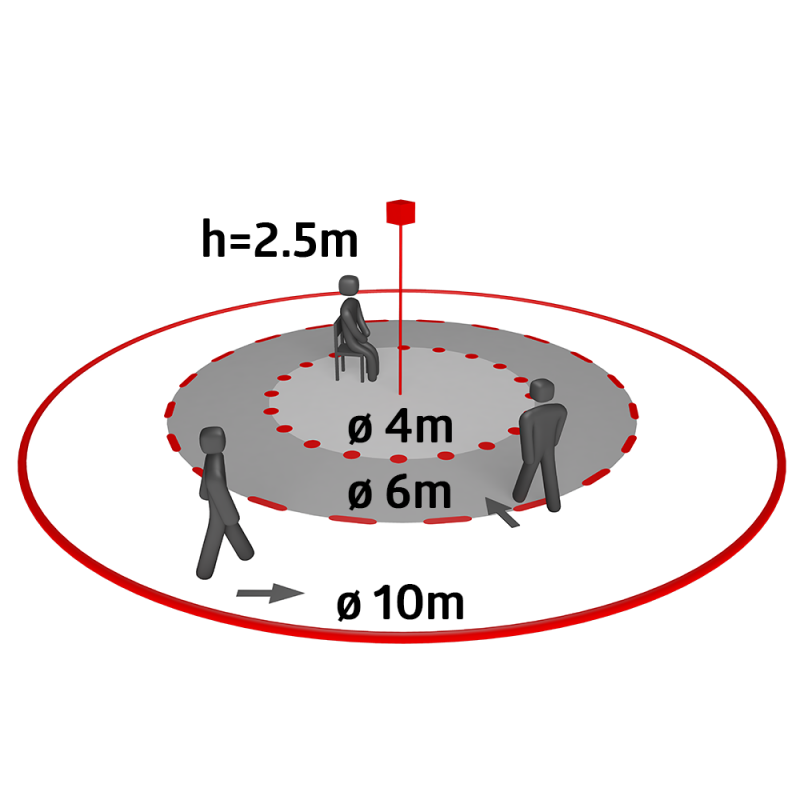

Range:
max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement):
79 m² / 2.5 m Mounting height
Mounting height min./max./recommended:
2 m / 5 m / 2.5 m
Degree / class of protection:
SM= IP20 / Class II
FM= IP20 / Class II
FC= IP20 / Class II
Ambient temperature:
-25 °C to +50 °C
Housing:
Polycarbonate, UV-resistant
Pulse interval:
2 or 9 sec
Related links to "BEG Einbau Präsenzmelder PD2-S-DE"
Technical Details:
| Input Current: | AC 220-240V, 50/60Hz |
| Dimensions: | 80x18 mm |
| Installation Depth: | 71 mm |
| Cut-Out Dimensions: | 64 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| IK Code: | 05 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9010 |
| Housing Material: | plastic |
| Special Feature of Housing: | Deckeneinbau |
| Barcode: | 4007529921669 |
| Technische Details s. Beschreibung | |
| Deckeneinbaugehäuse max. 10m Erfassungsbereich | |
