USB-C-IF/KNX REG grau
Order number: 7000612
Prices are only visible after login.
Availability: Delivery time 3-8 working days

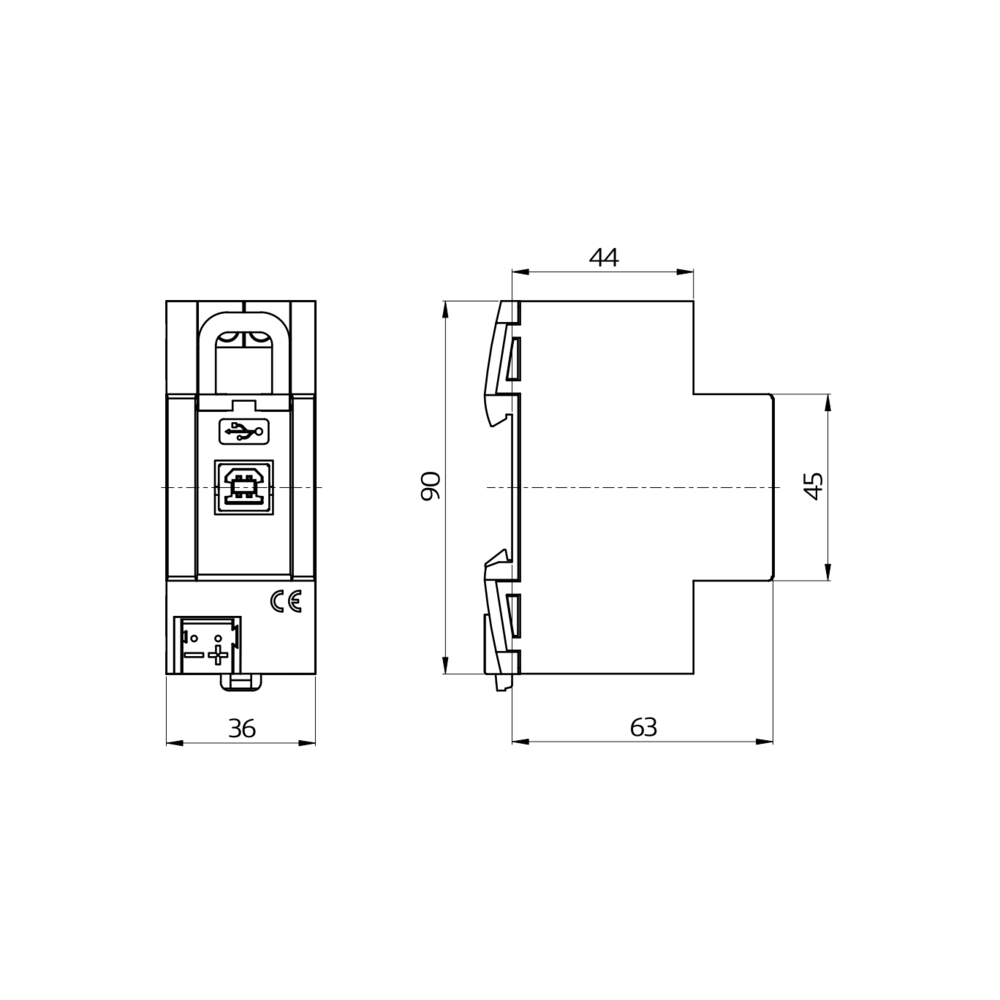

Dimensions
Short information
- Order number: : 7000612
- Dimensions: 90x18x55 mm
mounting type
Dimensions
(LxBxH) in mm
90x18x55
USB-C data interface and programming interface between PC/laptop and the KNX bus... more
Product information "USB-C-IF/KNX REG grau"
- USB-C data interface and programming interface between PC/laptop and the KNX bus
- Compact DIN rail mounting device with a width of just 18 mm (1 HP)
- Supports KNX long frames from ETS 5 onwards
- LED status indicators for USB and KNX bus
- Powered via KNX bus
Technical Data
- Voltage:via KNX BUS
- Dimensions:90 x 18 x 55 mm (1 TE)
- typ. power input:3 mA typical
- Power consumption:0.1 W
- Degree / class of protection:IP20 / Class III
- Ambient temperature:-5 °C to +45 °C
- Housing:Polycarbonate
- KNX TP 256:Yes
- Connections and wires:1 x KNX bus terminal (black/red), USB type C
Related links to "USB-C-IF/KNX REG grau"
Technical Details:
| Ambient Temperature (TA): | -25°C - 50°C |
| Dimensions: | 90x18x55 mm |
| Montageart: | surface mounted |
| Housing Material: | plastic |
| Technische Details s. Beschreibung |
