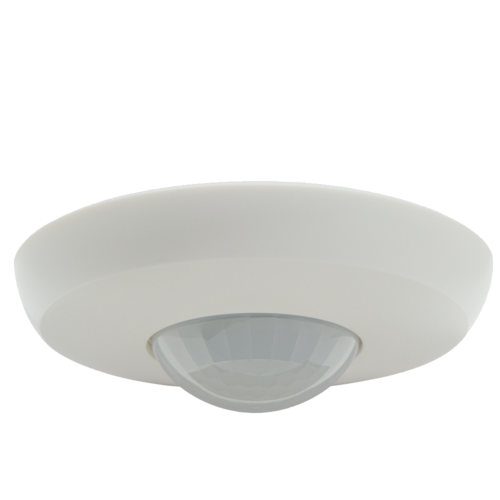

BEG Aufbau KNX-Präsenzmelder PD2N-KNXs-ST-UP
Order number: 7000616
Prices are only visible after login.
Availability: Delivery time 3-8 working days

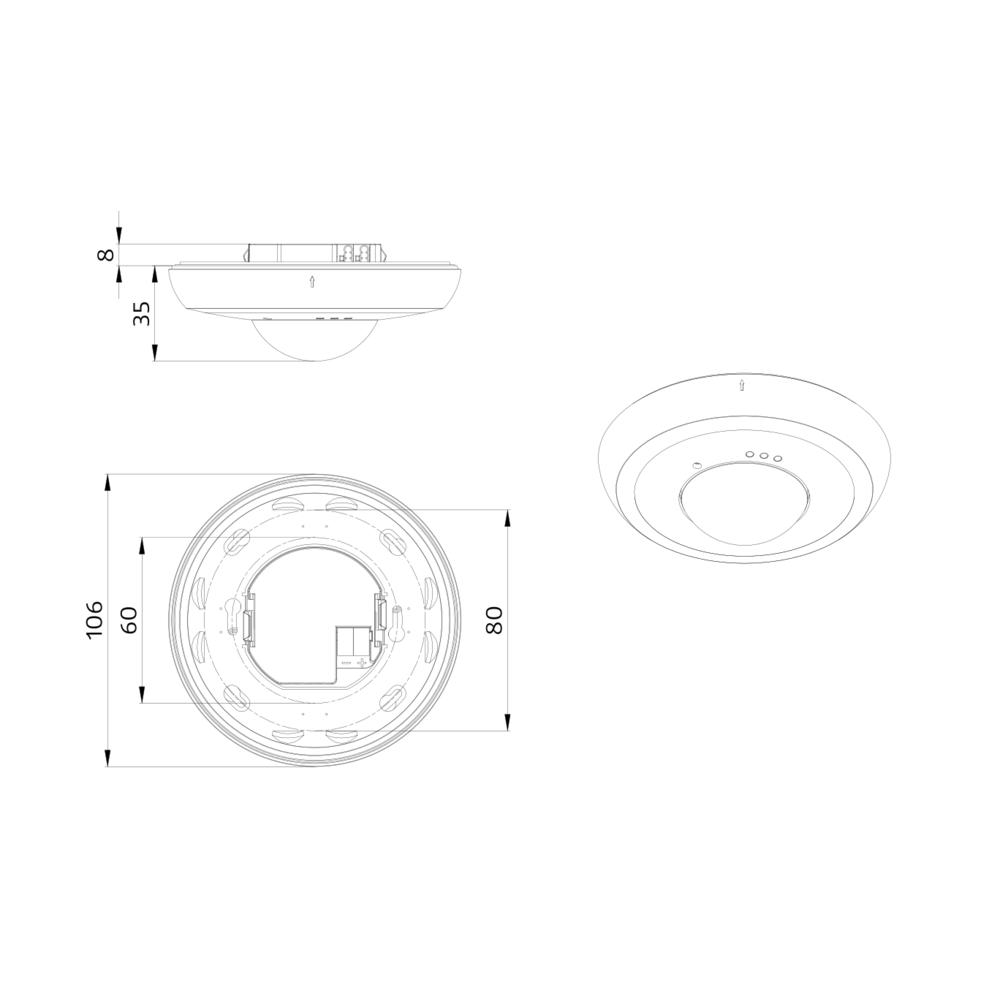

Dimensions
Short information
- Order number: : 7000616
- IP Code: 20
- Housing Color: white
- Dimensions: 106x42 mm
IP Code
IP 20
Dimensions
(ØxH) in mm
106x42
Part No. 93511 KNX occupancy detector with integrated KNX bus connector... more
Product information "BEG Aufbau KNX-Präsenzmelder PD2N-KNXs-ST-UP"
Part No. 93511
KNX occupancy detector with integrated KNX bus connector
KNX Secure ready
Parameterisation from ETS 5 for integration into KNX systems
Individual adaption of the PIR sensor sensitivity
Mixed light measurement using internal, external and remote (optional) light sensors
Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable)
Regulation of up to three lighting groups using offset (external influence possible)
Short presence, self-adjusting follow-up time, corridor function
Various locking functions
Soft-start
Recall of light scenes
Deactivatable status indicators
The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
Detection area can be extended thanks to master-slave-mode
Extensive optimization options for light measurement
Measured light value is communicated to the bus
Adaption of dimming curve
Bidirectionally remote control-capable with the IR adapter and the B.E.G. smartphone app
PIN code
IR remote control-capable via IR remote control (optionally)
Programming button (phys. address) can be operated via remote control
HVAC mode (0=automatic, 1=comfort, 2=stand-by, 3=economy, 4=antifreeze/heat protection)
Manual influence via external KNX push buttons possible
Function control (heartbeat, cyclical sending)
Forced switch-off
Intelligent central-off function
Premonition of switch-off
Burn-in function for fluorescent lamps selectable from 1h till 100h
Behaviour upon bus voltage return definable at choice
Variable safety pause after switching off the lights
Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
Related links to "BEG Aufbau KNX-Präsenzmelder PD2N-KNXs-ST-UP"
Technical Details:
| Dimensions: | 106x42 mm |
| IP Class: | 20 |
| IK Code: | 05 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9010 |
| Housing Material: | plastic |
| Barcode: | 4007529935116 |
| Technische Details s. Dokumente + Langtext | |
| Zubehör unter Art. Dokumente letzte Seite | |
