Order number: LG5993
Short information
- Order number: : LG5993
- Power Draw: 1 W
- Input Current: AC 220 - 240V, 50/60Hz
- IP Code: 65
- Housing Color: white
- Dimensions: 169x62x114 mm
- Warranty: 3 years
Power Draw
1 W
IP Code
IP 65
mounting type
Dimensions
(LxBxH) in mm
169x62x114
Warranty
3 years
Radar Motion Sensor Applications PIR motion sensor forLED luminaires.... more
Product information "BRI823-X-D-Z dimmbarer PIR Bewegungssensor für LED-Leuchten IP65"
Radar Motion Sensor
Applications
PIR motion sensor forLED luminaires.
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory
- Operation technology: PIR sensor
- Montagehöhe: 2,5 bis 12m

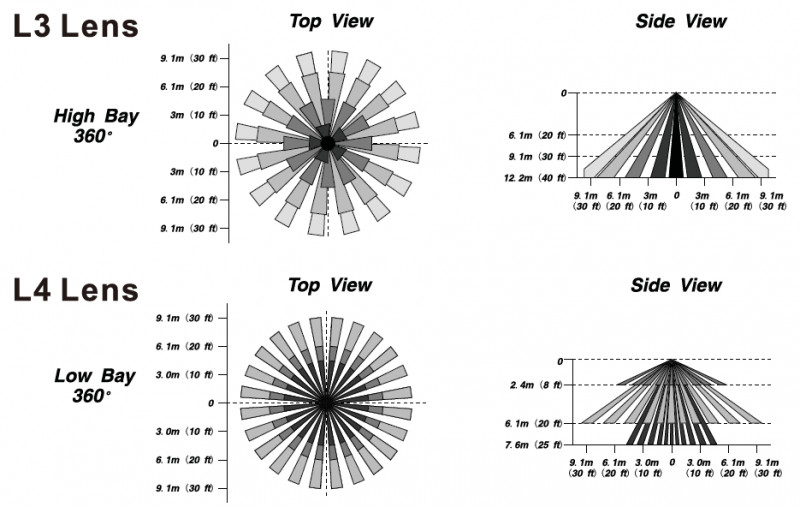

- Detection range: max. 2-18m
- Detection angle: 360° ceiling-
- Hold time: 10s ~ 30min (adjustable)
- Daylight threshold: 10~ 2000 Lux
- Standby power: 0,9W
- 0-10V Dimming
- controleable via remote RC100
other details refer to datasheet.
Related links to "BRI823-X-D-Z dimmbarer PIR Bewegungssensor für LED-Leuchten IP65"
Technical Details:
Dimmable: | |
Method of Dimming: | 1-10V |
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | 1 W |
Switching Cycles: | >10.000 |
Ambient Temperature (TA): | -20°C - 50°C |
Dimensions: | 169x62x114 mm |
Mounting: | Decke |
Montageart: | surface mounted |
IP Class: | 65 |
Housing Color | white |
Housing Material: | plastic ABS/PC |
Special Feature of Housing: | für Anbau an Leuchten |
Product Line: | ECO Line |
Warranty | 3 years |
Operating Hours: | >30.000 h |
Disposal Obligation: | |
Customs Tariff Number: | 8536500090 |
Certifications | CE,TÜV |
Barcode: | 4250557823621 |
weitere Infos: siehe Datenblatt des Herstellers | |
more details refer to datasheet of manufacturer | |
0-10V Dimmung/Dim PIR Sensor for Highbay |
