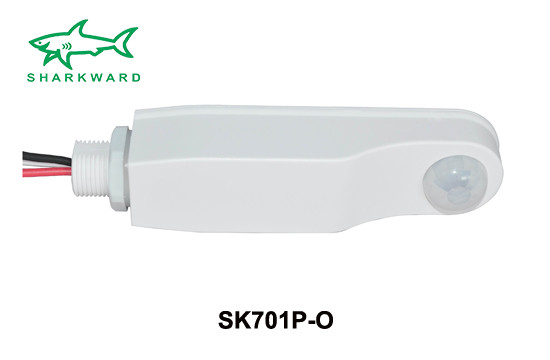

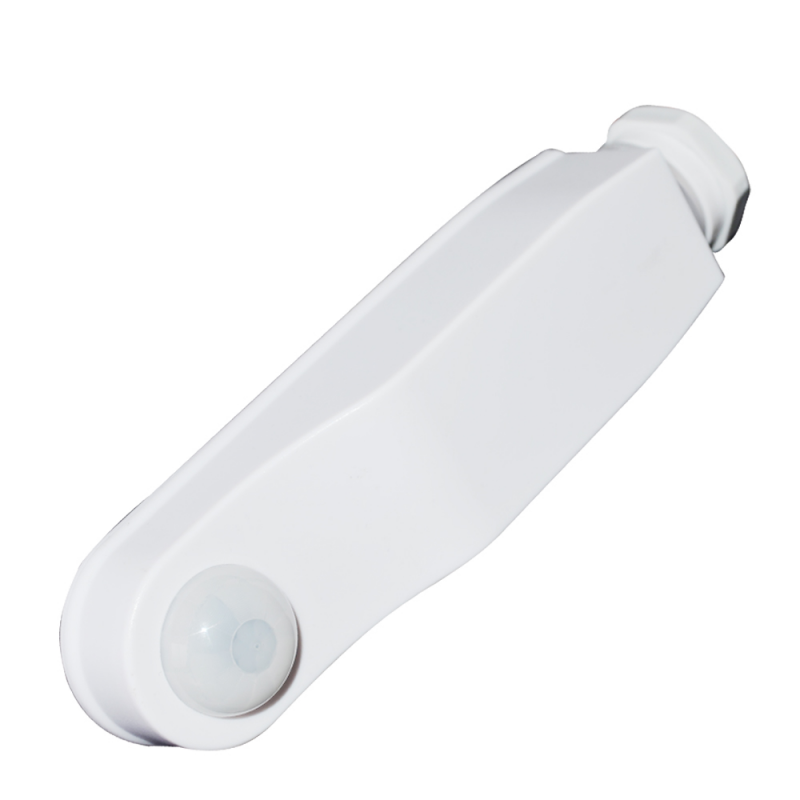

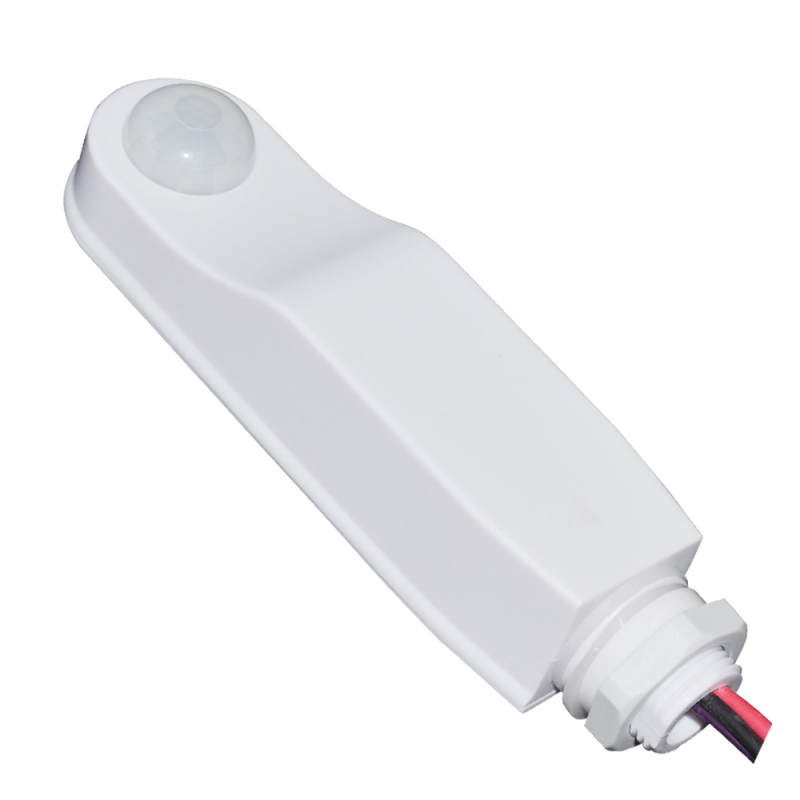

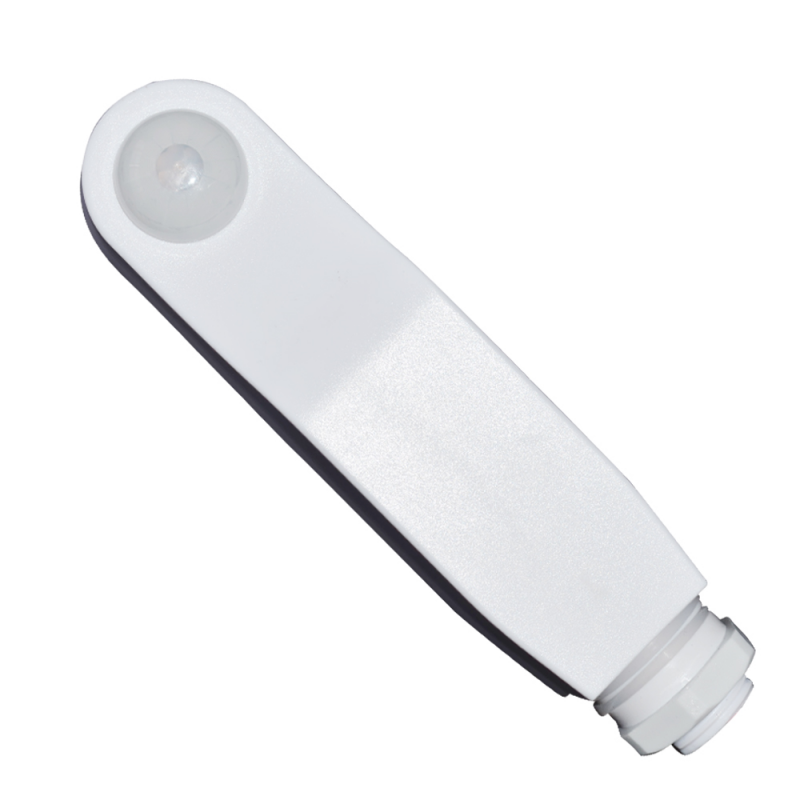

SK701P-O PIR-Bewegungssensor für LED-Feuchtraumleuchten IP65

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG5991
  • Power Draw: 1 W
  • Input Current: AC 220 - 240V, 50/60Hz
  • IP Code: 65
  • Housing Color: white
  • Dimensions: 147x33x35 mm
  • Warranty: 2 years

Power Draw

1 W

IP Code

IP 65

mounting type


(LxBxH) in mm


2 years

IR Motion Sensor for dampproof lights   Applications PIR motion sensor... more
Product information "SK701P-O PIR-Bewegungssensor für LED-Feuchtraumleuchten IP65"
IR Motion Sensor for dampproof lights
PIR motion sensor for triproof luminaires.
Perfect for the following applications:
  • work spaces, warehouse
  • WCs, walkways
  • outdoor under canopies
  • Operation technology: PIR
  • Montagehöhe: 2,5 bis 6m

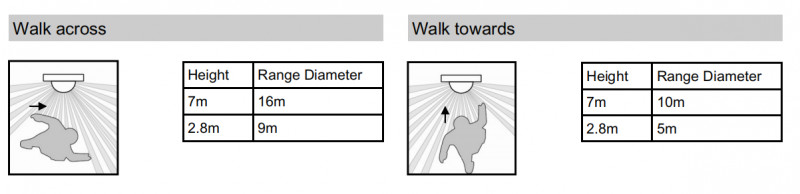

  • Detection range: max. 2-10m
  • Detection angle: 360° ceiling-
  • Hold time: 10s ~ 30min (adjustable)
  • Daylight threshold: 10~ 2000 Lux
  • Standby power: 0,8W
  • Erfassungsgeschwindigkeit: 0,6-1,5m/s
  • controleable via IR remote
other details refer to datasheet.
Related links to "SK701P-O PIR-Bewegungssensor für LED-Feuchtraumleuchten IP65"
Technical Details:
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 1 W
Switching Cycles: >10.000
Ambient Temperature (TA): -10°C - 35°C
Dimensions: 147x33x35 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 65
Housing Color white
Housing Material: plastic ABS/PC
Special Feature of Housing: für Anbau an Leuchten
Net Weight: 170 g
Weight incl. Packaging: 0.195 kg
Dimensions of Master Package: 161x60x60 mm
Product Line: ECO Line
Warranty 2 years
Operating Hours: >30.000 h
Disposal Obligation: ja
Customs Tariff Number: 8536500090
Certifications CE,TÜV
Barcode: 4250557823607
weitere Infos: siehe Datenblatt des Herstellers
more details refer to datasheet of manufacturer
