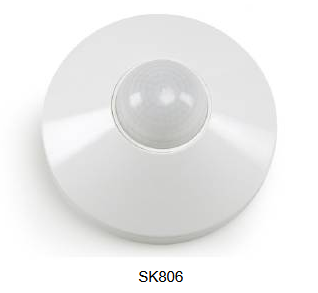

SK806RC DUAL Technology PIR Präsenzsensor mit Microphone

LG5989
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG5989
  • Power Draw: 1 W
  • Input Current: AC 120 - 277V, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 113x55 mm
  • Warranty: 2 years

Power Draw

1 W

IP Code

IP 20

mounting type

Dimensions

(ØxH) in mm
113x55

Warranty

2 years

IR Motion Sensor with microphone   Applications Dual Technology occupancy... more
Product information "SK806RC DUAL Technology PIR Präsenzsensor mit Microphone"
IR Motion Sensor with microphone

Applications
Dual Technology occupancy detector with on/off control suitable for indoor use.
This sensor can see people and hear them. As long one of the two signals can be detected the light will continue working.

Perfect for the following applications:
  • Office / Commercial Lighting
  • WCs, walkways
  • Classroom


  • Operation technology: PIR + microphone

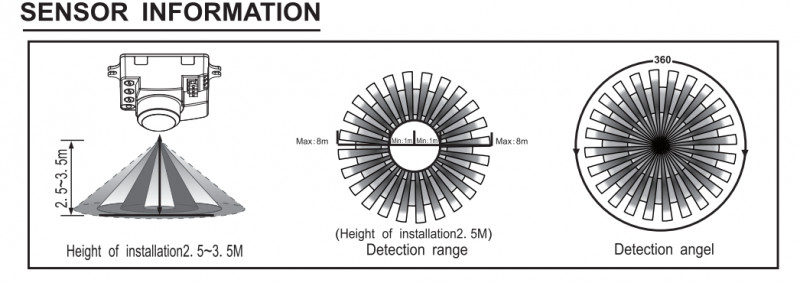

  • Montagehöhe: 2,5 bis 3,5m

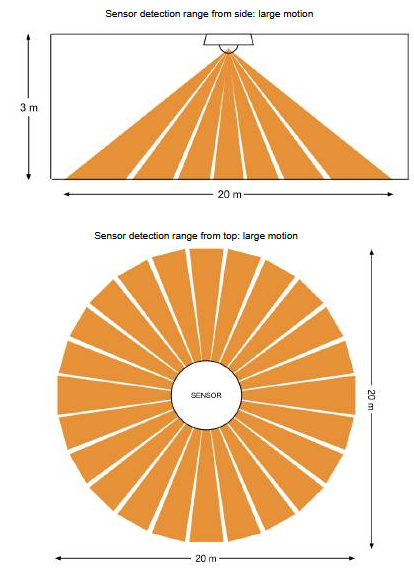

  • Detection range: max. 3-10m
  • Detection angle: 360° ceiling-
  • Hold time: 10s ~ 30min (adjustable)
  • Daylight threshold: 10~ 2000 Lux
  • Standby power: 0,5W
  • Erfassungsgeschwindigkeit: 0,6-1,5m/s

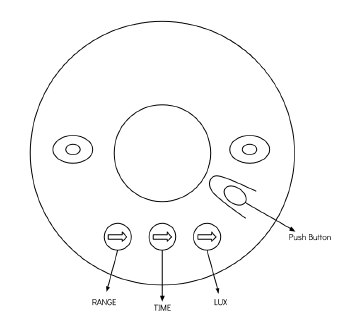

  • controleable via IR remote
  • Microphone detection can be switched off

other details refer to datasheet.
Related links to "SK806RC DUAL Technology PIR Präsenzsensor mit Microphone"
Technical Details:

Input Current: AC 120 - 277V, 50/60Hz
Power Consumption: 1 W
Switching Cycles: >10.000
Ambient Temperature (TA): -10°C - 40°C
Dimensions: 113x55 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: für Einbau in Leuchten
Net Weight: 151 g
Weight incl. Packaging: 0.191 kg
Product Line: ECO Line
Warranty 2 years
Operating Hours: >30.000 h
Disposal Obligation: ja
Customs Tariff Number: 8536500090
Certifications CE,TÜV
Barcode: 4250557823591
weitere Infos: siehe Datenblatt des Herstellers
more details refer to datasheet of manufacturer
