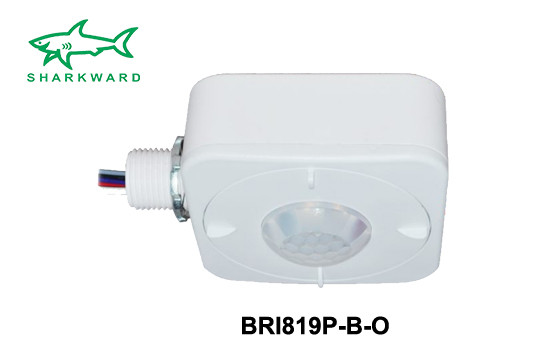

BRI819-B-O PIR-Bewegungssensor für LED-Leuchten IP20

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG5992
  • Power Draw: 1 W
  • Input Current: AC 220 - 240V, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Warranty: 3 years

Power Draw

1 W

IP Code

IP 20

mounting type


3 years

Radar Motion Sensor   Applications Microwave radar motion sensor for LED... more
Product information "BRI819-B-O PIR-Bewegungssensor für LED-Leuchten IP20"
Radar Motion Sensor
Microwave radar motion sensor for LED luminaires.
Perfect for the following applications:
  • work spaces, warehouse
  • WCs, walkways
  • factory
  • Operation technology:PIR Infrared
  • Montagehöhe: 2,5 bis 11m

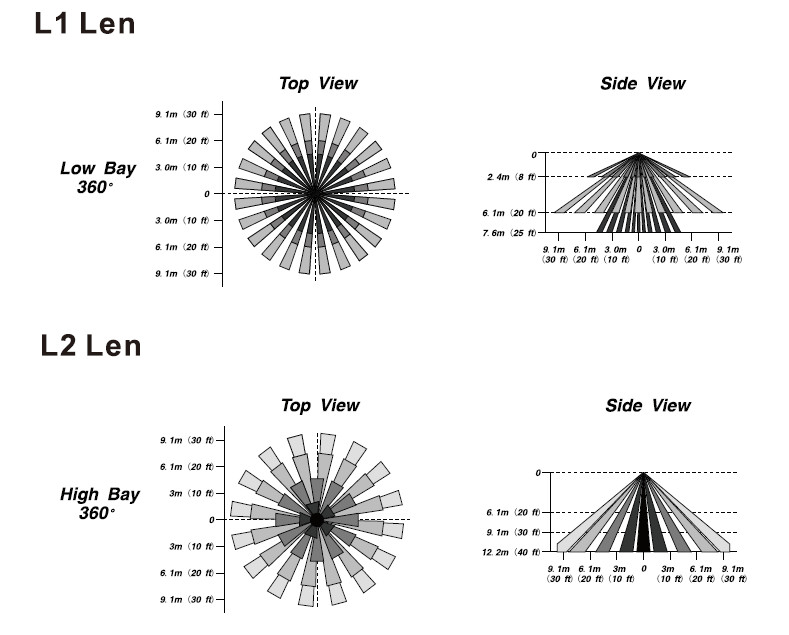

  • Detection range: max. 2-16m
  • Detection angle: 360° ceiling-
  • Hold time: 10s ~ 30min (adjustable)
  • Daylight threshold: 10~ 2000 Lux
  • Standby power: 0,5W
  • controleable via remote
other details refer to datasheet.
Related links to "BRI819-B-O PIR-Bewegungssensor für LED-Leuchten IP20"
Technical Details:
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 1 W
Switching Cycles: >10.000
Ambient Temperature (TA): -10°C - 35°C
Mounting: Decke
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic ABS/PC
Special Feature of Housing: für Anbau an Leuchten
Net Weight: 170 g
Weight incl. Packaging: 0.195 kg
Dimensions of Master Package: 95x50x125 mm
Product Line: ECO Line
Warranty 3 years
Operating Hours: >30.000 h
Disposal Obligation: ja
Customs Tariff Number: 8536500090
Certifications CE,TÜV
Barcode: 4250557823614
weitere Infos: siehe Datenblatt des Herstellers
more details refer to datasheet of manufacturer
