MWS-SK603 Einbaumicrowellensensor 5,8GHz

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG5988
  • Input Current: AC 220 - 240V, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 70x41x38 mm
  • Warranty: 2 years

IP Code

IP 20

ceiling, wall

mounting type


(LxBxH) in mm


2 years

Microwave Motion Sensor   Applications Motion detector with on/off control... more
Product information "MWS-SK603 Einbaumicrowellensensor 5,8GHz"
Microwave Motion Sensor
Motion detector with on/off control suitable for integrated indoor use.

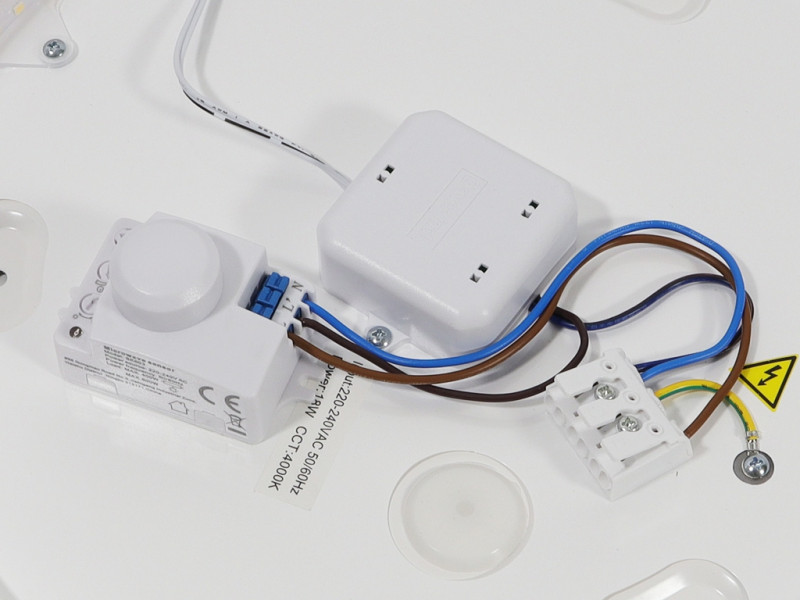

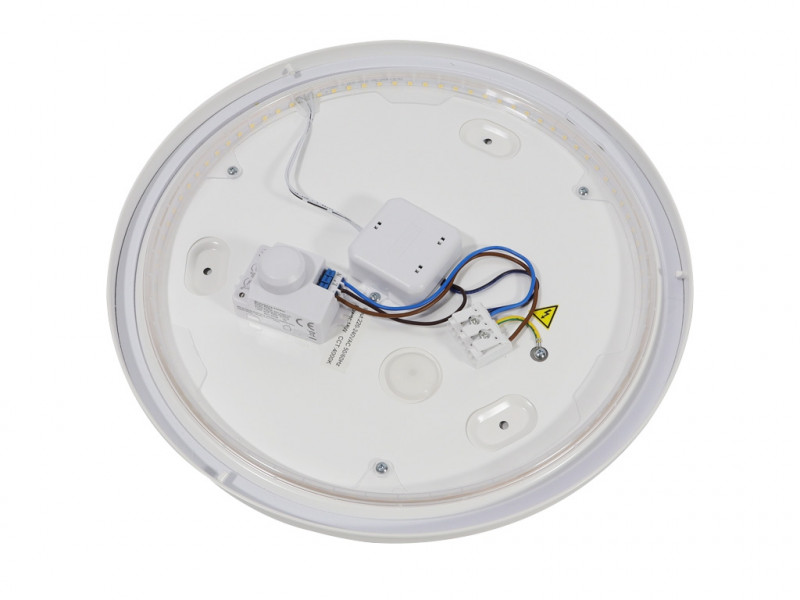

Suitable for building into fixtures:
  • Office / Commercial Lighting
  • Meeting room
  • Classroom
Use for new luminaire designs and installations
  • Operation frequency: 5,8GHz +/-75MHz
  • Transmission power: <0.2mW

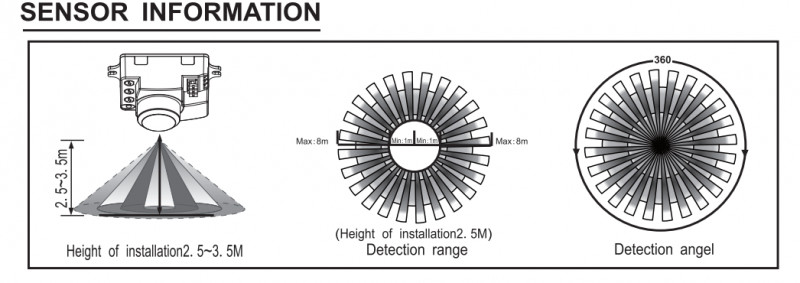

  • Detection range: max. 1-8m
  • Detection angle: 360° ceiling-150° wall
  • Hold time: 10s ~ 30min (adjustable)
  • Daylight threshold: 10~ 2000 Lux
  • Standby power: 0,5W
other details refer to datasheet.
Related links to "MWS-SK603 Einbaumicrowellensensor 5,8GHz"
Technical Details:
Input Current: AC 220 - 240V, 50/60Hz
Switching Cycles: >10.000
Ambient Temperature (TA): -15°C - 70°C
Dimensions: 70x41x38 mm
Mounting: ceiling,wall
Montageart: recessed
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: für Einbau in Leuchten
Net Weight: 44 g
Weight incl. Packaging: 0.057 kg
Product Line: ECO Line
Warranty 2 years
Operating Hours: >30.000 h
Disposal Obligation: ja
Customs Tariff Number: 8536500090
Certifications CE,TÜV
Barcode: 4250557823584
weitere Infos: siehe Datenblatt des Herstellers
more details refer to datasheet of manufacturer
