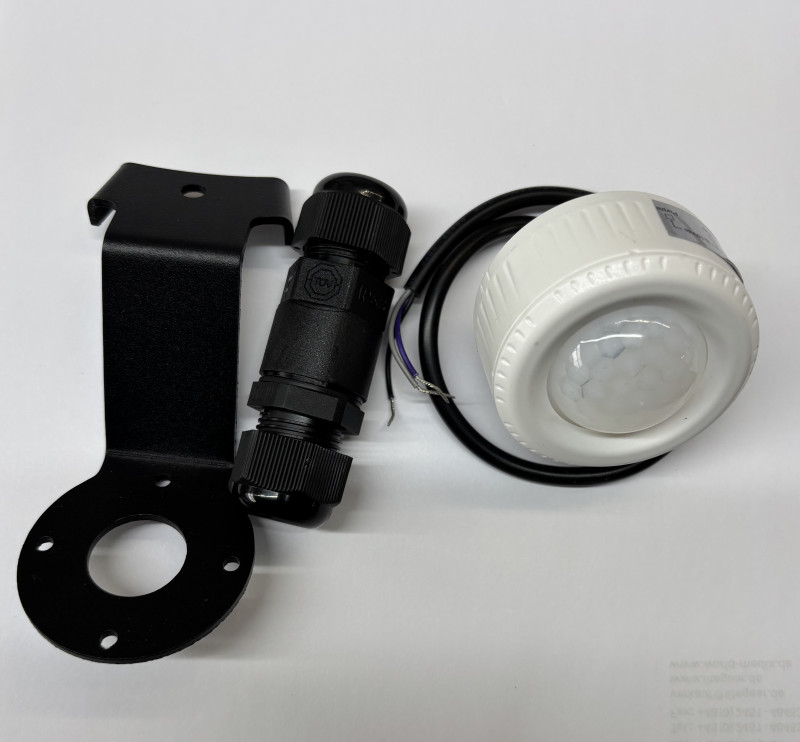

ANT 6-2 dimmbarer Highbay PIR Bewegungssensor für LED-Leuchten IP65
Order number: LG6038
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Radar Motion Sensor Applications PIR motion sensor forLED luminaires.... more
Product information "ANT 6-2 dimmbarer Highbay PIR Bewegungssensor für LED-Leuchten IP65"
Radar Motion Sensor
Applications
PIR motion sensor forLED luminaires.
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory
- Operation technology: PIR sensor
- Montagehöhe: 2,5 bis 12m

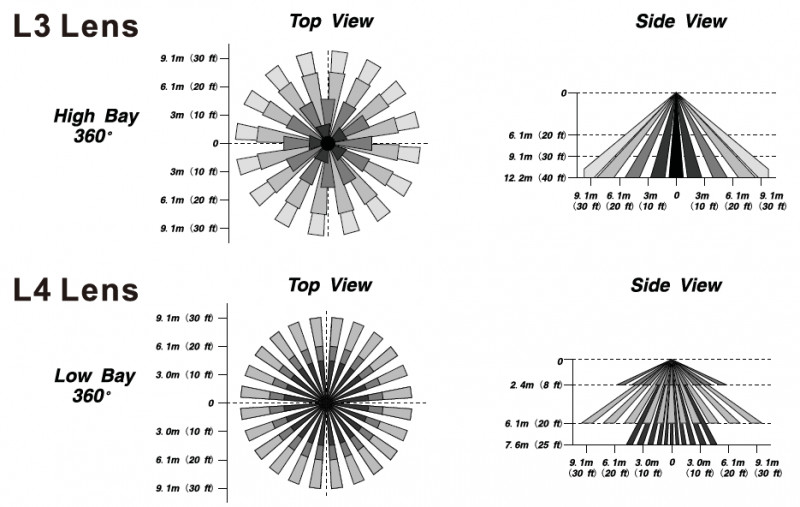

- Detection range: max. 2-18m
- Detection angle: 360° ceiling-

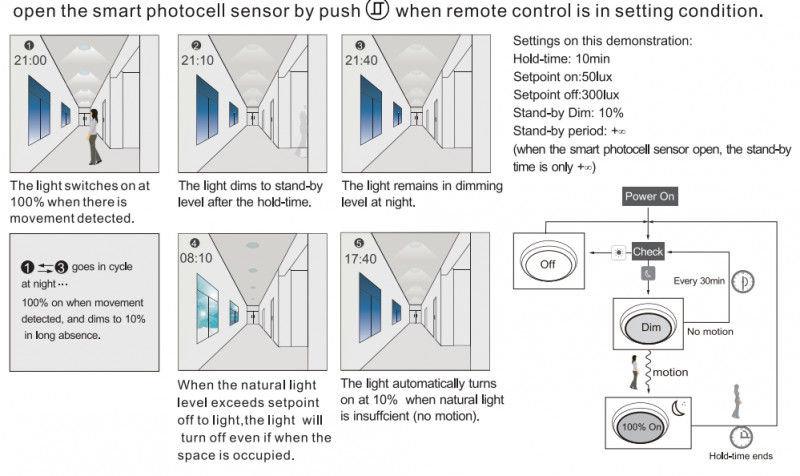

- Hold time: 10s ~ 30min (adjustable)
- Daylight threshold: 10~ 2000 Lux
- Standby power: 0,9W
- 0-10V Dimming

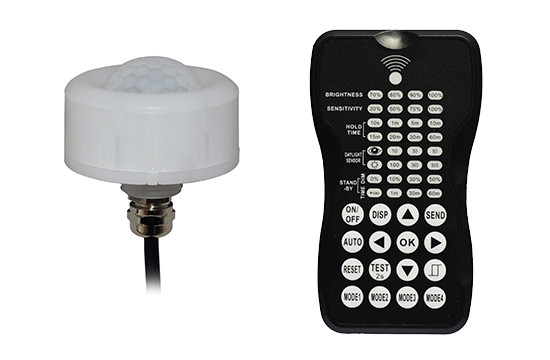

- controleable via remote RC100
other details refer to datasheet.
Related links to "ANT 6-2 dimmbarer Highbay PIR Bewegungssensor für LED-Leuchten IP65"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V |
| Input Current: | DC 12-24V |
| Power Consumption: | 1 W |
| Switching Cycles: | >10.000 |
| Ambient Temperature (TA): | -20°C - 50°C |

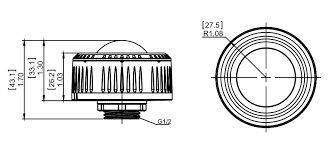

| Dimensions: | 55x43 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| Housing Color | white |
| Housing Material: | plastic ABS/PC |

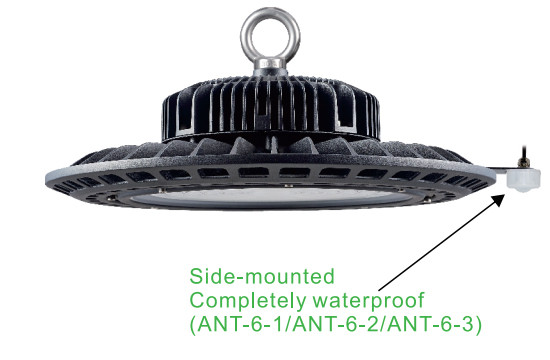

| Special Feature of Housing: | für Anbau an Leuchten |
| Net Weight: | 63 g |
| Weight incl. Packaging: | 0.073 kg |
| Content Master Package: | 100 |
| Dimensions of Master Package: | 500X275X2750 mm |
| Weight Master Package: | 8,0 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >30.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| weitere Infos: siehe Datenblatt des Herstellers | |
| more details refer to datasheet of manufacturer | |
| 0-10V Dimmung/Dim PIR Sensor for Highbay | |
