Wireless Bluetooth Mesh Zhaga Book 18 Sensor IP65 High Bay Linse
Order number: LG60705
Available soon
Prices are only visible after login. ![Dimensions]( "Dimensions")
Availability: Delivery time 3-8 working days
Dimensions
PIR Motion Sensor with wirelss Bluetooth Mesh Applications PIR... more
Product information "Wireless Bluetooth Mesh Zhaga Book 18 Sensor IP65 High Bay Linse"
PIR Motion Sensor with wirelss Bluetooth Mesh
Applications
PIR motion sensor forLED luminaires.

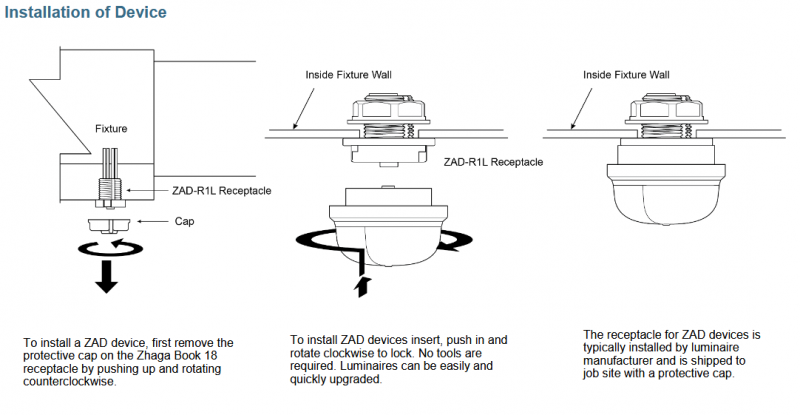

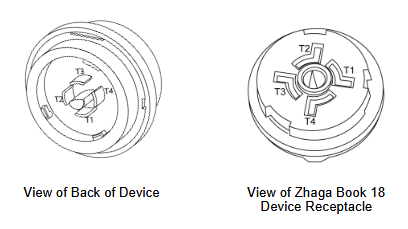

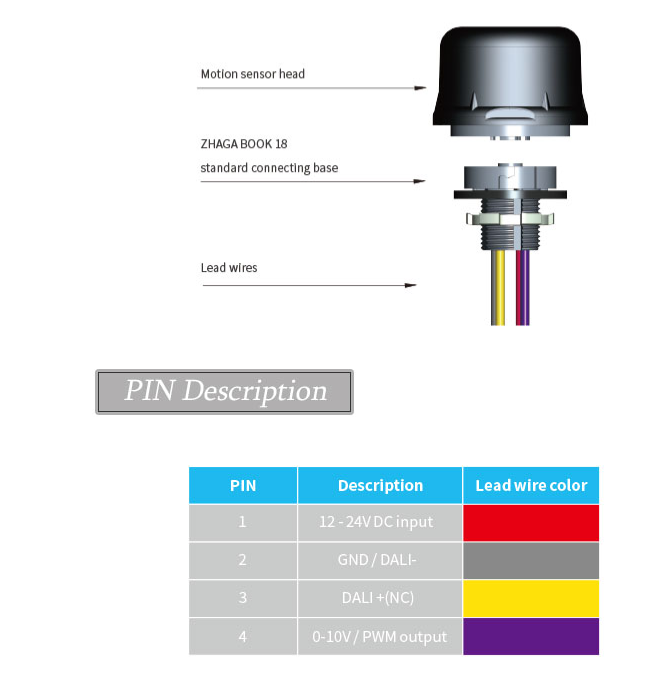

Zhaga Book 18 Sockel für Schnittstelle
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory
- Operation technology: PIR sensor
- Swarm Function within Mesh
- Montagehöhe: 6 bis 12m

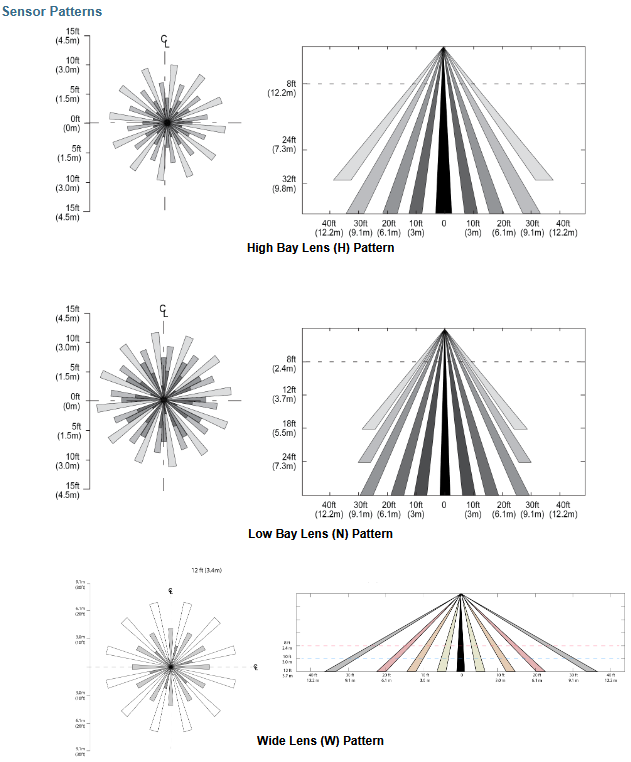

- Detection range: max. 9-24m
- Detection angle: 360° ceiling-
- Hold time: 10s ~ 30min (adjustable)
- Daylight threshold: 10~ 2000 Lux
- Standby power: 1W
- 0-10V Dimming
- Protocol: Meshle
- Steuerung via App
other details refer to datasheet.
Related links to "Wireless Bluetooth Mesh Zhaga Book 18 Sensor IP65 High Bay Linse"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V |
| Input Current: | DC 12-24V |
| Power Consumption: | 1 W |
| Output of Driver: | DC 0-10VV |
| Switching Cycles: | >10.000 |
| Ambient Temperature (TA): | -40°C - 70°C |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| Housing Color | grey |
| Housing Material: | plastic ABS/PC |
| Special Feature of Housing: | Für Highbay und Außenl. |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| weitere Infos: siehe Datenblatt des Herstellers | |
| more details refer to datasheet of manufacturer | |
| 0-10V Dimmung/Dim PIR Sensor for Highbay | |
| Bluetooth Mesh Network Swarmfunction | |
| max. 12m Installation height, max. 24m detection | |
