Highbay PIR Sensor Zhaga Book 18 IP65 GH
Order number: LG60701
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days

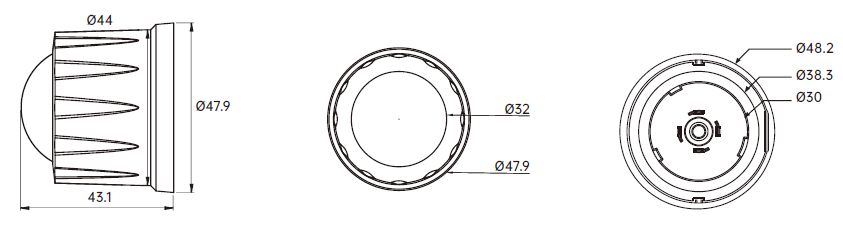

Dimensions
PIR Motion Sensor withZhaga Book 18 socket Applications PIR... more
Product information "Highbay PIR Sensor Zhaga Book 18 IP65 GH"

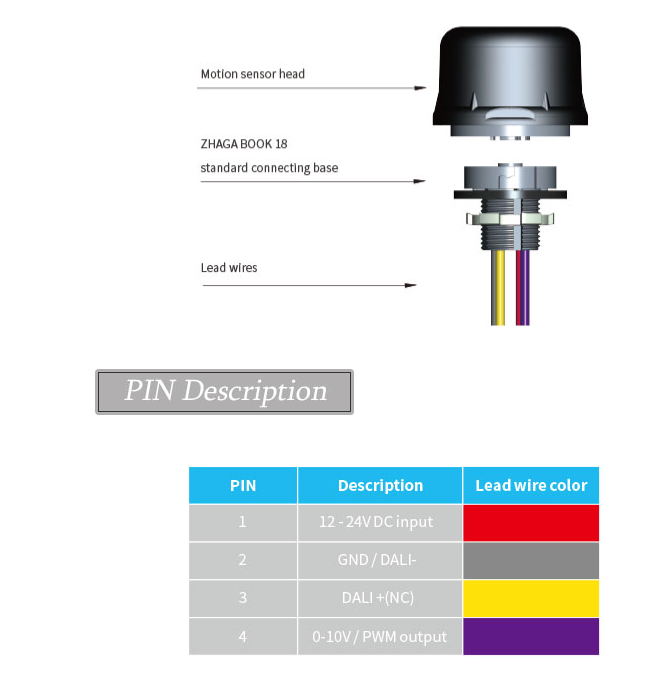

PIR Motion Sensor withZhaga Book 18 socket
Applications
PIR motion sensor forLED luminaires.
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory
- Operation technology: PIR sensor
- 12-24V 20mA consumption standby 0,5W
- Montagehöhe: 6 bis 12m

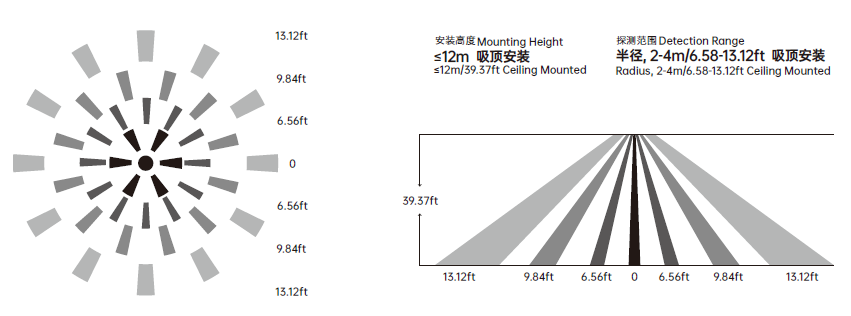

- Detection range: max. 4-8m
- Detection angle: 360° ceiling-
- Hold time: 5s ~ 30min (adjustable)
- Daylight threshold: 2~ 400 Lux
- Dimming: 0-100%

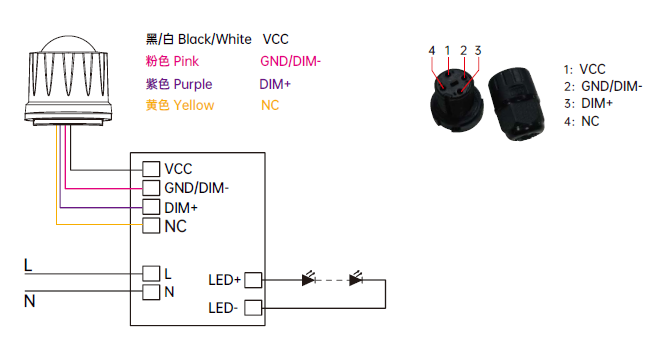

- 0-10V Dimming
- Orientierungslicht: 0s bis 60m/invinite 10-50%
- Steuerung via App
other details refer to datasheet.
Related links to "Highbay PIR Sensor Zhaga Book 18 IP65 GH"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V |
| Input Current: | DC 12V |
| Power Consumption: | 1 W |
| Output of Driver: | DC 0-10VV |
| Switching Cycles: | >10.000 |
| Ambient Temperature (TA): | -20°C - 60°C |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| Housing Color | grey |
| Housing Material: | plastic ABS/PC |
| Special Feature of Housing: | Für Highbay und Außenl. |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| Zhaga Book 18 Sensor max. 12m Höhe / 8m Erfassung | |
| more details refer to datasheet of manufacturer | |
| 0-10V Dimmung/Dim PIR Sensor for Highbay | |
| Orientation light function | |
| max. 12m Installation height, max. 8m detection | |
