Highbay PIR Sensor Zhaga Book 18 BLE 30m range, IP65 GH
Order number: LG60700
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
PIR Motion Sensor with wirelss Bluetooth Mesh Applications PIR... more
Product information "Highbay PIR Sensor Zhaga Book 18 BLE 30m range, IP65 GH"
PIR Motion Sensor with wirelss Bluetooth Mesh
Applications
PIR motion sensor forLED luminaires.

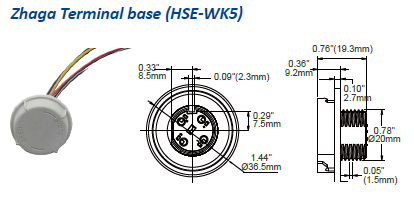

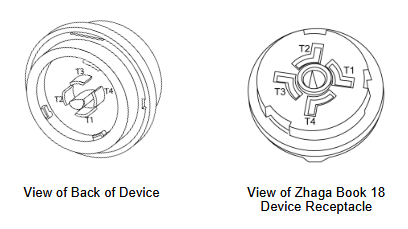

Zhaga Book 18 Sockel für Schnittstelle
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory
- Operation technology: PIR sensor
- 12-24V 20mA consumption standby 0,5W
- Swarm Function within Mesh
- Montagehöhe: 6 bis 15m

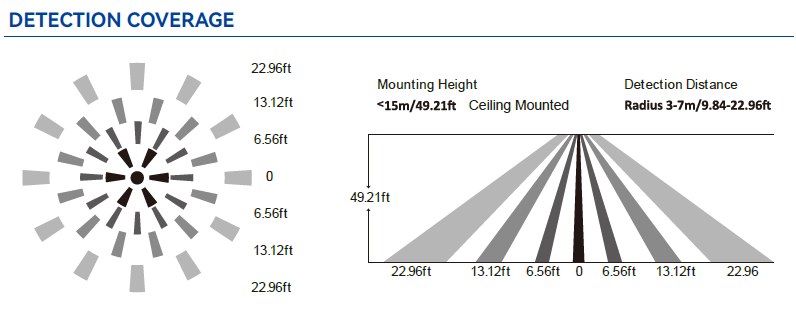

- Detection range: max. 6-14m
- Detection angle: 360° ceiling-
- Hold time: 5s ~ 1200min (adjustable)
- Daylight threshold: 50~ 2000 Lux
- Dimming: 0-100%
- Bluetooth 2,4GHz max. 30m distance
- Standby power: 1W
- 0-10V Dimming
- Protocol: Meshle

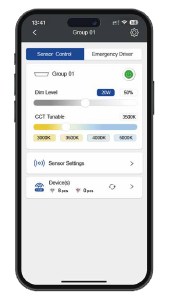

- Steuerung via App
other details refer to datasheet.
Related links to "Highbay PIR Sensor Zhaga Book 18 BLE 30m range, IP65 GH"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | 1-10V |
| Input Current: | DC 12V |
| Power Consumption: | 1 W |
| Output of Driver: | DC 0-10VV |
| Switching Cycles: | >10.000 |
| Ambient Temperature (TA): | -20°C - 60°C |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| Housing Color | grey |
| Housing Material: | plastic ABS/PC |
| Special Feature of Housing: | Für Highbay und Außenl. |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| Zhaga Book 18 Sensor Bluetooth Mesh max. 30m | |
| more details refer to datasheet of manufacturer | |
| 0-10V Dimmung/Dim PIR Sensor for Highbay | |
| Bluetooth Mesh Network 2,4GHz | |
| max. 15m Installation height, max. 14m detection | |
