Wireless Bluetooth Mesh 2,4GHz Zhaga Book Integrated DIM Sensor ANT4E-6, IP67
Order number: LG60706
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Meshle PIR Motion Sensor with wirelss Bluetooth Mesh 2,4GHz for CUPower Sky driver... more
Product information "Wireless Bluetooth Mesh 2,4GHz Zhaga Book Integrated DIM Sensor ANT4E-6, IP67"
Meshle PIR Motion Sensor with wirelss Bluetooth Mesh 2,4GHz
for CUPower Sky driver
IP65 PIR motion sensor forLED luminaires.
Recessed integration in fals eceilings or housings in-/outdoor
Zhaga Book Schnittstelle zum Treiber
Perfect for the following applications:
- work spaces, warehouse
- WCs, walkways
- factory, office
- Operation technology: PIR sensor
- Swarm Function within Mesh
- Montagehöhe: 2m bis 3,6m
- Detection range: max. 4-8m
- Detection angle: 360° ceiling-
- Hold time: adjustable via App
- Daylight threshold: adjustable via App
- Standby power: 0,5W
- Zhaga Dimming connector 3,3V DC >50mA
- Protocol: Meshle
- Supports UART-based communication with CUPower Sky drivers
- Steuerung via App
other details refer to datasheet.
Related links to "Wireless Bluetooth Mesh 2,4GHz Zhaga Book Integrated DIM Sensor ANT4E-6, IP67"
Technical Details:
| Beam Angle: | 360 ° |
| Dimmable: |  |
| Method of Dimming: | Bluetooth |
| Input Current: | DC 3,3V, 50mAmA |
| Power Consumption: | 1 W |
| Switching Cycles: | >25.000 |
| Ambient Temperature (TA): | -20°C - 60°C |
| Storage Temperature: | -40°C - 70°C |

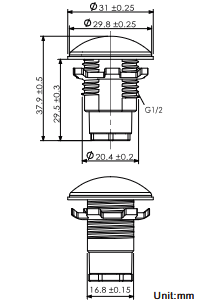

| Dimensions: | 31x38 mm |
| Cut-Out Dimensions: | 20,4 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 67 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Einbausensor BT Mesh 2,4G |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >40.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8536500090 |
| Certifications | CE |
| weitere Infos: siehe Datenblatt des Herstellers | |
| more details refer to datasheet of manufacturer | |
| Bluetooth Mesh Dimmung/Dim PIR Sensor f. Luminairy | |
| Meshle Bluetooth Mesh Network Swarmfunction max50m | |
| max. 3,6m Installation height, max. 8m detection | |
