Wireless Bluetooth Mesh 2,4GHz Meshle Gateway with Matter Connectivity
Order number: LG60720
Available from 08/2026
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
MESHLE Gateway - Wi-Fi - Bluetooth Mesh Gateway with Matter Connectivity ... more
Product information "Wireless Bluetooth Mesh 2,4GHz Meshle Gateway with Matter Connectivity"
MESHLE Gateway - Wi-Fi - Bluetooth Mesh Gateway with Matter Connectivity

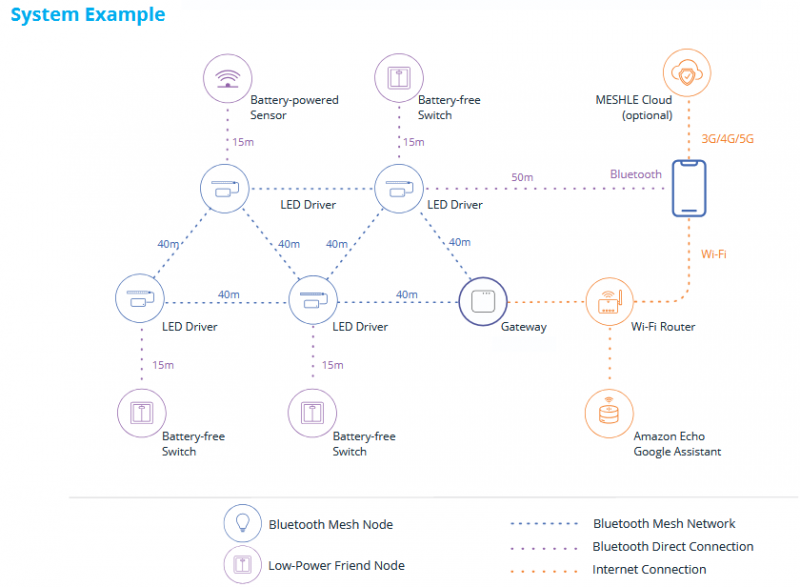

The product is a Wi-Fi to Bluetooth Mesh Bridge designed for bidirectional communication. It serves as a conduit between Wi-Fi networks and Bluetooth Mesh networks, enabling seamless integration and management within smart environments.
Key Features:
• Wi-Fi to Bluetooth Mesh Bridge for bidirectional communication
• Simple configuration of the Wi-Fi credentials via Bluetooth
• Works as a regular Bluetooth Mesh node, relaying all mesh commands into the mesh network and LAN
• Secure communication - all communication is encrypted for both Wi-Fi and Bluetooth Mesh
• Multiple gateways with different cloud accounts can be installed in the same Bluetooth Mesh network

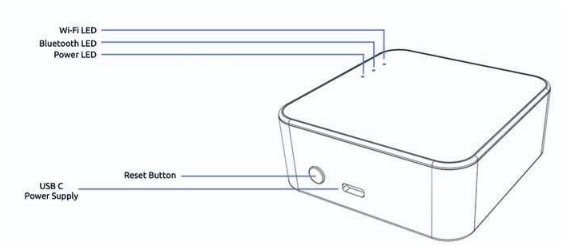

• Three LEDs for connection status identification
• USB-C power supply
• Communication with MESHLE Cloud (Germany) or local network via IP address
- Reset Knop: 1
- Bluetooth: 8017A-MD-BT50Q
- Eingangsstrom: max. 1A
- Eingangspannung: 5V DC
- Eingebaute Antenne
- WiFi: Wi-Fi 802.11 b/g/n, Bluetooth - single point / -mesh
Related links to "Wireless Bluetooth Mesh 2,4GHz Meshle Gateway with Matter Connectivity"
Technical Details:
| Method of Dimming: | Bluetooth |
| Input Current: | DC 5V, 1000mA |
| Ambient Temperature (TA): | -10°C - 55°C |
| Storage Temperature: | -20°C - 55°C |

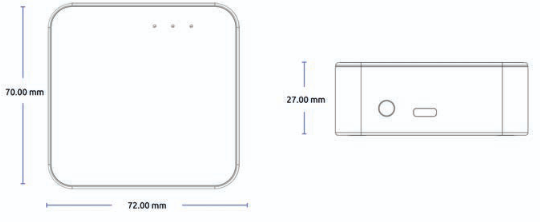

| Dimensions: | 72x70x27 mm |
| Mounting: | Wand |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | USB C |
| Product Line: | Premio Line |
| Warranty | 3 years |
| Disposal Obligation: |  |
| Certifications | CE |
| BT Gateway 2,4GHz f. Meshle App Mesh | |
