Alwetra 1500 50-860-6750LM Wide Flood DALI DIM
Order number: LG32107DA
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG32107DA
- Luminous Flux: 6750 lm
- Power Draw: 50 W
- Light Color: daylight (6000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD
- Housing Color: white

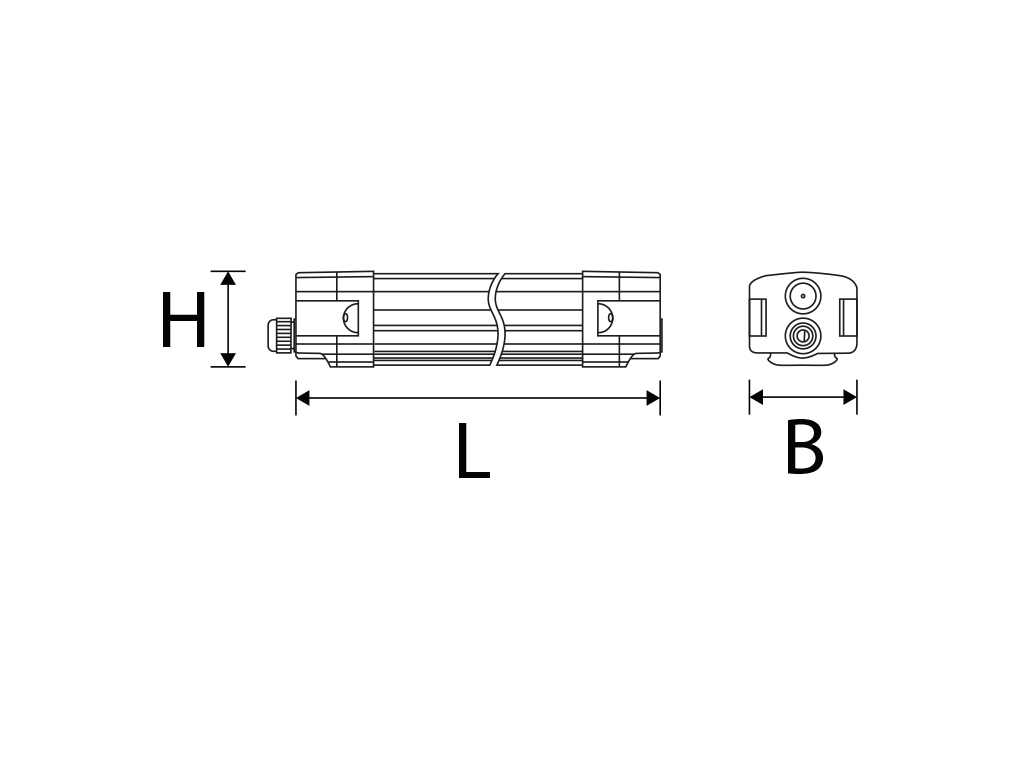

- Dimensions: 1502x85x72 mm
- Warranty: 5 years
Modular, weatherproof LED linear light system Alwetra is a dustproof and... more
Product information "Alwetra 1500 50-860-6750LM Wide Flood DALI DIM"

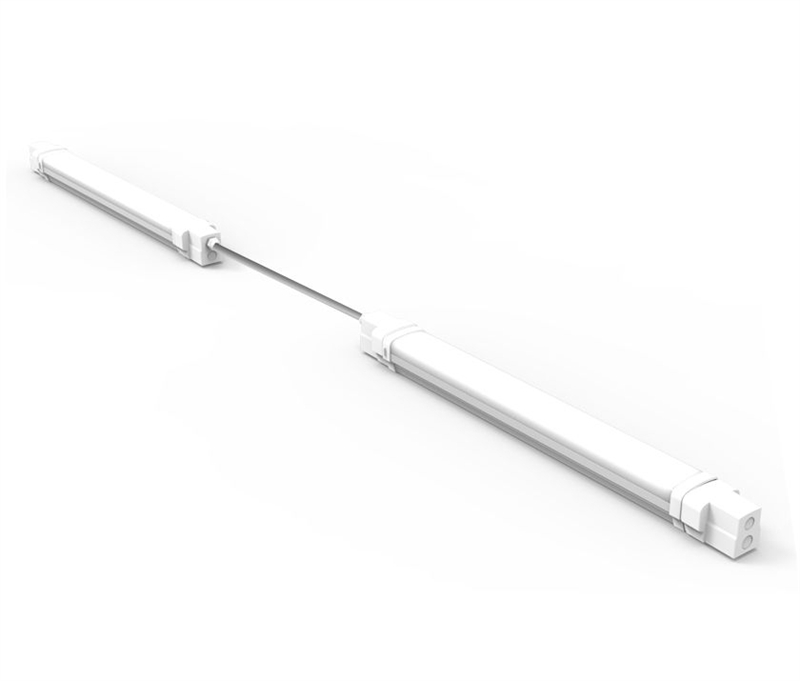

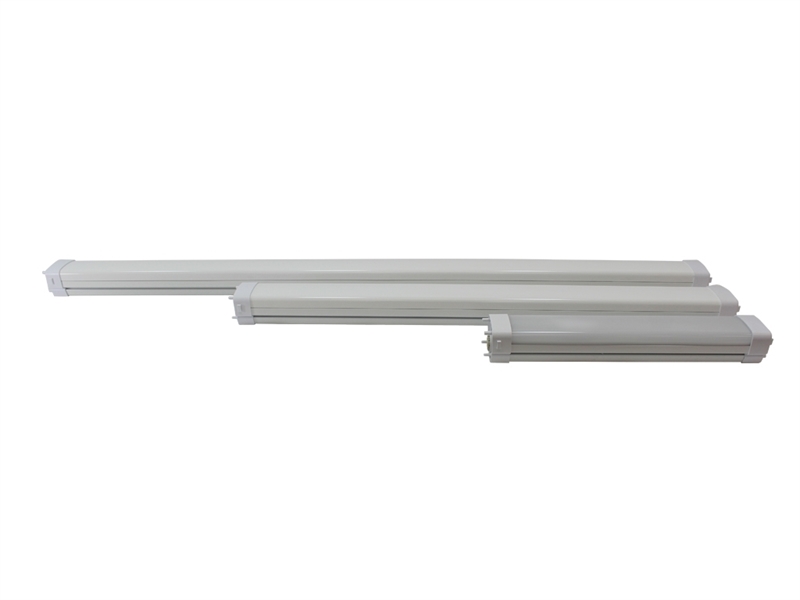

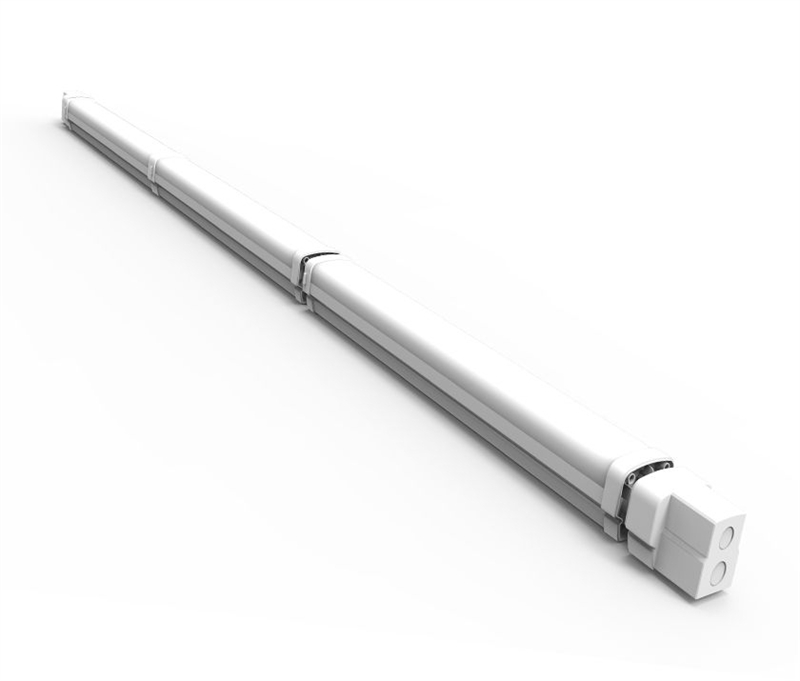

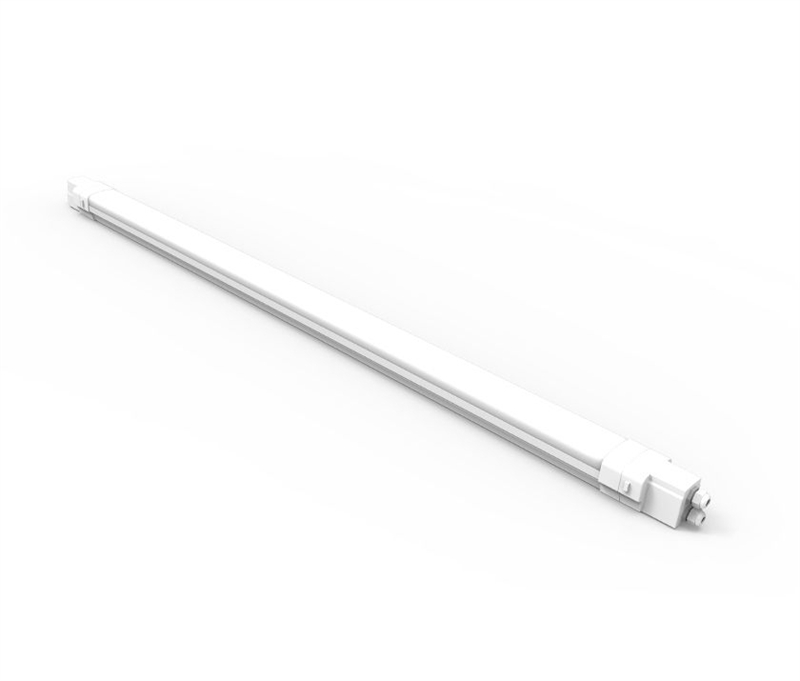

Modular, weatherproof LED linear light system
Alwetra is a dustproof and splash-proof IP65, LED strip lighting system for use in wet rooms or outdoors under canopies. The system consists of luminaire modules with selectable output power 30-47W by means of small DIP switches and external dimming via an analog 1-10V signal. The feed in takes place via connectors and a seven-wire through-wiring. By means of a toggle switch, one of the three current phases can be selected, thus the luminaires can be switched on and off in groups as needed. In just a few seconds, two luminaire modules or luminaires and blank modules can be connected without tools. For weatherproof infeed, we have matching feed in boxes and suitable end caps. For permanent stabilization, the modules are additionally mechanically connected with a steel clamp. Mounting clips are attached for mounting on ceilings and can also be used with a hook to suspend the system on steel ropes or chains. Optionally, we will also offer battery-operated emergency lighting modules and sensor modules.
Highlights:
- Impact-resistant and weatherproof design: IP65 / IK10
- Internal through-wiring: 5 x 2.5mm² and 2 x 1.5mm² for digital dimming over DALI

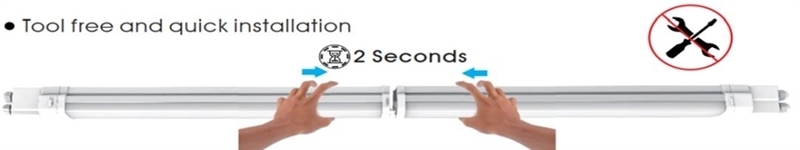

- fast, almost tool-free installation
- high system efficiency:> 130 lumens / watt
- Alwetra is ideal replacement for one to two times 58W T8 (and 49W/T5) fluorescent tubes with 50% power saving
- long life 50,000h and low maintenance costs
- motion and daylight dimming controllable by external sensors
Applications:
- industry and food production
- Waste recycling with high dust load
- joineries, car washes
- Outdoors under canopies or loading zones
- cold stores and greenhouses
Related links to "Alwetra 1500 50-860-6750LM Wide Flood DALI DIM"
Technical Details:
| Luminous Flux: | 6750 lm |
| LED Output: | 48 W |
| Light Yield: | 135 lm/W |
| Light Temperature: | 6000 K |
| Light Color: | daylight |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip: | SMD |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 50 W |
| Contains Driver: | |
| Driver Manufacturer: | Osram |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1502x85x72 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 10 |
| Housing Color | white |
| Housing Material: | Aluminium+PC |
| Special Feature of Housing: | polycarbonate |
| Cover: | opal |
| Net Weight: | 2420 g |
| Weight incl. Packaging: | 2.7 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1620x250x300 mm |
| Weight Master Package: | 16,2 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 940514090 |
| Certifications | CE,LM80 |
| Barcode: | 4250557820651 |
| Einfache, und schnelle Montage, In/Out | |
| optionale Batterienotlichtmodule lieferbar | |
| Phasenwahl: L1-L3 (7 wire) | |
| dimmbare Version: Dali | |
| optional auch mediums Bewegungsmelder steuerbar | |
Modulares LED-Lichtbandsystem mit hoher Schutzart IP65 für den Einsatz in Feuchträumen more
Modulares LED-Lichtbandsystem mit hoher Schutzart IP65 für den Einsatz in Feuchträumen
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 6750 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 135 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 1502x85x72 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium+PC
Abdeckung: opal
Nettogewicht: 2420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 6750 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 135 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 1502x85x72 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium+PC
Abdeckung: opal
Nettogewicht: 2420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
