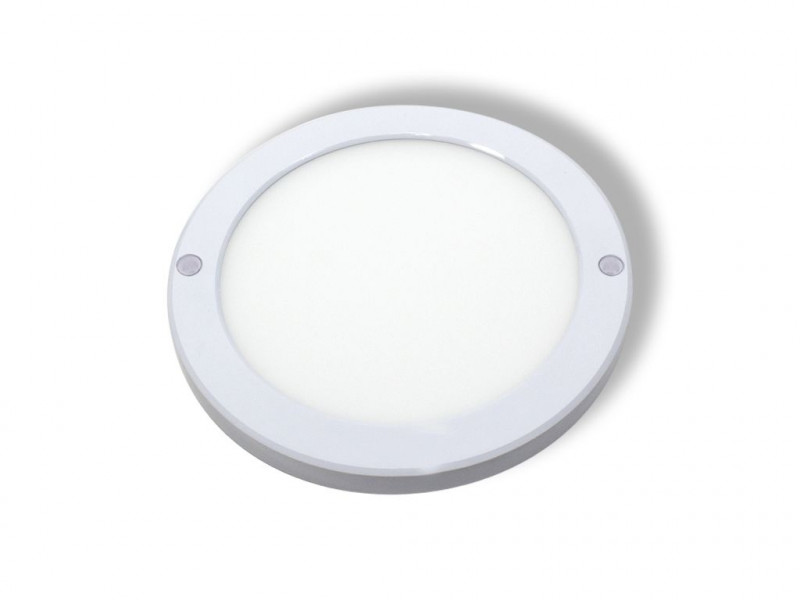

Placida Circle 220 18-830-1420LM
Order number: LG58330
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG58330
- Luminous Flux: 1420 lm
- Power Draw: 17 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 120°
- LED-Chip: Epistar SMD 4014
- Housing Color: white
- Dimensions: 220x18 mm
- Warranty: 3 years
Flat surface mounted LED luminaire Litegear® Placida is a very flat... more
Product information "Placida Circle 220 18-830-1420LM"
Flat surface mounted LED luminaire

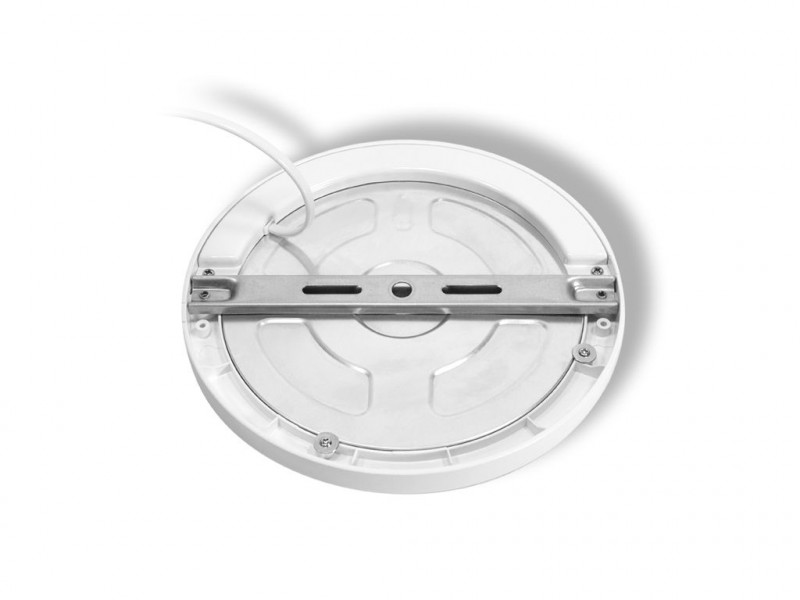

Litegear® Placida is a very flat and stylish surface mounted luminaire for walls and ceilings. High lumen efficanecy and long lifespan make this product perfect for lobbies, entrance halls, living room, bedroom, office, corridors and lavatories. Integrated LED driver and easy installtion with included T-Bar and screws. Placida is available in different shapes, square and round and different dimensions. Also available with integrated motion sensor and in different light colors. Quick return on investment and extremly low maintenance cost are additional benefits for the user. Wide beamangle and low glare rate.
Related links to "Placida Circle 220 18-830-1420LM"
Technical Details:
| Luminous Flux: | 1420 lm |
| LED Output: | 18 W |
| Light Yield: | 84 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Epistar |
| LED-Chip: | SMD 4014 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 17 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.55 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 81V, 200mA |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 220x18 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | flat only 18mm high |
| Cover: | opal |
| Net Weight: | 367 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.47 kg |
| Content Master Package: | 20 |
| Dimensions of Master Package: | 472x295x285 mm |
| Weight Master Package: | 14,5 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >30.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE |
| Barcode: | 4250557808994 |

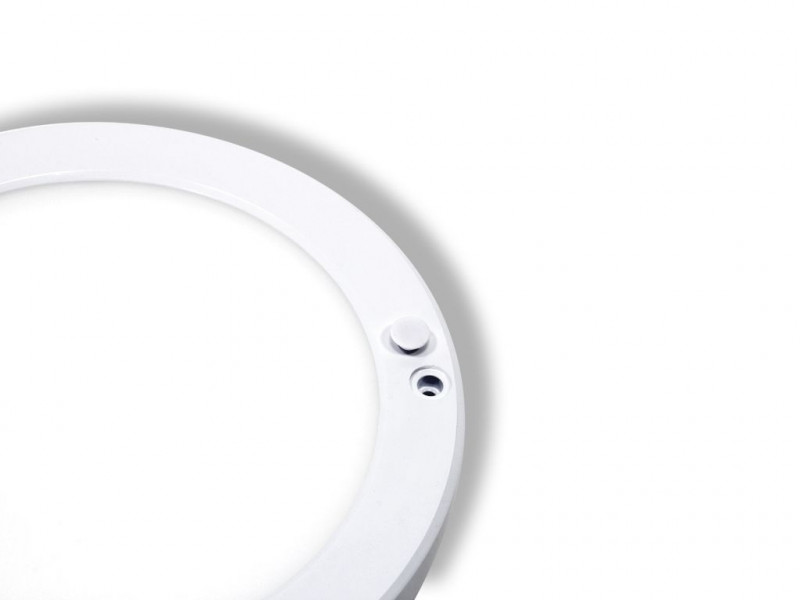

Runde LED-Wand-/Deckenanbauleuchte mit integriertem Sensor und sehr geringer Aufbauhöhe more
Runde LED-Wand-/Deckenanbauleuchte mit integriertem Sensor und sehr geringer Aufbauhöhe
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 40°C
Lichtstrom: 1420 lm
LED-Leistung: 17 W
Leuchten-Lichtausbeute: 84 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 220x18 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 367 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 30000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 40°C
Lichtstrom: 1420 lm
LED-Leistung: 17 W
Leuchten-Lichtausbeute: 84 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 220x18 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 367 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 30000 h
