Placida Circle 550 45-830-3600LM

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG58349
  • Luminous Flux: 3600 lm
  • Power Draw: 45 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 120°
  • LED-Chip: Epistar SMD 2835
  • Housing Color: white
  • Dimensions: 550x18 mm
  • Warranty: 3 years

Luminous Flux


Power Draw

45 W

Light Color

3000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 20

Beam Angle


ceiling, wall

mounting type

Light Direction


(ØxH) in mm


3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Flat surface mounted LED luminaire   Litegear® Placida is a very flat... more
Product information "Placida Circle 550 45-830-3600LM"
Flat surface mounted LED luminaire

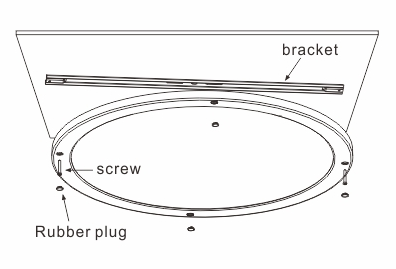

Litegear® Placida is a very flat and stylish surface mounted luminaire for walls and ceilings. High lumen efficanecy and long lifespan make this product perfect for lobbies, entrance halls, living room, bedroom, office, corridors and lavatories. Integrated LED driver and easy installtion with included T-Bar and screws. Placida is available in different shapes, square and round and different dimensions. Also available with integrated motion sensor and in different light colors. Quick return on investment and extremly low maintenance cost are additional benefits for the user. Wide beamangle and low glare rate.
Related links to "Placida Circle 550 45-830-3600LM"
Technical Details:
Luminous Flux: 3600 lm
LED Output: 43 W
Light Yield: 80 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 120 °
Unified Glare Rating (UGR): 26
Light Emission: downward
LED-Chip Manufacturer: Epistar
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 45 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: cable with flying leads
Output of Driver: DC 120V, 365mA
Input Lamp: terminal
Switching Cycles: >30.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Storage Temperature: -40°C - 60°C
Dimensions: 550x18 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Cover: opal
Net Weight: 2241 g
Type of Packaging: box
Weight incl. Packaging: 2.719 kg
Content Master Package: 5
Dimensions of Master Package: 580x170x625 mm
Weight Master Package: 13,75 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >30.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405114090
Certifications CE,D
Barcode: 4250557809632
Runde LED-Wand-/Deckenanbauleuchte mit integriertem Sensor und sehr geringer Aufbauhöhe more
Runde LED-Wand-/Deckenanbauleuchte mit integriertem Sensor und sehr geringer Aufbauhöhe
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 40°C
Lichtstrom: 3600 lm
LED-Leistung: 45 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 26
Lichtaustritt: direkt
Maße: 550x18 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 2241 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 30000 h
