Morana 9-830-750LM IP65

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG58304
  • Luminous Flux: 750 lm
  • Power Draw: 9 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 110°
  • LED-Chip: SMD 2835
  • Housing Color: grey
  • Dimensions: 265x90 mm
  • Warranty: 3 years

Luminous Flux


Power Draw

9 W

Light Color

3000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 65

Beam Angle


ceiling, wall

mounting type

Light Direction


(ØxH) in mm


3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED wall / ceiling lamp outdoor   The Litegear® Morana LED luminaire... more
Product information "Morana 9-830-750LM IP65"
LED wall / ceiling lamp outdoor

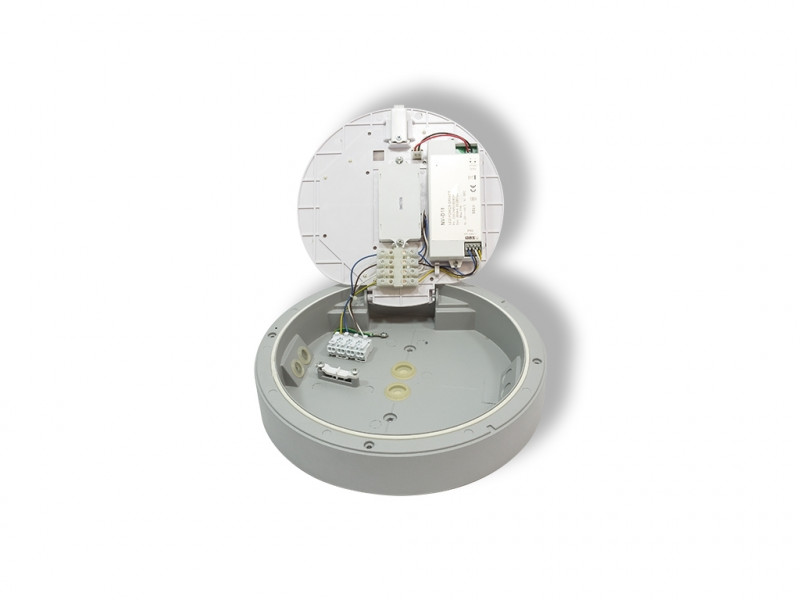

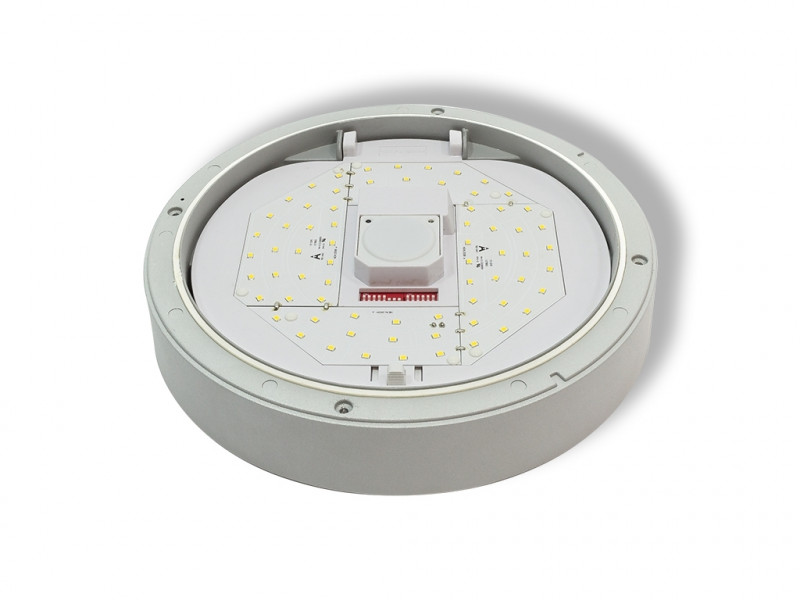

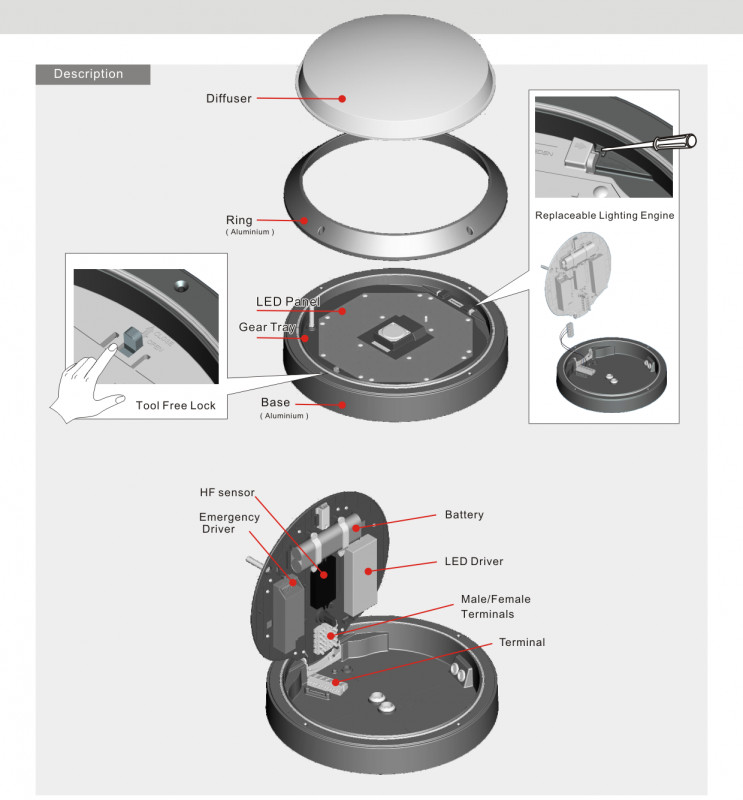

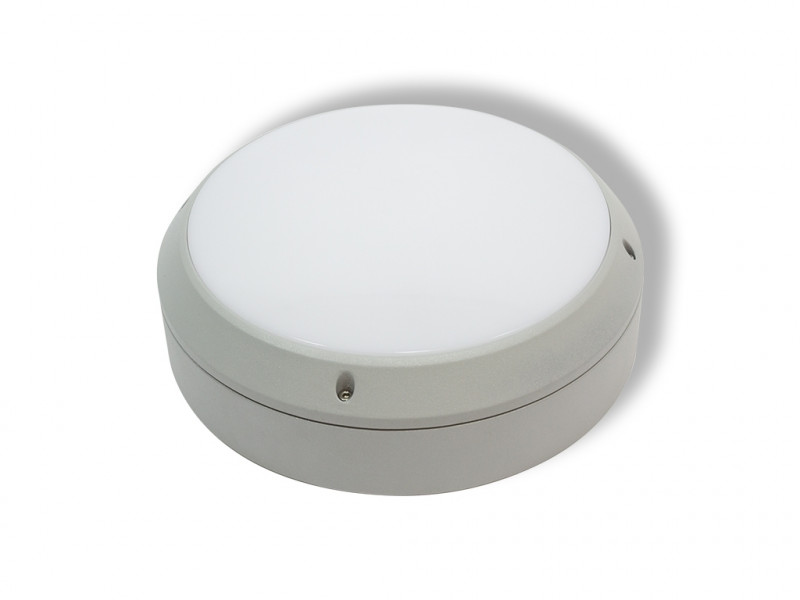

The Litegear® Morana LED luminaire convinces with a timeless, round design. Morana is weatherproof IP65 and therefore suitable for permanent outdoor use. LED ceiling light has a sturdy aluminum housing with a milky plastic cover. Due to the milky diffuser, the light from the LEDs is distributed very evenly over a large area, ideal for illuminating entrances to houses, on facades, ceilings or under canopies. The ease of installation makes this product all the more versatile and enjoyable for any installer. Easy access to the LED board and to the terminal block. The surface-mounted luminaire has numerous rear cable entries in the middle or laterally at the edge. The Litegear® Morana Outdoor LED light can be easily mounted on almost any surface.
Long life up to 50,000 operating hours
On demand with microwave motion sensor available.
Related links to "Morana 9-830-750LM IP65"
Technical Details:
Luminous Flux: 750 lm
LED Output: 9 W
Light Yield: 83 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <1
Beam Angle: 110 °
Unified Glare Rating (UGR): 24
Light Emission: downward
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 9 W
Contains Driver: ja
Power Factor (PF): >0.95
Input Driver: terminal
Input Lamp: terminal
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 45°C
Dimensions: 265x90 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 10
Housing Color grey
Housing Material: aluminum
Coating: lacquered
Cover: opal
Net Weight: 1420 g
Type of Packaging: box
Dimensions of Packaging: 275x275x110
Weight incl. Packaging: 1.62 kg
Content Master Package: 10
Dimensions of Master Package: 520x290x575 mm
Weight Master Package: 16,7 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,LM80,D
Barcode: 4250557811963
