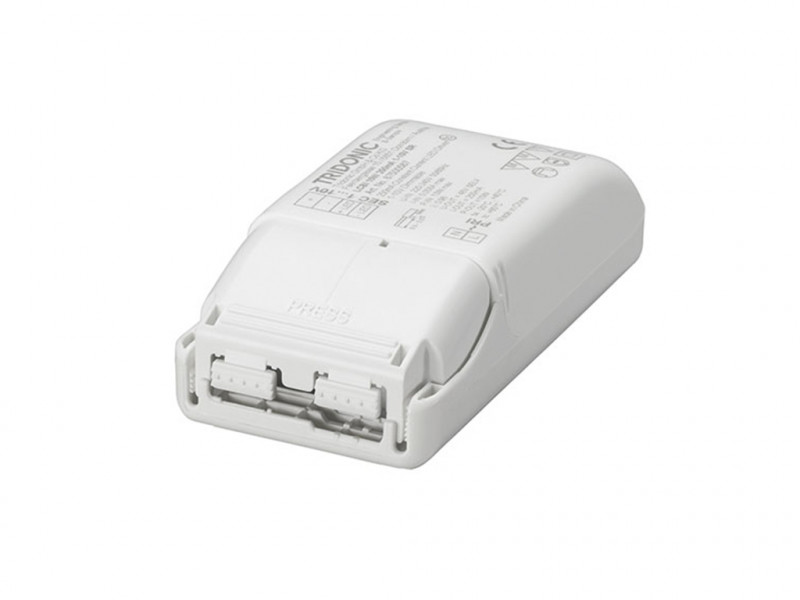

Tridonic TALEXXconverter LCI 20W 500mA TEC SR

Tridonic TALEXXconverter LCI 20W 500mA TEC SR
Tridonic TALEXXconverter LCI 20W 500mA TEC SR
LG51065
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG51065
  • Power Draw: 20 W
  • Input Current: AC 198 - 264V, 100mA, 50/60Hz
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 102x51x30 mm
  • Warranty: 5 years

Power Draw

20 W

IP Code

IP 20

Dimensions

(LxBxH) in mm
102x51x30

Warranty

5 years

LED Constant Current Power Supply   The udriver TEC SR product series provides the... more
Product information "Tridonic TALEXXconverter LCI 20W 500mA TEC SR"
LED Constant Current Power Supply

The udriver TEC SR product series provides the best compromise between an attractive price and qualified performance. With a focus on core functions, the LED Driver range offers outstanding quality and performance that ensures reliable operation of your LED module. The LED Drivers are compatible with many LED modules from Tridonic and provide optimal system solutions especially with SLE and DLE LED modules. The "SR-Strain relief" housing construction is ideal for all applications needing strain relief, for example when recessing the LED Driver in the ceiling for compact downlight solutions.

Product Features:
  • usable for all LED arrays with 500mA
Technical Details:
  • Mains input: AC 220 - 240V, 50 - 60Hz
  • Housing: Plastic
  • Output voltage: DC 18 - 40V
  • Rated power: 500mA, constant current
  • Output power: 20W
  • Dimmable: no
  • Protection: short circuit, over load, over voltage
  • IP class: IP20 for indoor
  • Safety standars: SELV, TÜV, CE
  • Power Faktor: >0,95
  • Efficiency: 86%
  • Ambient temperature: -40° to 80°C
  • Warranty: 5 years
Dimensions:  101,5 x 51 x 29,5 mm
Gewicht: 0,082kg
Related links to "Tridonic TALEXXconverter LCI 20W 500mA TEC SR"
Technical Details:

Input Current: AC 198 - 264V, 100mA, 50/60Hz
Power Consumption: 20 W
Driver Manufacturer: Tridonic
Power Factor (PF): >0.95
Output of Driver: DC 18-40V, 500mA
CC/CV: CC
Switching Cycles: >50.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 50°C
Dimensions: 102x51x30 mm
IP Class: 20
Housing Color white
Housing Material: plastic
Net Weight: 85 g
Type of Packaging: box
Weight incl. Packaging: 0.082 kg
Content Master Package: 20
Warranty 5 years
Operating Hours: >50.000 h
Disposal Obligation: ja
Certifications CE,RoHS,ENEC,EMC,LVD,SELV
Connection: Terminal
