Kompakter Driver für Panel und Downlights
Order number: LG50372
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG50372
- Power Draw: 36 W
- Input Current: AC 198-264V, 180mA, 50/60Hz, DC 180-280V
- IP Code: 20
- Housing Color: white
- Dimensions: 128x30x21 mm
- Warranty: 5 years
Universal LED driver for downlights and panels Power select: variable... more
Product information "Kompakter Driver für Panel und Downlights"

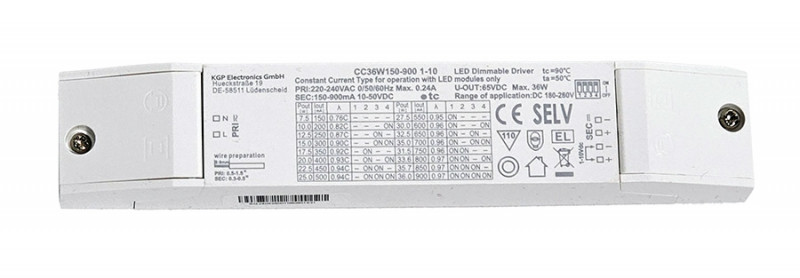

Universal LED driver for downlights and panels

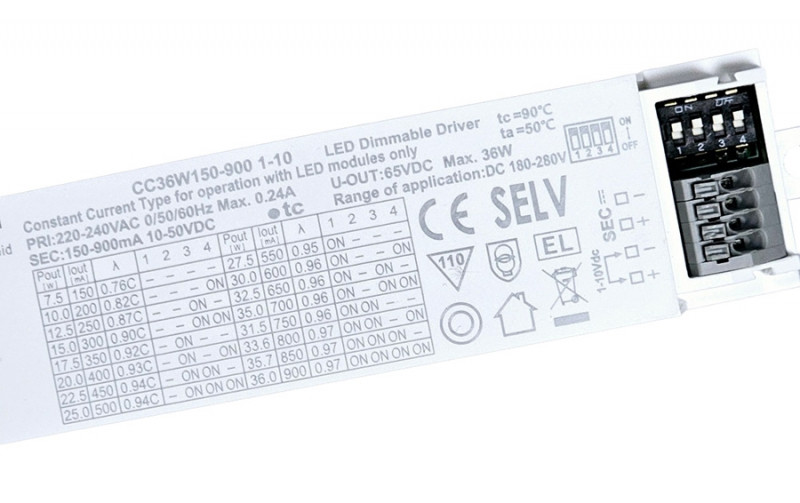

- Power select: variable output current in 4 steps selectable: 150-900mA ,selectable in 50mA steps
- max. 36W
- version for build into luminairies without cable holder boxes
- flickerfree
Related links to "Kompakter Driver für Panel und Downlights"
Technical Details:
| Method of Dimming: | 1-10V |
| Input Current: | AC 198-264V, 180mA, 50/60Hz, DC 180-280V |
| Power Consumption: | 36 W |
| Driver Manufacturer: | KGP |
| Power Factor (PF): | >0.92 |
| Input Driver: | terminal |
| Output of Driver: | DC 10-50V, 150-900mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Electrical Protection Class: | II |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 50°C |
| Storage Temperature: | -20°C - 90°C |
| Dimensions: | 128x30x21 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | ohne Zuentlastung |
| Net Weight: | 119 g |
| Weight incl. Packaging: | 0.125 kg |
| Content Master Package: | 120 |
| Weight Master Package: | 12,56 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h |
| Certifications | CE,ENEC,SELV |
| Power Select: 320-1050mA, 50mA steps | |
| perfect for LED panels and downlights | |
| max. driver on 16A breaker: B Type: 21,C Type: 35 | |
