Product information "Element HR QUADRO RGBW RF 43"

CONTROLS / ELEMENT SERIES

To comfortable control of LED Strips and Low-Voltage lights, we offer various Systems..You can choose between Wifi or DMX connection and benefit from the respective advantages.

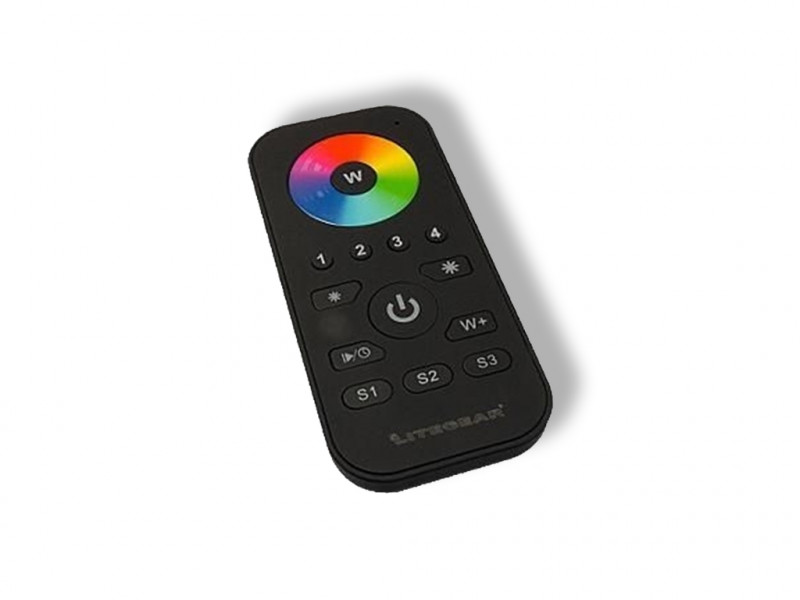

HR QUADRO RGBW RF 43

The Litegear Element Wireless Remote Control is a 4-channel (RGBW) remote control. The color could be changed via touching of the sensitive Color wheel. Turn the white color on or off by press the "W" key.

4 zones can be selected via 1-4 buttons. The brightness is adjusted over the small and large "Sun" symbol, 3 scenes can be saved. The range of remote control is 20m in free space.For the remote control, you need a suitable converter.

Properties:

Built- in programs with break function
Colorfade (Rainbow) with 10 Speeds
RGB or RGBW mode
Brightness control of each color
Synchronization of color runs
Up to 8 remote controls can be combined / connected
Power supply: 3X1.5V AAA battery (not included)
Wall bracket: included

Related links to "Element HR QUADRO RGBW RF 43"

Zurück

Technical Details:

Dimmable:
Method of Dimming:	Funk

Input Current:	DC 4,5V
Ambient Temperature (TA):	-10°C - 40°C

Dimensions:	120x55x17 mm
IP Class:	20
Housing Color	black
Housing Material:	plastic
Special Feature of Housing:	Battery operation
Net Weight:	62 g
Zones:	4
Scenes:	3
Channels:	4
Dimming:	1-100%
Programs:	10 mit Pausenfunktion
Transmission Frequency:	433/868Mhz

Type of Packaging:	box
Dimensions of Packaging:	130x65x30
Weight incl. Packaging:	0.08 kg

Product Line:	Advance Line
Warranty	2 years
Customs Tariff Number:	8543700300
Certifications	CE
Barcode:	4250557804378
Batterien: 3 x 1,5V AAA (nicht enthalten)
batteries: 3 x 1,5V AAA (not included)

Technical Data Sheet (PDF)

Zurück

Available downloads:

Download Anleitung LG5422 (.pdf)
