Element WR QUADRO DMX/RF 44
Order number: LG5424
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
CONTROLS / ELEMENT SERIES For comfortable control of LED strips and low-voltage... more
Product information "Element WR QUADRO DMX/RF 44"
CONTROLS / ELEMENT SERIES
For comfortable control of LED strips and low-voltage lights, we offer various systems. You can choose between wireless, Wifi or DMX connection and benefit from the respective advantages.

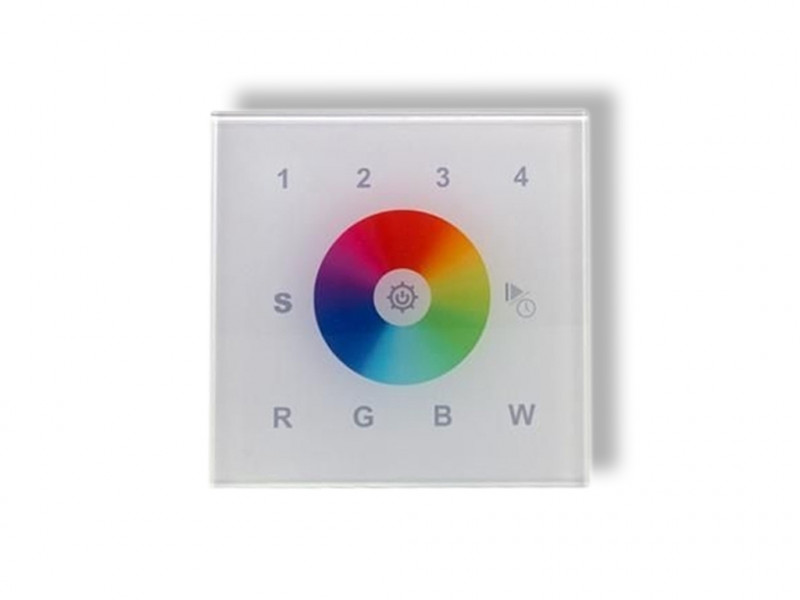

WR QUADRO DMX / RF 44
The Litegear Element wall remote is an elegant 4-channel (RGBW) remote control. Use the 1-4 buttons to select four zones. The color is selected via the touch-sensitive color wheel. Each basic color can be switched on or off individually using the R, G, B, W keys. Use the button in the middle to turn the controller on and off and press the button to increase or decrease the whole brightness. The "S" button is used to save and recall scenes. The button with the Play / Pause sign and with the clock is used to recall 10 internal programs. The remote control is also able to send DMX signals via cable. The Controller requires an external power supply. The range is about 20m in free space. For remote control you need a suitable converter.
Properties:
⦁ Colorfade (Rainbow Pass) at 10 speeds
⦁ Combine Up to 8 remote controls can be combined
⦁ each zone can be controlled or synchronized separately
⦁ Brightness control of each color
⦁ Synchronization of the color runs
Related links to "Element WR QUADRO DMX/RF 44"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | Funk |
| Input Current: | DC 12-24V |
| CC/CV: | CV |
| Ambient Temperature (TA): | -10°C - 40°C |
| Dimensions: | 86x86x41 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | sensitive touch surface |
| Net Weight: | 140 g |
| Zones: | 4 |
| Scenes: | 4 |
| Channels: | 4 |
| Dimming: | 1-100 |
| Programs: | 10 |
| Transmission Frequency: | 433/868Mhz |
| Weight incl. Packaging: | 0.194 kg |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Customs Tariff Number: | 8543700300 |
| Certifications | CE |
| Barcode: | 4250557804439 |
| RGBW-Funk Wandcontroller 4 Zonen, Programme | |
| RGBW wireless wallcontroller 4 zones, Presets | |
| benötigt eine externes Netzteil 12-24V DC | |
| needs an external power supply 12-24V DC | |
| DMX Ausgang/output | |
