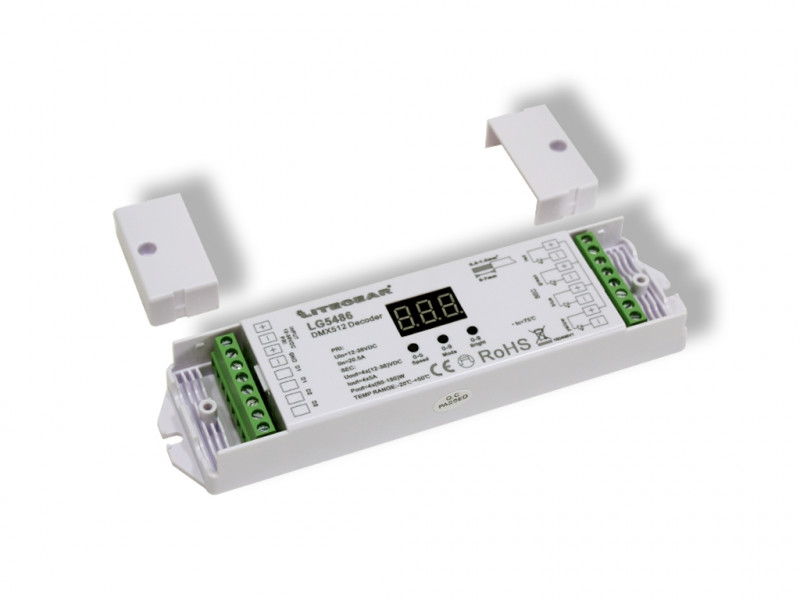

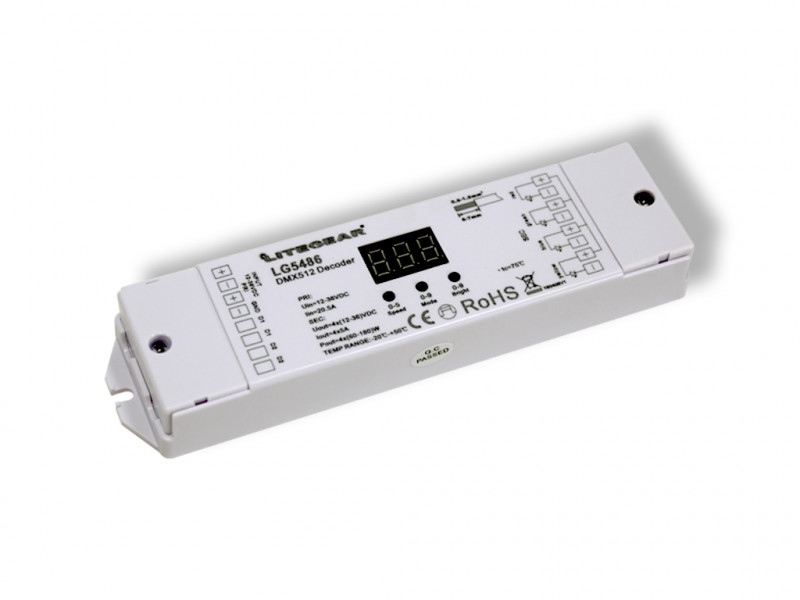

Element POWERMANAGER QUADRO DMX 512

LG5486
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

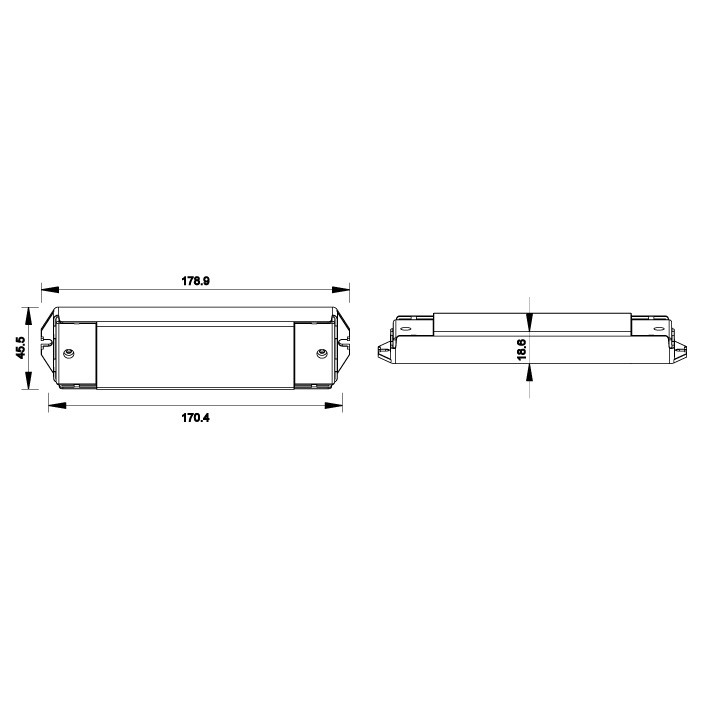

Dimensions

Dimensions
  • LG5486
  • Input Current: DC 12-36V, 4 x 5000mA
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 178x46x19 mm
  • Warranty: 2 years

IP Code

IP 20

mounting type

Dimensions

(LxBxH) in mm
178x46x19

Warranty

2 years

CONTROLS / ELEMENT SERIES   For comfortable control of LED strips and... more
Product information "Element POWERMANAGER QUADRO DMX 512"
CONTROLS / ELEMENT SERIES

For comfortable control of LED strips and low-voltage lights, we offer various systems. You can choose between wireless, Wifi- or DMX connection and benefit from the respective advantages.
WS MONO DIM DMX 1

The Litegear Element Wall Dimmer is a DMX rotary dimmer. Pressing the rotary wheel switches the suitable controller on or off. The brightness is adjusted by turning. Flicker-free dimming of 1-100%. For remote control you need a suitable controller and a cable connection (DMX bus). To power the wall dimmer, an external power supply is required.
Properties:
Control signal to the LED controller via 3-4-core cable (DMX bus)
necessary
Related links to "Element POWERMANAGER QUADRO DMX 512"
Technical Details:

Dimmable: ja
Input Current: DC 12-36V, 4 x 5000mA
Output of Driver: DC 12-36V
CC/CV: CV
Ambient Temperature (TA): -10°C - 40°C
Dimensions: 178x46x19 mm
Montageart: surface mounted
IP Class: 20
Housing Color white
Housing Material: plastic
Special Feature of Housing: DMX Decoder
Net Weight: 119 g
Channels: 4
Dimming: 1-100%
Programs: 9
Type of Packaging: box
Dimensions of Packaging: 180x50x25
Weight incl. Packaging: 0.138 kg
Product Line: Advance Line
Warranty 2 years
Certifications CE,RoHS,EMC,LVD
Barcode: 4250557806402
DMX Decoder 12-36V 4 x 5A = 4 x 60-180W
ideal zur Dimmung v.12-24V LED-Strips/Leuchtmedium
DMX Startadresse 1-512 wählbar, 4 Kanäle
