CONTROLS / ELEMENT SERIES For comfortable control of LED strips and low-voltage... more

Close menu

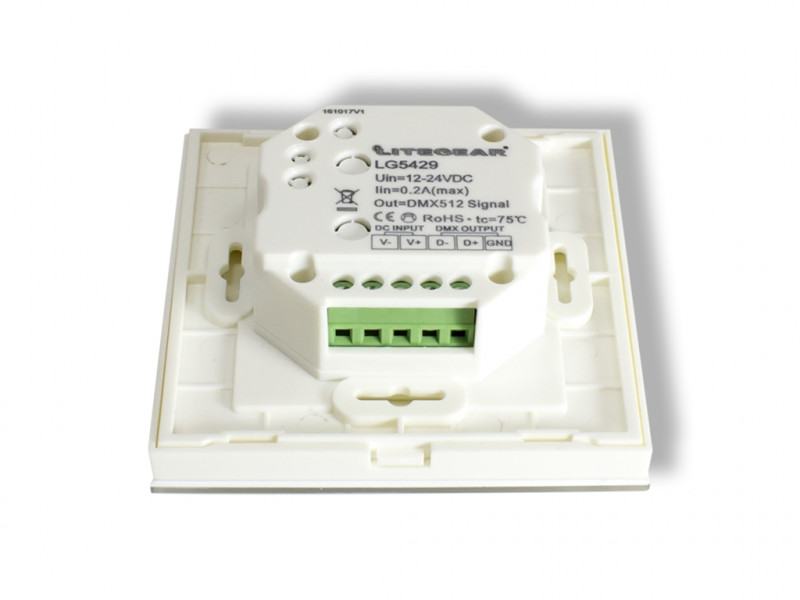

Product information "Element WR41 DUAL DIM DMX"

CONTROLS / ELEMENT SERIES

For comfortable control of LED strips and low-voltage lights, we offer various systems. You can choose between wireless RF or DMX connection and benefit from the respective advantages.

WR DUAL DIM DMX 41 wireless RF

The wall DMX control is a 2-channel controller / dimmer. The control is wired with the standardized DMX512 protocol. A short press on I / O activates or deactivates the suitable controller.

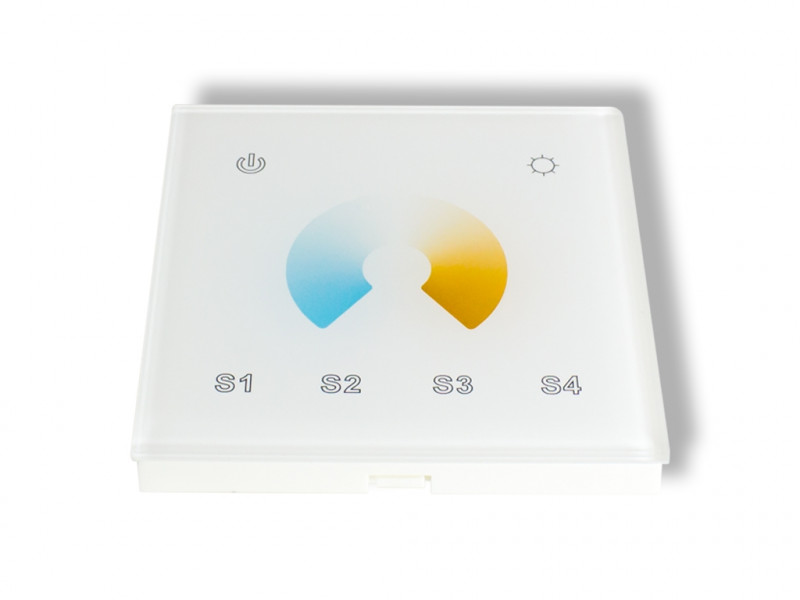

Through longer pressing the button with the "sun" the controller dims up or down. Flicker-free dimming of 1-100%. The controller is suitable for controlling two-color LED strips (CW + WW). The color is selected via the touch-sensitive color wheel. The buttons S1-4 can be used to save and recall scenes. The power supply requires an external power supply. For remote control you need a suitable converter.

Properties:

⦁ 2-channel (cw + ww) LED remote control DMX one zone

⦁ DMX control over cable

⦁ each zone can be controlled or synchronized separately

Related links to "Element WR41 DUAL DIM DMX"

Zurück

Technical Details:

Dimmable:
Method of Dimming:	Funk

Input Current:	DC 12-24V
Output of Driver:	DC 12-24V
CC/CV:	CV
Ambient Temperature (TA):	-10°C - 40°C

Dimensions:	86x86x41 mm
Montageart:	recessed
IP Class:	20
Housing Color	white
Housing Material:	plastic
Special Feature of Housing:	DMX Dual white Controller
Net Weight:	135 g
Zones:	1
Scenes:	4
Channels:	2
Dimming:	1-100%

Weight incl. Packaging:

0.181 kg

Product Line:	Advance Line
Warranty	2 years
Certifications	CE
Barcode:	4250557809250
2 Chanel/Kanal DMX Dualwhite Controller
4 Szenen speicherbar, 1-100% Dimmung 1 Kanal
für Wandeinbau/for in wall installation
Netzteil nicht enthalten/powersupply not incl.

Technical Data Sheet (PDF)
