Product information "Element HR MONO DIM RF 34"

CONTROLS / ELEMENT SERIES

To comfortable Control of LED Strips and Low-Voltage lights, we offer various Systems. You can choose between Wifi or DMX connection and benefit from the respective advantages.

HR MONO DIM RF 34

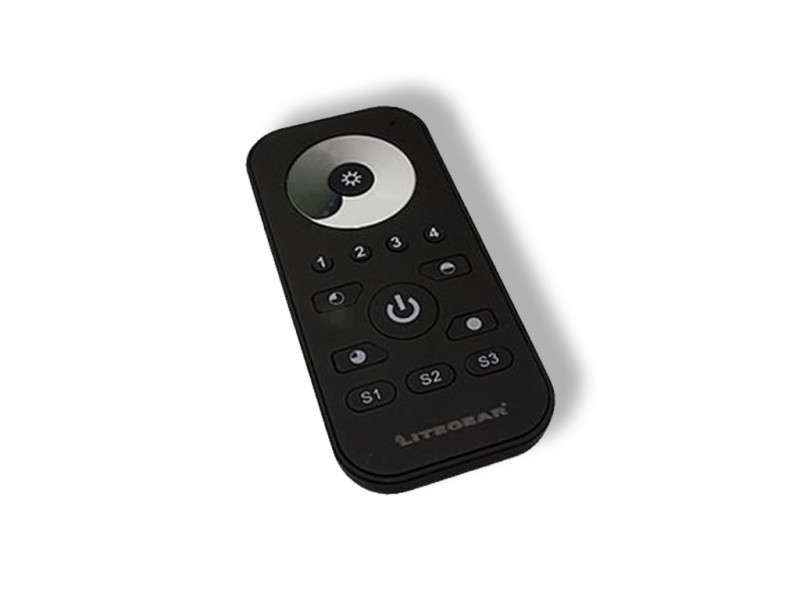

The Litegear Element Wireless Remote Control is a 1-channel remote control. The color could be changed via touching of the sensitive Color wheel. To dim up and down the brightness keep pressed the "Sun" key.Remote control has four pre-selectable levels of brightness in the form of quarter-circle buttons: 25%, 50%, 75% and 100%. 4 zones can be selected via buttons 1-4. Furthermore, 3 scenes can be saved. The range is about 20m in the space. For remote control you need suitable Converter.

Properties:

• Up to 8 remote controls can be combined

• each zone can be controlled or synchronized separately

• Power supply: 3 x 1.5V AAA battery (not included)

• Wall bracket: included

Related links to "Element HR MONO DIM RF 34"

Zurück

Technical Details:

Dimmable:
Method of Dimming:	Funk

Input Current:	DC 4,5V
Ambient Temperature (TA):	-10°C - 40°C

Dimensions:	128x65x28 mm
IP Class:	20
Housing Color	black
Special Feature of Housing:	Battery operation
Net Weight:	67 g
Zones:	4
Scenes:	3
Channels:	1
Dimming:	1-100%
Transmission Frequency:	433/868MHz

Type of Packaging:	box
Dimensions of Packaging:	130x67x30
Weight incl. Packaging:	0.084 kg

Product Line:	Advance Line
Warranty	2 years
Customs Tariff Number:	8543700300
Certifications	CE
Barcode:	4250557804446
Funkfernbedienung für 4 monochrome Kanäle
wireless remote for 4 individual channels
Battrien: 3 x 1,5V AAA (nicht enthalten)
batteries: 3 x 1,5V AAA (not included)

Technical Data Sheet (PDF)
