Product information "Element WR MONO DIM RF 01"

CONTROLS / ELEMENT SERIES

To comfortable Control of LED Strips and Low-Voltage lights, we offer various Systems. You can choose between Wifi or DMX connection and benefit from the respective advantages

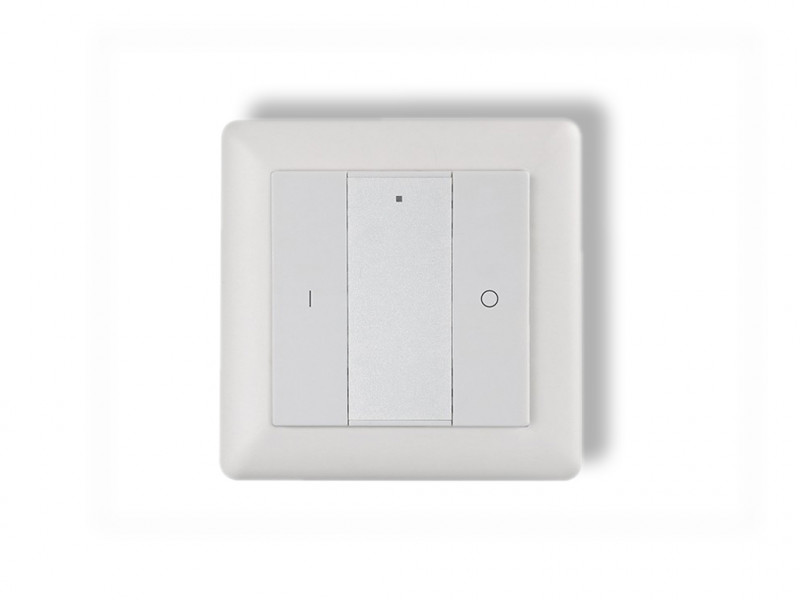

WR MONO DIM RF 01

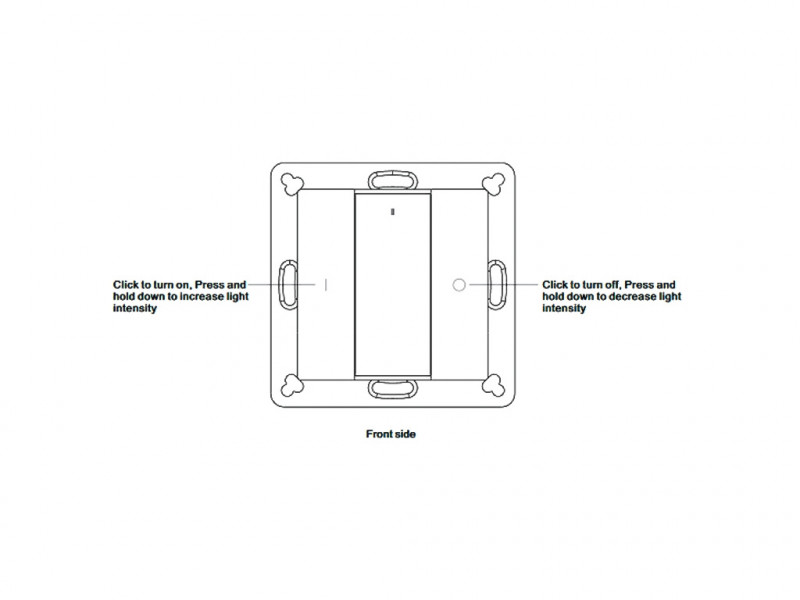

The Litegear Element wall remote control is a 1-channel button / dimmer. A short press on I / O activates or deactivates the suitable controller. By pressing and holding the key, the controller dims up or down.

Flicker-free dimming of 1-100%. The range is about 20m in free space. For remote control you need a suitable controller. Compatible with frames from switch ranges from Berker, Merten, Gira or Jung.

Properties:

⦁ Power supply: 3V DC via battery (included)

Related links to "Element WR MONO DIM RF 01"

Zurück

Technical Details:

Dimmable:
Method of Dimming:	Funk

Input Current:	DC 3V
Output of Driver:	DC 3V
CC/CV:	CV
Ambient Temperature (TA):	0°C - 35°C

Dimensions:	71,2x71,2x11 mm
Montageart:	recessed
IP Class:	20
Housing Color	white
Housing Material:	plastic
Special Feature of Housing:	for wall installation
Net Weight:	64 g
Zones:	1
Channels:	1
Dimming:	1-100%
Transmission Frequency:	433/869,5MHz

Type of Packaging:	box
Dimensions of Packaging:	110x100x50
Weight incl. Packaging:	0.123 kg

Product Line:	Advance Line
Warranty	2 years
Certifications	CE
Barcode:	4250557811604
inkl./incl. 3V Batterie/battery

Technical Data Sheet (PDF)

Zurück

Available downloads:

Download Anleitung LG5434 (.pdf)
