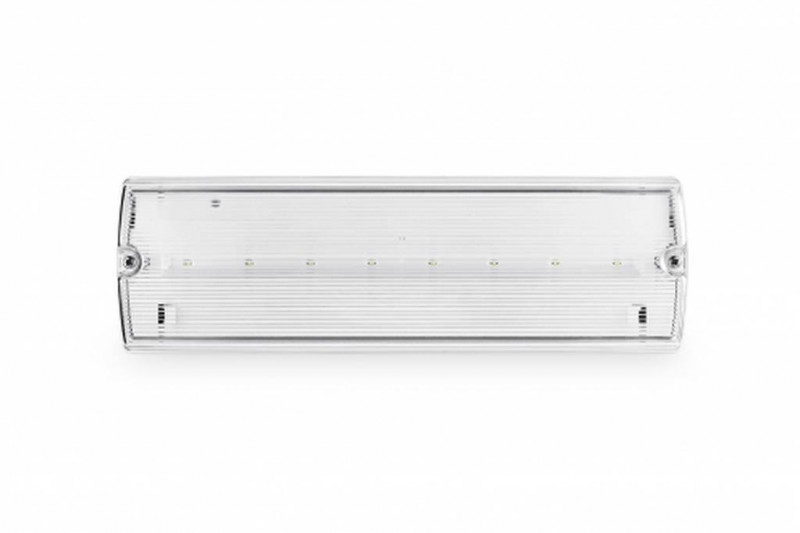

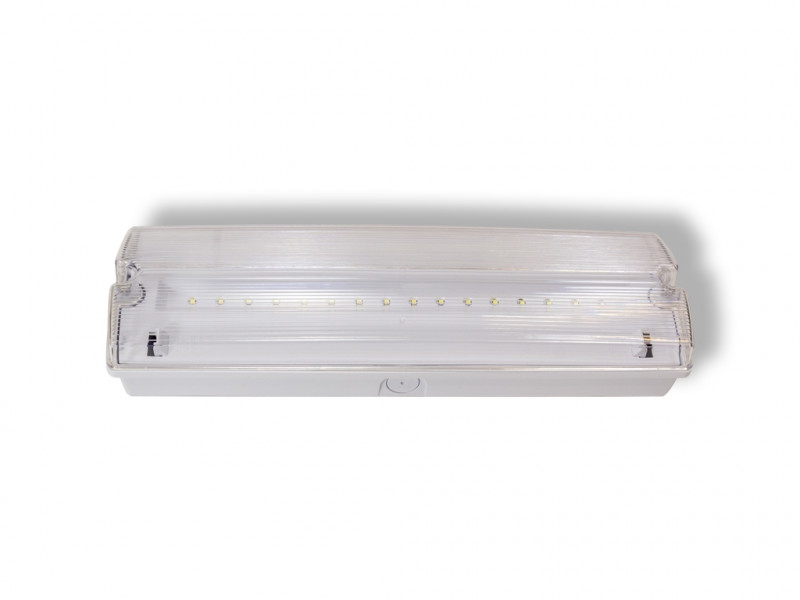

Emergy Brick 3-860-150lm SC WH
Order number: LG60009
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
LED escape route light with self test fuction Emergency light with single... more
Product information "Emergy Brick 3-860-150lm SC WH"
LED escape route light with self test fuction
Emergency light with single battery supply for escape route lighting. 3 hours emergency lighting with NI-CD battery.1500mA, 3.6V. Can also be used as escape route pictogram light. Pictogram with cutable directional arrow is enclosed. Good brightness and wide dispersion. LED light source with long life up to 40,000 hours. LED status display via green status LED. Nice, rectangular water- and dustproof IP65 body made of plastic. Permanent phase monitoring. Emergency battery operation: 3 hours.
Inkl. 4 exit direction signs: arrow left, right, up
- Operating device: emergency / mains: electronic ballast
- Beam angle: symmetrical> 120 °
- LED: 3W
- Luminous flux: typ. 150 lumens
- Incl. pictogram with cutable directional arrow and person symbol

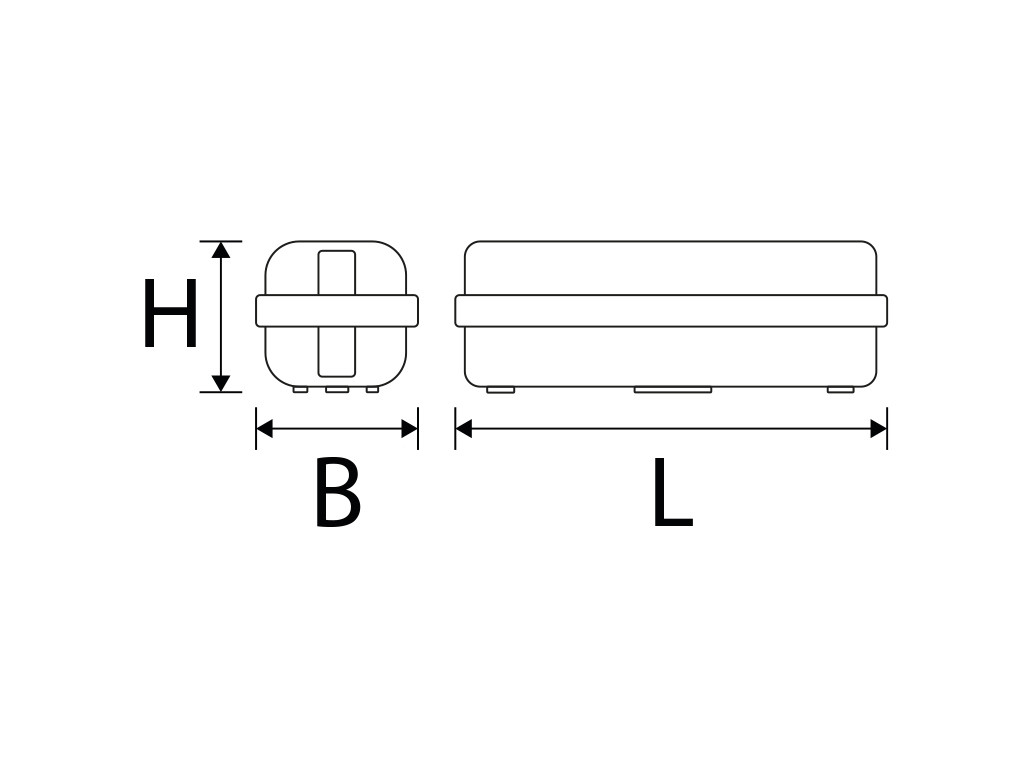

- Dimensions: see drawing
Related links to "Emergy Brick 3-860-150lm SC WH"
Technical Details:
| Luminous Flux: | 150 lm |
| LED Output: | 3 W |
| Light Yield: | 50 lm/W |
| Light Temperature: | 6000 K |
| Light Color: | daylight |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 16 |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240VV, 50/60Hz |
| Power Consumption: | 3 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| Input Lamp: | terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 40°C |
| Dimensions: | 350x110x60 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Cover: | clear |
| Net Weight: | 613 g |
| Luminaire Type: | Rettungszeichenleuchte |
| Viewing Distance EN1838: | ≥18 m |
| Included Signs: | Pfeil links rechts oben unten |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 2 |
| Discharge Duration: | ≥3 h |
| Battery Type: | NiCd |
| Battery Current: | 1500 mA |
| Battery Charge Duration: | 12 h |
| Initial Charge Duration: | 24 h |
| Charging Power Consumption: | 6 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 135 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Zeichen nach ISO 7010, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Dimensions of Packaging: | 120x65x360 |
| Weight incl. Packaging: | 0.692 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 410x375x255 mm |
| Weight Master Package: | 9 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405423100 |
| Certifications | CE |
| Barcode: | 4250557817781 |
| inkl. Batterie Accupack | |
| Autom.Dauertest jährlich, Funktionstest wöchentl. | |

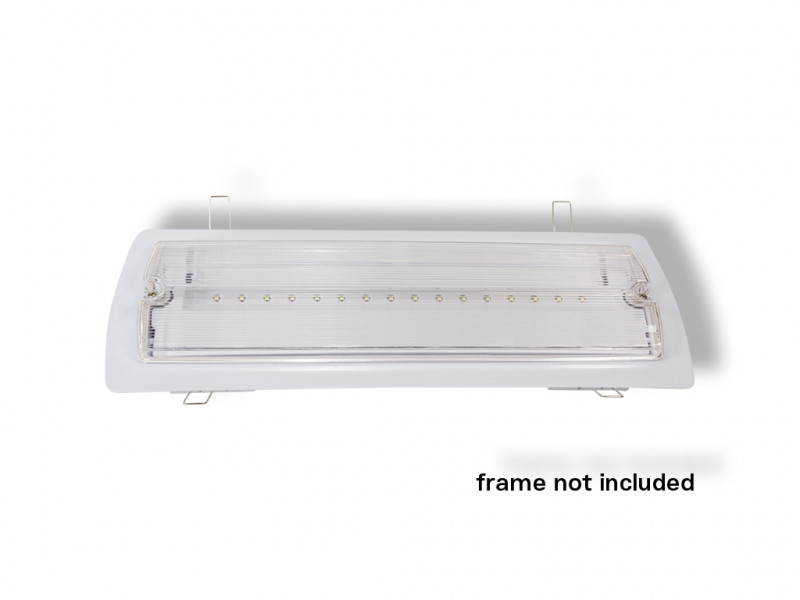

| optional ist ein Deckeneinbaurahmen erhältlich | |
Quadratische LED-Rettungswegleuchte mit Einzelbatterieversorgung und Autotestfunktion more
Quadratische LED-Rettungswegleuchte mit Einzelbatterieversorgung und Autotestfunktion
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 150 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 50 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 350x110x60 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: klar
Nettogewicht: 613 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 150 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 50 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: daylight
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 350x110x60 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: klar
Nettogewicht: 613 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
