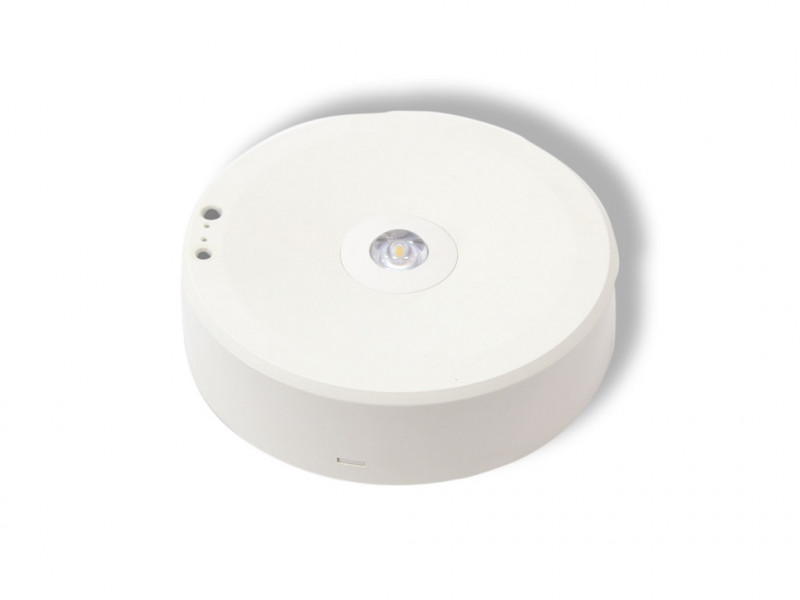

Emergy Disk 3-840-270lm SC WH

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG60021
  • Luminous Flux: 270 lm
  • Power Draw: 3 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 220-240VV, 90mA, 50Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 155°
  • LED-Chip: Tiandian SMD 5050
  • Housing Color: white
  • Dimensions: 150x40 mm
  • Warranty: 5 years

Luminous Flux


Power Draw

3 W

Light Color

4000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 20

Beam Angle


mounting type

Light Direction


(ØxH) in mm


5 years

LED escape route light   Safety light with single battery supply for... more
Product information "Emergy Disk 3-840-270lm SC WH"
LED escape route light

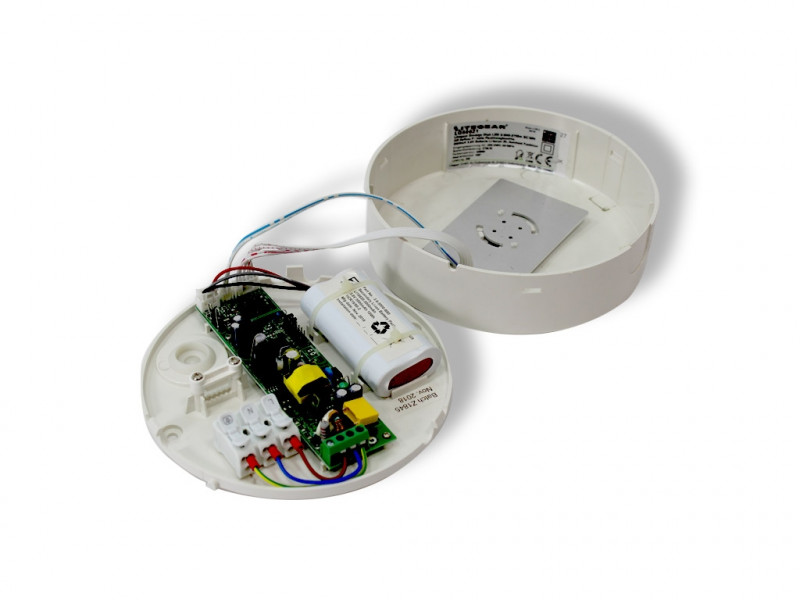

  • Safety light with single battery supply for escape route illumination. 3 hours of emergency lighting by means of lithium battery. 2600mA, 3.6V. Good brightness and wide light distribution.Manual function test via push button. Advanced auto selftest function.  LED light source with long life up to 50,000 hours. LED status display via red and green LED. Compact round polycarbonate housing with easy access for battery change. Can me installed on concrete, wood and plasterboard ceilings.Permanent phase monitoring.
  • Operating equipment: emergency / network: electronic ballast
  • auto self test function: monthy function test and annualy duration test
  • Beam angle: symmetrical 155 °
  • LED: 3W
  • battery operated emergecy light: >3 hours
  • Luminous flux: typ. 270 lumens
  • surface mounted version
Related links to "Emergy Disk 3-840-270lm SC WH"
Technical Details:
Luminous Flux: 270 lm
LED Output: 2.8 W
Light Yield: 90 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 155 °
Light Emission: downward
LED-Chip Manufacturer: Tiandian
LED-Chip: SMD 5050
Number of LED: 1
Ignition Time: <1 s
Input Current: AC 220-240VV, 90mA, 50Hz
Power Consumption: 3 W
Contains Driver: ja
Power Factor (PF): >0.5
Input Driver: terminal
Input Lamp: Terminal
Switching Cycles: >50.000
Electrical Protection Class: II
Ambient Temperature (TA): 0°C - 40°C
Storage Temperature: 0°C - 50°C
Dimensions: 150x40 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 20
IK Code: 06
Housing Color white
Housing Material: Polycarbonat
Coating: matte
Special Feature of Housing: Surface-mounted housing round
Cover: Lens
Net Weight: 375 g
Luminaire Type: Fluchtwegleuchtung
Testing Facility: automatischer Selbsttest
Battery Warranty: 3
Discharge Duration: ≥3 h
Battery Type: Li-Ion
Battery Current: 5000 mA
Battery Charge Duration: 8 h
Initial Charge Duration: 16 h
Charging Power Consumption: 8 W
Battery Cell Quantity 2
Luminous Flux in Battery Mode: 270 lm
Safety Standards: DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172
Certified By: LIA
Type of Packaging: box
Dimensions of Packaging: 160x158x50
Weight incl. Packaging: 0.4 kg
Content Master Package: 28
Dimensions of Master Package: 360x336x327 mm
Weight Master Package: 11,6 kg
Product Line: ECO Line
Warranty 5 years, 25.000 h
Operating Hours: >50.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,TÜV,LM80,EMC,LVD,D
Barcode: 4260733770083
Über- und Entladeschutz, greene Status LED, Taster
Selbstest: 30s/Woche, Dauertest: 1xyear
selftest: 30s/week, full duartion test: 1 x year
