Emergy Plane Mini 1,5-840-150lm SC WH asym. Corridor Beam 2 x 45°
Order number: LG60027
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Mini LED escape route light Safety light with single battery supply for escape... more
Product information "Emergy Plane Mini 1,5-840-150lm SC WH asym. Corridor Beam 2 x 45°"
Mini LED escape route light

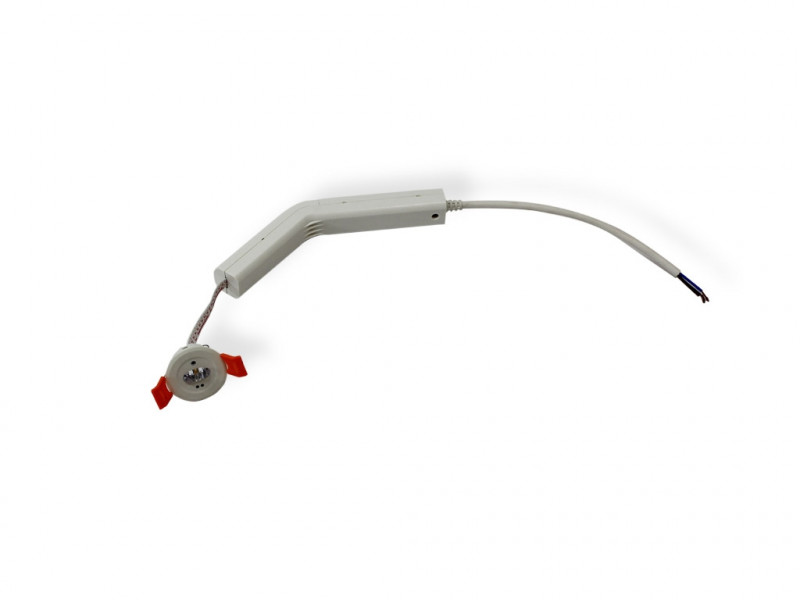

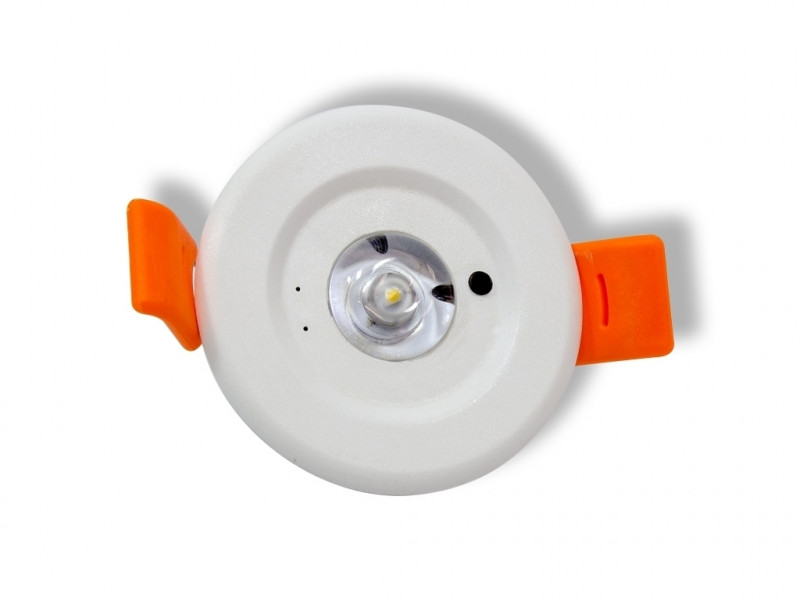

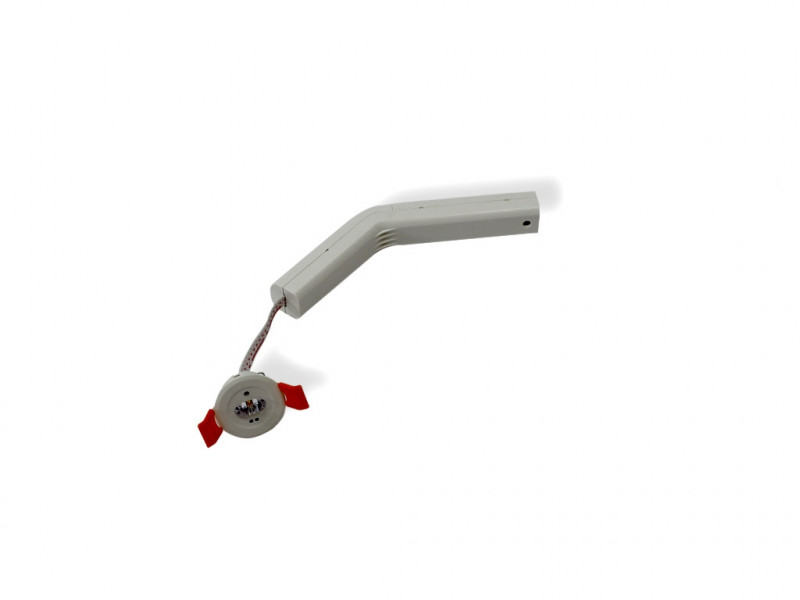

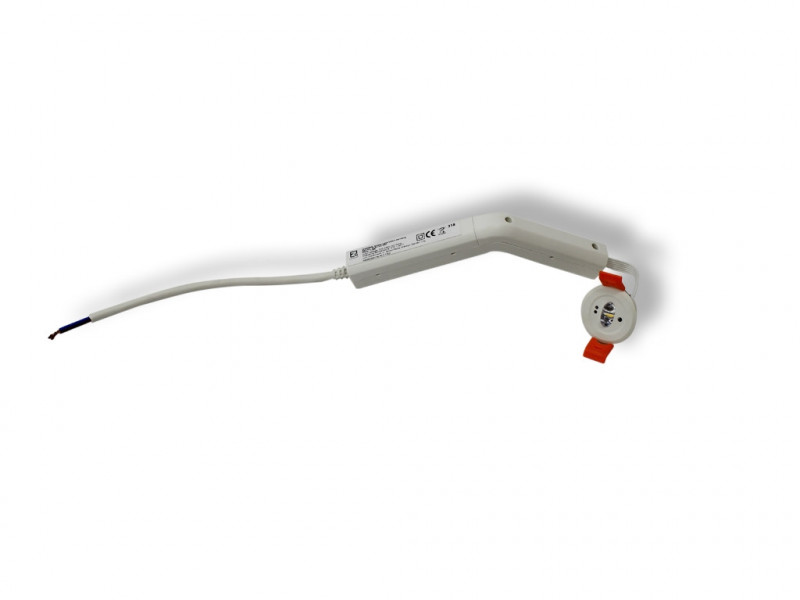

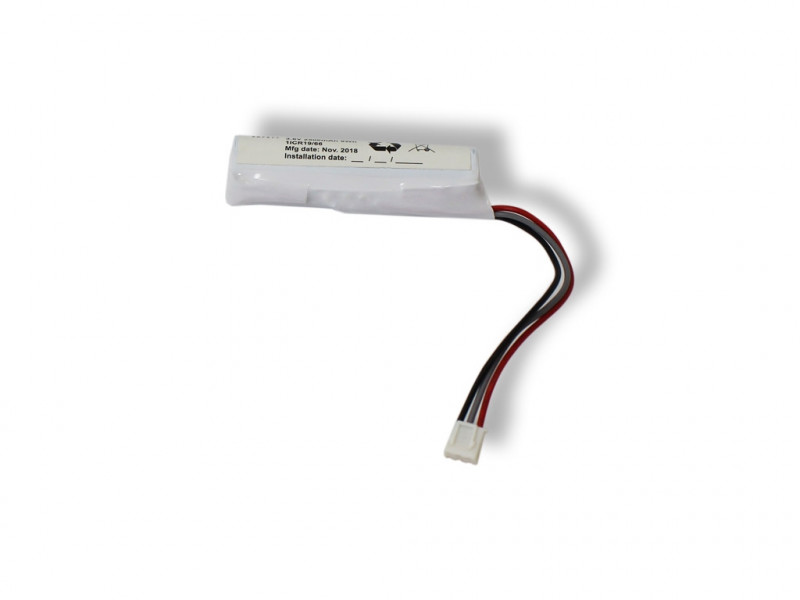

Safety light with single battery supply for escape route illumination. 3 hours of emergency lighting by means of lithium battery. 2500mA, 3.6V. Good brightness and wide light distribution.Manual function test via push button. LED light source with long life up to 50,000 hours. LED status display via red and green LED. Compact dimensions for integration in grid- and plasterboard ceilings. Two-part structure: round LED unit and separate battery and supply unit with switchover. Permanent phase monitoring. Elegant, inconspicuous ceiling installation.
- Operating equipment: emergency / network: electronic ballast
- auto test function
- Beam angle: symmetrical 155 °
- LED: 1,5W
- Luminous flux: typ. 150 lumens
- Installation dimensions see drawing
Related links to "Emergy Plane Mini 1,5-840-150lm SC WH asym. Corridor Beam 2 x 45°"
Technical Details:
| Luminous Flux: | 150 lm |
| LED Output: | 1.5 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 2x45 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Tiandian |
| LED-Chip: | SMD 5050 |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240VV, 50/60Hz |
| Power Consumption: | 2 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 45x27 mm |
| Installation Depth: | 25 mm |
| Cut-Out Dimensions: | 35 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| IK Code: | 06 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Luminaire IP54 room side |
| Cover: | Lens |
| Net Weight: | 149 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | Li-Ion |
| Battery Current: | 5000 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 6 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 170 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Certified By: | LIA |
| Type of Packaging: | box |
| Dimensions of Packaging: | 242x95x30 |
| Weight incl. Packaging: | 0.194 kg |
| Content Master Package: | 60 |
| Dimensions of Master Package: | 498x318x315 mm |
| Weight Master Package: | 13,20 kg |
| Product Line: | ECO Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,LM80,D |
| Barcode: | 4260733770090 |
| Über- und Entladeschutz, greene/rede Status LED | |
| gewinkelter Treiber/angled driver | |
| Selbstest: 30s/Woche, Dauertest: 1xyear | |
| selftest: 30s/week, full duartion test: 1 x year | |
| IR Empfänger für Fernbedienung | |
Runde Einbau-LED-Rettungswegleuchte mit Einzelbatterieversorgung more
Runde Einbau-LED-Rettungswegleuchte mit Einzelbatterieversorgung
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 35 mm
Einbautiefe: 25 mm
Temperaturbereich: 0°C - 40°C
Lichtstrom: 150 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 2x45°
Lichtaustritt: direkt
Maße: 45x27 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: Linse
Nettogewicht: 149 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 35 mm
Einbautiefe: 25 mm
Temperaturbereich: 0°C - 40°C
Lichtstrom: 150 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 2x45°
Lichtaustritt: direkt
Maße: 45x27 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: Linse
Nettogewicht: 149 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
