Emergy Brick 3-840-320lm SC WH

LG60015
Preise sind erst nach der Anmeldung sichtbar.

Availability: on request

Dimensions

Dimensions
  • LG60015
  • Luminous Flux: 320 lm
  • Power Draw: 3 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 220-240VV, 50Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 120°
  • LED-Chip: Everlight SMD 2835
  • Housing Color: white
  • Dimensions: 355x109x60,8 mm
  • Warranty: 5 years

Luminous Flux

320
lm

Power Draw

3 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
355x109x60,8

Warranty

5 years

LED escape route light with self test fuction   Emergency light with single... more
Product information "Emergy Brick 3-840-320lm SC WH"

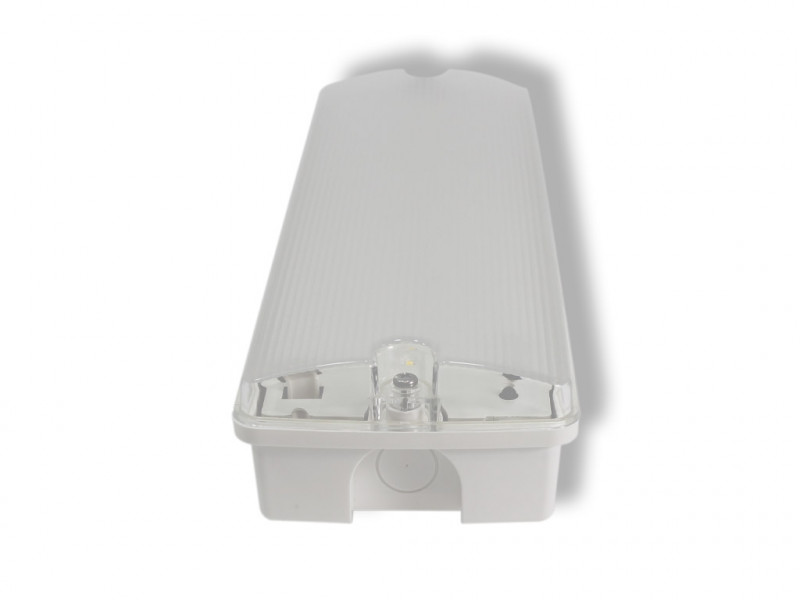

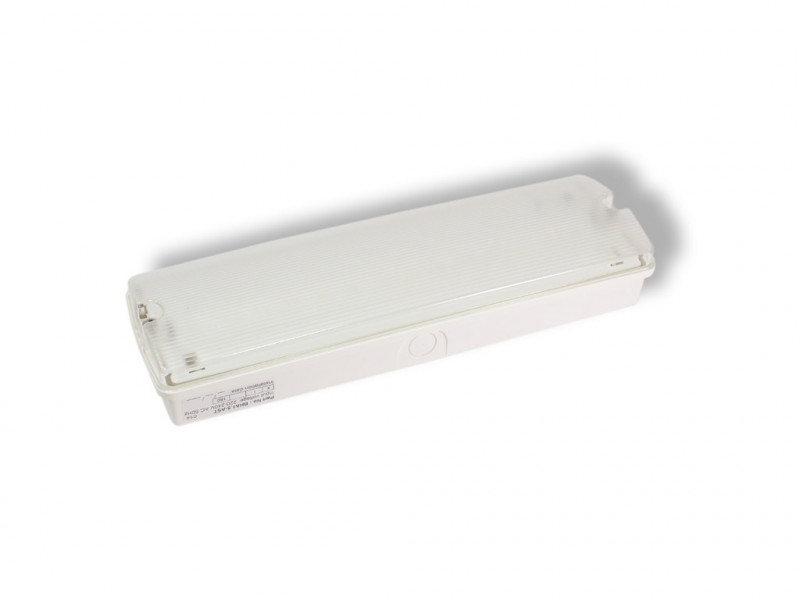

LED escape route light with self test fuction

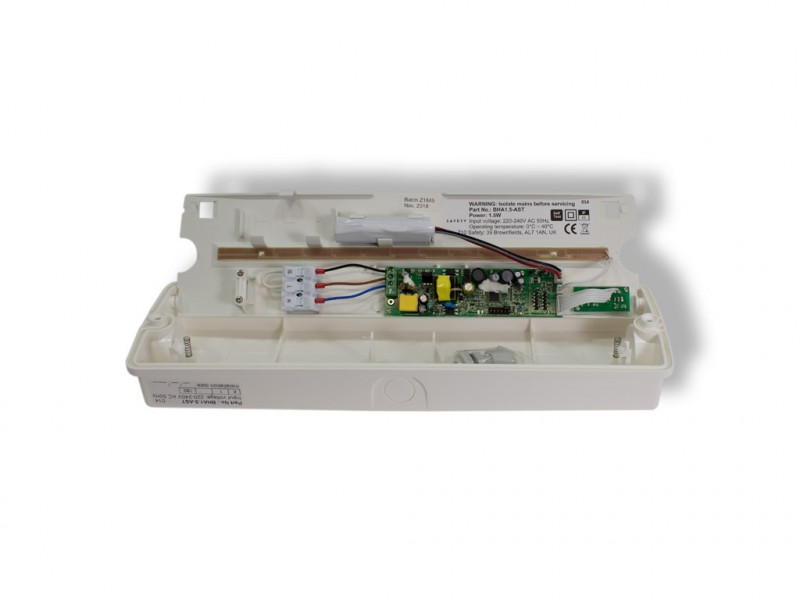

Emergency light with single battery supply for escape route lighting. 3 hours emergency lighting with Li-Ion battery 5000mAh, 3.6V. Can also be used as escape route pictogram light. Pictogram with cutable directional arrow is enclosed. Good brightness and wide dispersion. LED light source with long life up to 50,000 hours. LED status display via green status LED. Nice, rectangular water- and dustproof IP65 body made of plastic. Permanent phase monitoring. Emergency battery operation: 3 hours.
Inkl. exit direction signs: arrow left, right, down, up
Manufactured to comply EN62034: 2012,EN 60598-2-22

  • Operating device: emergency / mains: electronic ballast
  • Beam angle: symmetrical> 120 °
  •  LED: 3W
  • Luminous flux: typ. 320 lumens
  • Incl. pictogram with cutable directional arrow and person symbol
  • Dimensions: see drawing
  • viewing distance 20m

This is a self-test luminaire. Functional test is carried out automatically once a week and runs
for 30 seconds. Full duration test is carried out automatically every 52 weeks. First full duration
test is carried out automatically within the first 4 weeks after the luminaire being connected to
mains voltage. This luminaire can be used in conjunction with the Advanced Remote Control
(ARC). ARC is an optional tool that adds extra features to AST emergency luminaires. Please
refer to the ARC's user guide
Related links to "Emergy Brick 3-840-320lm SC WH"
Technical Details:

Luminous Flux: 320 lm
LED Output: 3 W
Light Yield: 107 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 120 °
Light Emission: downward
LED-Chip Manufacturer: Everlight
LED-Chip: SMD 2835

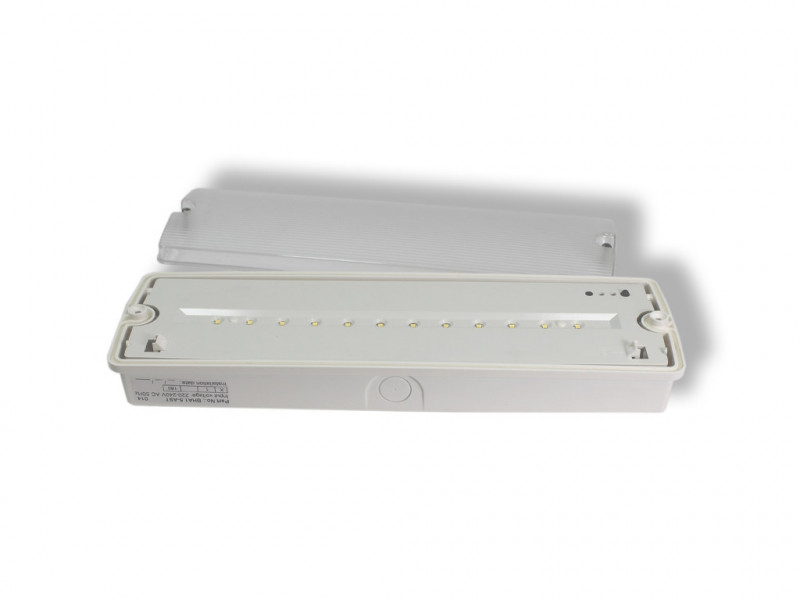

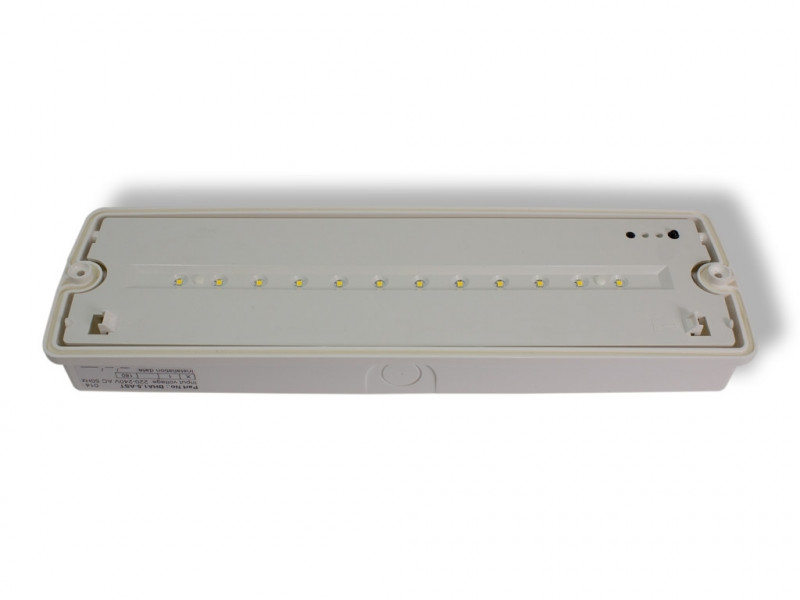

Number of LED: 12
Ignition Time: <1 s
Input Current: AC 220-240VV, 50Hz
Power Consumption: 3 W
Contains Driver: ja
Power Factor (PF): >0.5
Input Driver: terminal
Input Lamp: terminal
Switching Cycles: >25.000
Electrical Protection Class: II
Ambient Temperature (TA): 0°C - 40°C
Storage Temperature: 0°C - 50°C
Dimensions: 355x109x60,8 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 10
Housing Color white
Housing Material: Polycarbonat
Special Feature of Housing: incl. sticker
Cover: frost prismatic
Net Weight: 630 g
Luminaire Type: Rettungszeichenleuchte
Viewing Distance EN1838: ≥20 m
Included Signs: Pfeil links rechts oben unten
Testing Facility: automatischer Selbsttest
Battery Warranty: 3
Discharge Duration: ≥3 h
Battery Type: Li-Ion
Battery Current: 5000 mA
Battery Charge Duration: 8 h
Initial Charge Duration: 16 h
Charging Power Consumption: 9 W
Battery Cell Quantity 1
Luminous Flux in Battery Mode: 320 lm
Safety Standards: DIN EN 60598-2-22, DIN EN 62034: 2012, Zeichen nach ISO 7010, Anforderung nach DIN EN 50172
Certified By: LIA
Type of Packaging: box
Weight incl. Packaging: 0.74 kg
Content Master Package: 15
Dimensions of Master Package: 370x355x355 mm
Weight Master Package: 11,7 kg
Product Line: Advance Line
Warranty 5 years, 25.000 h
Operating Hours: >50.000 h L70/B30
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,Reach
Barcode: 4250557819280
nur 0,5W Stromaufnahme im Standby Modus
only 0,5W power consumption in stand by
Selbsttest: wöchentlich 30 s, Dauertest 1 x year
selftest: weekly 30s, full duration test 1 x year
Dauerbetrieb: 4,5W/Lademodus 9W max.
