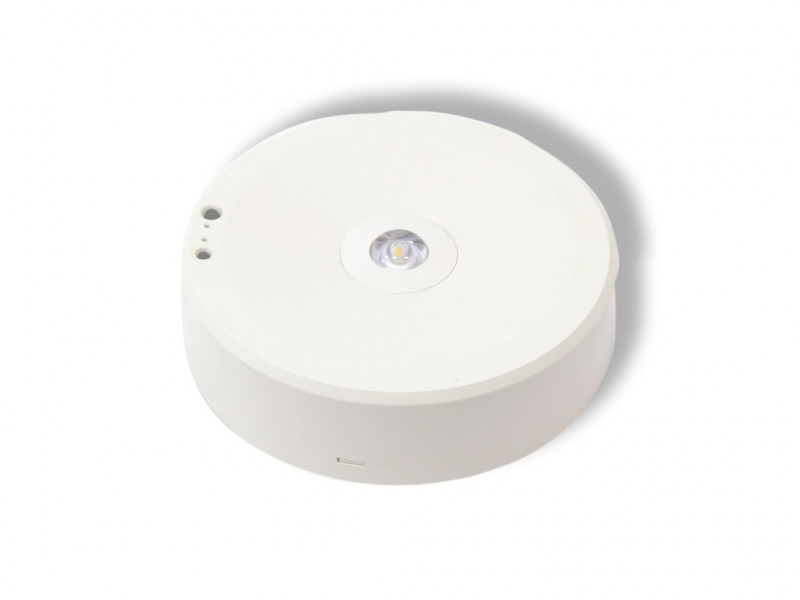

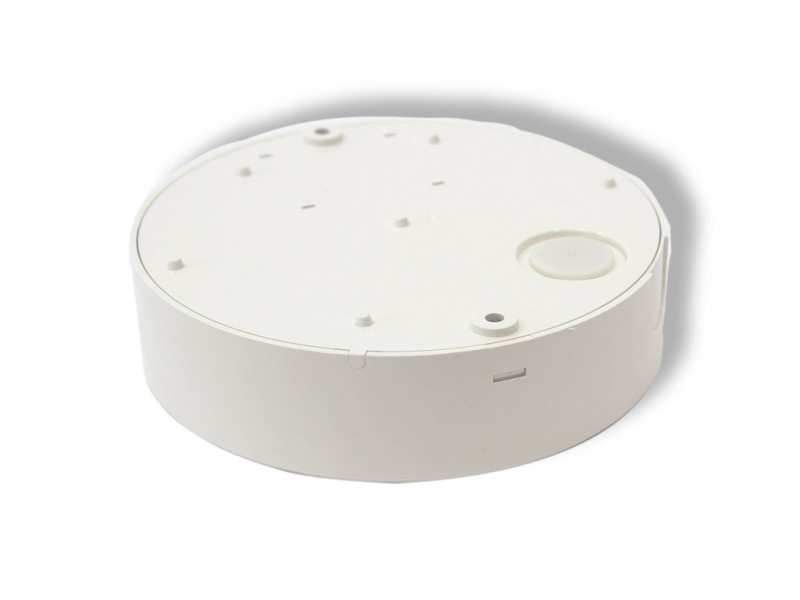

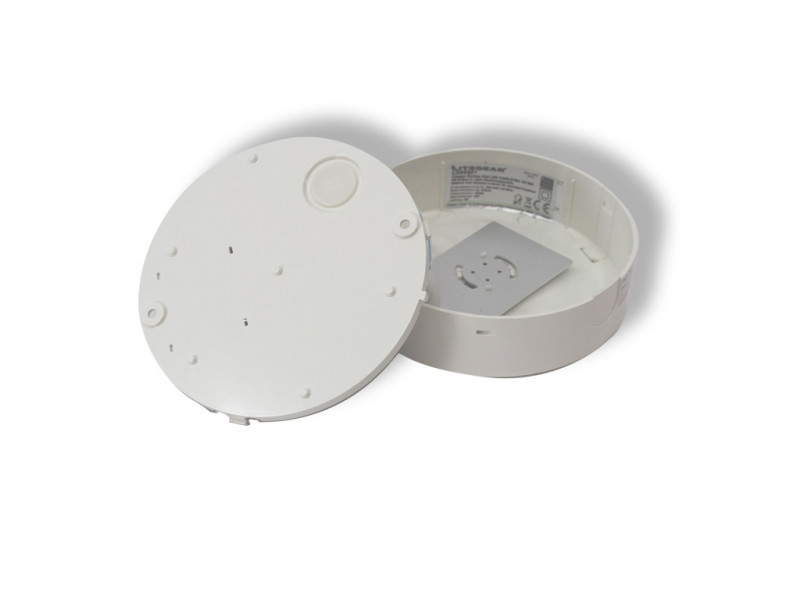

Emergy Disk 1,5-840-140lm SC WH ASYMMETRIC Corridor
Order number: LG60023
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
LED escape route light Safety light with single battery supply for... more
Product information "Emergy Disk 1,5-840-140lm SC WH ASYMMETRIC Corridor"
LED escape route light

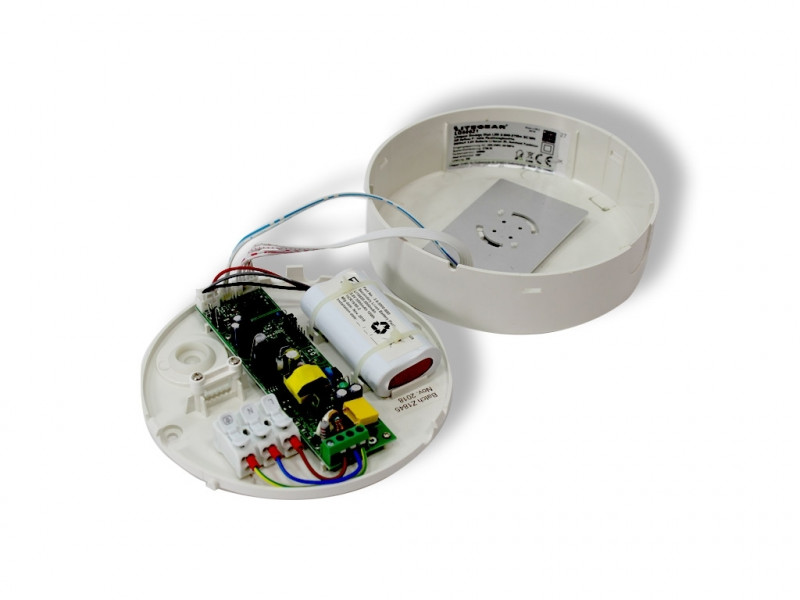

- Safety light with single battery supply for escape route illumination. 3 hours of emergency lighting by means of lithium battery. 2600mA, 3.6V. Good brightness and wide light distribution.Manual function test via push button. Advanced auto selftest function. LED light source with long life up to 50,000 hours. LED status display via red and green LED. Compact round polycarbonate housing with easy access for battery change. Can me installed on concrete, wood and plasterboard ceilings.Permanent phase monitoring.
- Operating equipment: emergency / network: electronic ballast
- auto self test function: monthy function test and annualy duration test
- Beam angle: asymmetrical 2 x 45 °
- LED: 1,5W
- battery operated emergecy light: >3 hours
- Luminous flux: typ. 140 lumens
- surface mounted version
Related links to "Emergy Disk 1,5-840-140lm SC WH ASYMMETRIC Corridor"
Technical Details:
| Luminous Flux: | 140 lm |
| LED Output: | 1.4 W |
| Light Yield: | 93 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 145x75 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Tiandian |
| LED-Chip: | SMD 5050 |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240VV, 45mA, 50Hz |
| Power Consumption: | 2 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 150x40 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 |
| IK Code: | 06 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Coating: | matte |
| Special Feature of Housing: | Surface-mounted housing round |
| Cover: | Lens |
| Net Weight: | 375 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | Li-Ion |
| Battery Current: | 2500 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 8 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 140 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Certified By: | LIA |
| Type of Packaging: | box |
| Dimensions of Packaging: | 160x158x50 |
| Weight incl. Packaging: | 0.4 kg |
| Content Master Package: | 28 |
| Dimensions of Master Package: | 360x336x327 mm |
| Weight Master Package: | 11,6 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,LM80,D |
| Barcode: | 4260733770076 |
| Über- und Entladeschutz, greene Status LED, Taster | |
| Asymmetrisches Abstrahlverhalten 145°x75° Korridor | |
| Selbstest: 30s/Woche, Dauertest: 1xyear | |
| selftest: 30s/week, full duartion test: 1 x year | |
Runde LED-Rettungswegleuchte mit Einzelbatterieversorgung more
Runde LED-Rettungswegleuchte mit Einzelbatterieversorgung
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 140 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 93 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 145x75°
Lichtaustritt: direkt
Maße: 150x40 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white
Gehäusematerial: Polycarbonat
Gehäusebeschichtung: matt
Abdeckung: Linse
Nettogewicht: 375 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 140 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 93 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 145x75°
Lichtaustritt: direkt
Maße: 150x40 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white
Gehäusematerial: Polycarbonat
Gehäusebeschichtung: matt
Abdeckung: Linse
Nettogewicht: 375 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
