Emergy TWIN HP 3/6-740-500/1000lm AST WH
Order number: LG60033
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
LED escape route light Safety light with single battery supply for escape route... more
Product information "Emergy TWIN HP 3/6-740-500/1000lm AST WH"
LED escape route light
Safety light with single battery supply for escape route lighting. 3 hours emergency lighting with long lasting Li-Ion battery. High brightness and wide dispersion angle with 2 adjustbale LED heads. LED light source with long life up to 50,000 hours. LED status display via green status LED. Can be used mobil in event applications or in large rooms, warehouse, staircase house or outside.
Automatic self test function: monthlöy short function test and annual full duration test with status indication via LED indication.
- Beam angle: symmetrical> 120 °
- LED: 2 x 1,5W
- Luminous flux: typ. 2 x 175 lumen (high system efficency)
- high power saving compared to traditional emergency lights >70%
Related links to "Emergy TWIN HP 3/6-740-500/1000lm AST WH"
Technical Details:
| Luminous Flux: | 1000 lm |
| LED Output: | 6 W |
| Light Yield: | 167 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | sideward |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 58 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240VV, 50Hz |
| Power Consumption: | 6 W |
| Contains Driver: | |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| Input Lamp: | terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |

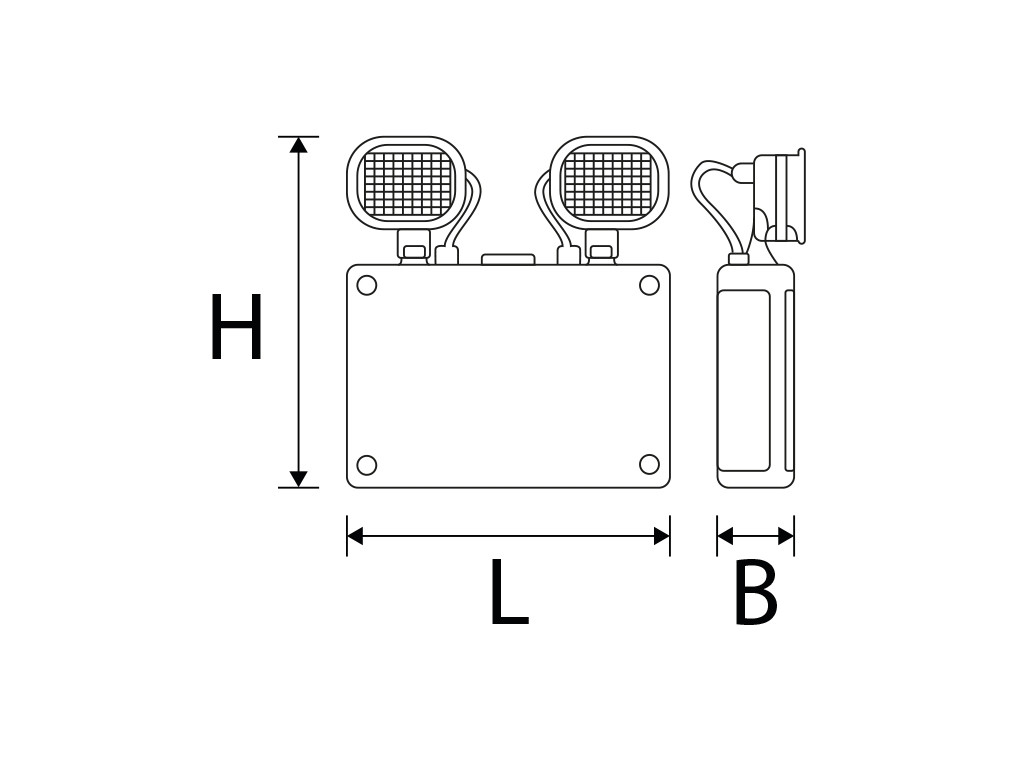

| Dimensions: | 226x62x227,3 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| Pivot Range pan: | 180 ° |
| Pivot Range tilt: | 150 ° |
| IP Class: | 65 |
| IK Code: | 10 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | mob. Aufbaugeh. Twinspot |
| Cover: | clear prismatic |
| Net Weight: | 680 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | Li-Ion |
| Battery Current: | 10000 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 8 W |
| Battery Cell Quantity | 4 |
| Luminous Flux in Battery Mode: | 1000 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.85 kg |
| Content Master Package: | 14 |
| Dimensions of Master Package: | 514x296x489 mm |
| Weight Master Package: | 19 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| für mobilen Einsatz oder in Werkhallen | |
| for mobile use or in factories | |
| schwenkbare/adjustable Spots | |
| wetterfest/weather proof | |
| low Standby power only 0,5W | |
