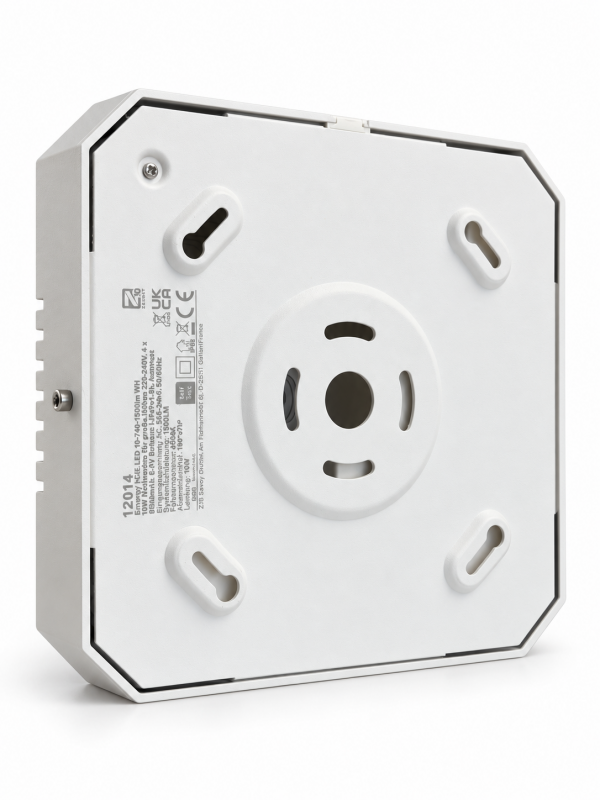

Emergy HCE 10-740-1500lm WH
Order number: LG60036
Prices are only visible after login.
Availability: on request
High Ceiling Emergency LED Luminaires Our multipurpose stand-alone... more
Product information "Emergy HCE 10-740-1500lm WH"
High Ceiling Emergency LED Luminaires
Our multipurpose stand-alone self-contained emergency high ceiling LED luminaires benefit from a sleek modern design and the high-end technology which is common to all of our products. With its high lumen output and low stand-by power consumption (<0.5W) it can be used in either maintained or non-maintained applications. Designed to IP65 ingress protection and IK10 Impact protection requirements they are pre-wired and can be used in many indoor and outdoor lighting schemes.
The Advanced Self-Test (AST) technology built in as standard means it can be used either as part of a manual test (Key switch) lighting scheme or with the Advanced Remote Control (ARC) to add additional functionality. The High Ceiling Emergency Luminaire is manufactured in compliance with current standards including BS 60598-2-22.
The High Ceiling Emergency Luminaire can be mounted either on ceilings (both directly or suspended) or walls and comes with the corridor lens as standard however, it can be adapted for other environments with Accessory optional lenses.
Related links to "Emergy HCE 10-740-1500lm WH"
Technical Details:
| Luminous Flux: | 1500 lm |
| LED Output: | 10 W |
| Light Yield: | 150 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240VV, 50Hz |
| Power Consumption: | 10 W |
| Contains Driver: | |
| Input Driver: | terminal |
| Switching Cycles: | >25.000 |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 200x200x58 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Material: | aluminum |
| Special Feature of Housing: | für bige Höhen |
| Cover: | Lens |
| Net Weight: | 2090 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | programmierter Selbststest |
| Battery Warranty: | 5 |
| Discharge Duration: | ≥5 h |
| Battery Type: | Li-Ion |
| Battery Current: | 8000 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 12 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 1500 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012 |
| Type of Packaging: | box |
| Weight incl. Packaging: | 2.57 kg |
| Content Master Package: | 5 |
| Dimensions of Master Package: | 360x300x250 mm |
| Weight Master Package: | 12,85 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B30 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4260733770588 |
| <1W Stromaufnahme im Standby Modus | |
| < 1W power consumption in stand by | |
| DALI 2 steuerbar/control | |
| programmable central test via software | |
| exchangeable lens for different beamangles | |
Quadratische LED-Rettungswegleuchte mit Einzelbatterieversorgung und Autotestfunktion more
Quadratische LED-Rettungswegleuchte mit Einzelbatterieversorgung und Autotestfunktion
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: 0°C - 40°C
Lichtstrom: 1500 lm
LED-Leistung: 10 W
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 200x200x58 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Gehäusematerial: Aluminium
Abdeckung: Linse
Nettogewicht: 2090 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B30): 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: 0°C - 40°C
Lichtstrom: 1500 lm
LED-Leistung: 10 W
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >70
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 200x200x58 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Gehäusematerial: Aluminium
Abdeckung: Linse
Nettogewicht: 2090 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B30): 50000 h
