Exita Sign Box 1.5-857-70lm AST WH
Order number: LG60049
Prices are only visible after login.
Availability: low stock
Dimensions
LED emergency exit light Litegear Exita Swing: single-battery emergency... more
Product information "Exita Sign Box 1.5-857-70lm AST WH"
LED emergency exit light

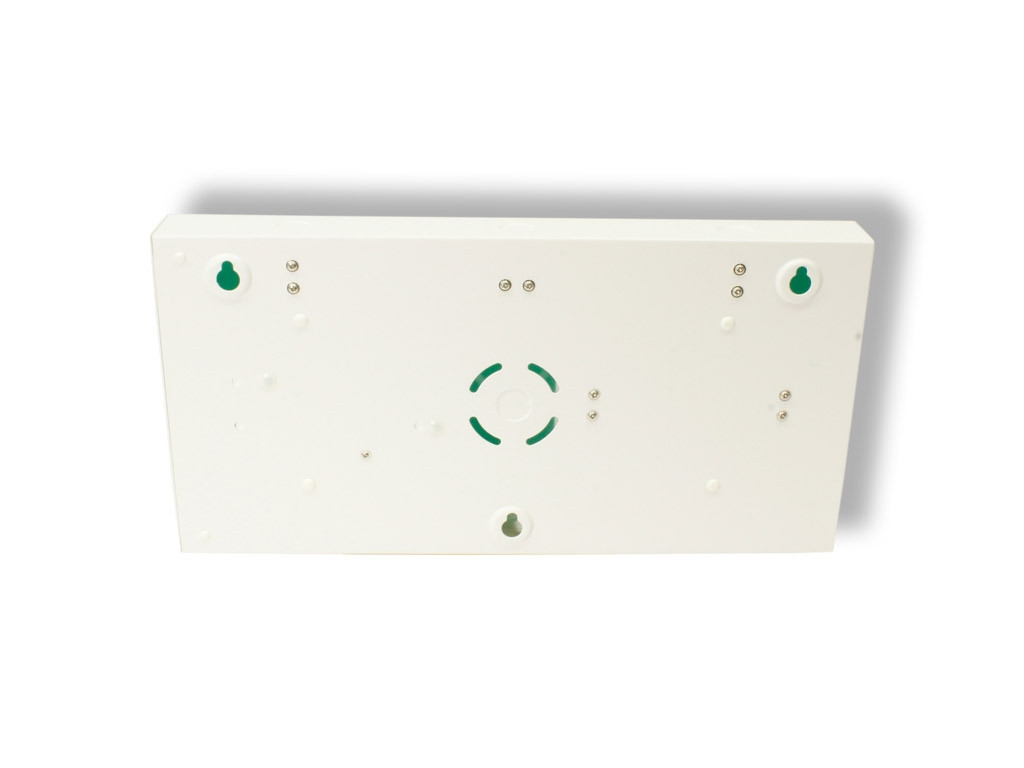

Litegear Exita Swing: single-battery emergency light for escape route marking. Universal swivel mounting kit for wall and ceiling mounting.
The luminaire can be used on one or two sides. Optionally, a mounting arm for side installation is available (see accessories).
Flat, elegant acrylic LED pictogram surface.Over 60% power saving compared to conventional 8W versions with fluorescent tubes.
The exit sign sheets are interchangeable and are fastened by push-button fasteners. Manual test function and green status LED display.
Continuous operation via 230V mains voltage or battery emergency operation of up to 3 hours. Fast installation and easy battery change.
Almost no maintenance cost due to LED technology!
3x pictograms for escape Arrow: "left/right/up included.
Optionally, we offer additional escape route pictograms in a set.
- Material: polycarbonate and acrylic
- Swivel range: 90°
- Accupack included
- average battery life: 4 years max.
- viewing distance: 22 meters
- Overload and discharge protection
- Discharge current: 160mA
- Battery: 4,8v 600mA, NI-CD
- charging current: 30mA
Related links to "Exita Sign Box 1.5-857-70lm AST WH"
Technical Details:
| Luminous Flux: | 80 lm |
| LED Output: | 1.5 W |
| Light Yield: | 53 lm/W |
| Light Temperature: | 5700 K |
| Light Color: | cold white |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Light Emission: | sideways + 40% downwards |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 24 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240VV, 50Hz |
| Power Consumption: | 2 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| Input Lamp: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 50°C |

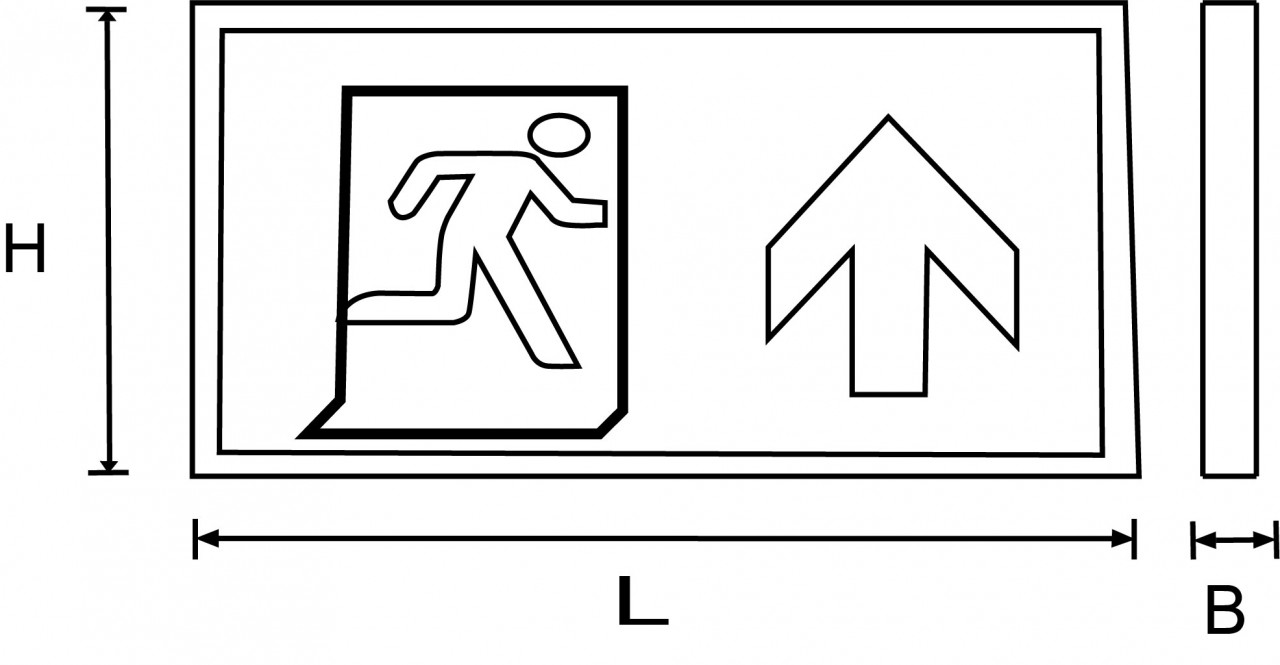

| Dimensions: | 392,6x196,2x41,2 mm |
| Mounting: | Wand |
| Montageart: | surface mounted |
| Pivot Range tilt: | 90 ° |
| IP Class: | 20 |
| IK Code: | 07 |
| Housing Color | white |
| Housing Material: | Sheet steel and PC |
| Coating: | powder-coated |
| Special Feature of Housing: | Attachment housing swivelling |
| Cover: | opal |
| Net Weight: | 1080 g |
| Luminaire Type: | Rettungszeichenleuchte |
| Viewing Distance EN1838: | ≥34 m |
| Included Signs: | Pfeil oben |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | Li-Ion |
| Battery Current: | 900 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 3.5 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 70 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Zeichen nach ISO 7010, Anforderung nach DIN EN 50172 |
| Certified By: | LIA |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.25 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 424x280x427 mm |
| Weight Master Package: | 15,5 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE |
| Barcode: | 4260733770014 |
| geringer Stromverbrauch im Standby 1W | |
| autom. Selbsttest: 30s /Woche, Langzeit: 1 x year | |
| auto selftest: weekly 30s, long duration: 1 x year | |
| Über- und Entladeschutz, Status LED, Taster | |
Universell schwenkbare LED-Einzelbatterie-Sicherheitsleuchte zur Rettungswegkennzeichnung zur... more
Universell schwenkbare LED-Einzelbatterie-Sicherheitsleuchte zur Rettungswegkennzeichnung zur Wand- und Deckenmontage
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 80 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 53 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Lichtaustritt: direkt
Maße: 392,6x196,2x41,2 mm
Montageart: Aufbau (Wand)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK07
Außenfarbe: white
Gehäusematerial: Stahlblech und PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 1080 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 80 lm
LED-Leistung: 2 W
Leuchten-Lichtausbeute: 53 lm/W
Farbtemperatur: 5700 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Lichtaustritt: direkt
Maße: 392,6x196,2x41,2 mm
Montageart: Aufbau (Wand)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK07
Außenfarbe: white
Gehäusematerial: Stahlblech und PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 1080 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
