Nopa Batterie Notstromtreiber LV 6,6W
Order number: LG60052
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Universal emergency driver/switch for LED luminairies with battery pack ... more
Product information "Nopa Batterie Notstromtreiber LV 6,6W"
Universal emergency driver/switch for LED luminairies with battery pack
In combination with a Litegear® NoPa Kit, you can build luminaire with battery-assisted emergency lighting function suitable for constant-current LED luminairies or panels. NoPa is available in 2 versions: LV version (Low Voltage) for drivers with an output voltage of 10-55V DC or an HF version (High Voltage) for lamps with a supply voltage of 50-300V DC, as well as 3.3W and 6.6W output power. The NoPa kit is used between the LED driver and the light source. In the event of a power failure, the internal diverter automatically switches to battery-powered emergency light function with a power of 3,3W to 6.6W. The emergency power operation is guaranteed for at least 3 hours.
The light switch can continue to be used as before.Nopa is equipped with an automatic self-test function. The system carries out weekly functional tests and a long-term test once a year. An external LED displays the status of the device. At present manual tests can be carried out by means of a push-button. The LiFePo4 battery pack is included.
- compact dimensions
- low standby power consumption only 0.8W
- Long battery life >5 years

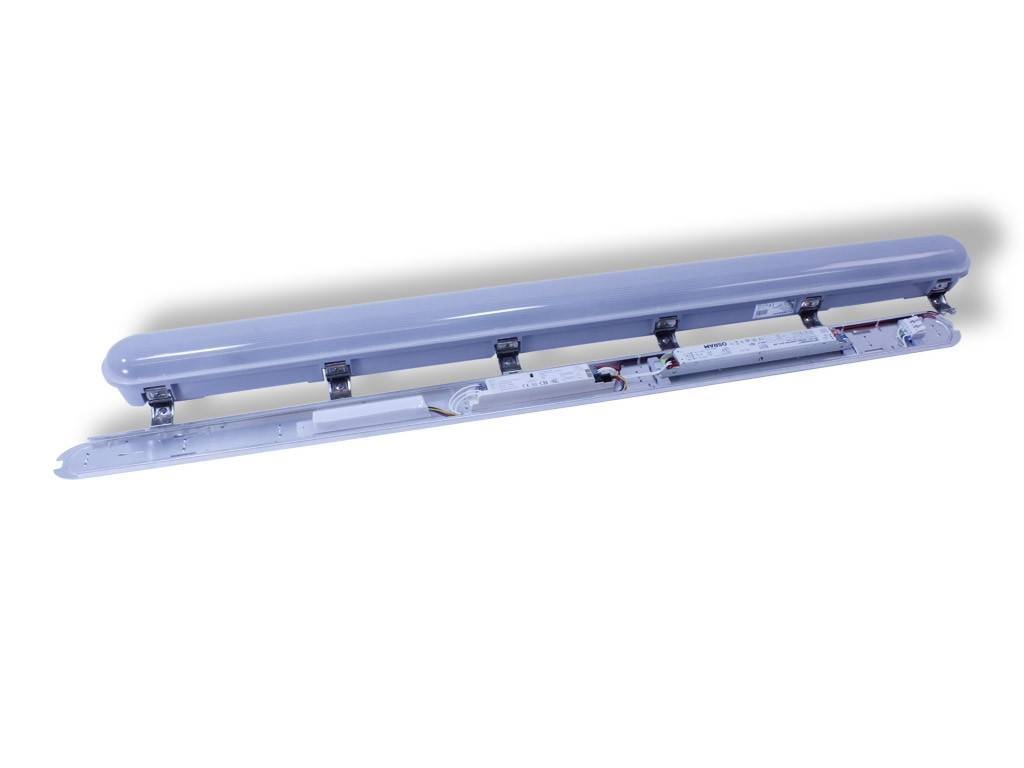

Suitable for supplementing the following LED luminaires with constant current drivers.
Recessed and surface mounted lights. LED panels, damp-proof lights, light-line systems, low-bay lights, floodlights
Related links to "Nopa Batterie Notstromtreiber LV 6,6W"
Technical Details:
| Input Current: | AC 220-240VV, 50/60Hz |
| Input Driver: | terminal |
| Output of Driver: | DC 10-55V, abh. von AusgangsspannungmA |
| Input Lamp: | terminal |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 45°C |
| Storage Temperature: | 0°C - 50°C |

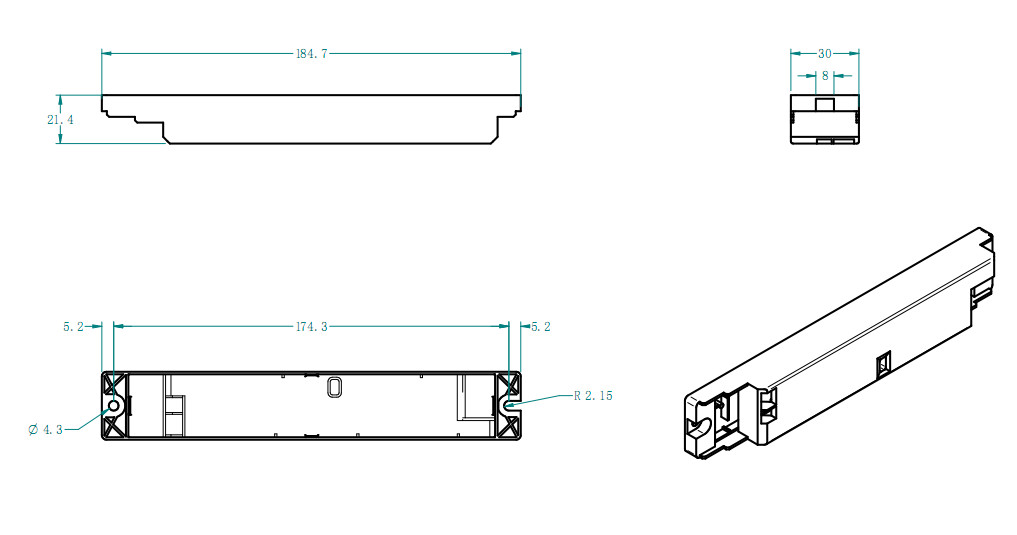

| Dimensions: | 184,7x30x21,4 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | nur zum Einbau geeignet |
| Testing Facility: | automatischer Selbsttest |
| Forward Voltage Range: | 10-55V |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | LiFePo4 |
| Battery Current: | 5000 mA |
| Battery Charge Duration: | 8 h |
| Initial Charge Duration: | 16 h |
| Charging Power Consumption: | 9 W |
| Battery Cell Quantity | 2 |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4260733770496 |
| Spannungsumschaltbereich: 130 - 170V AC <1 s | |
| Umschaltweiche für CC Treiber | |
| autom. wöchentlicher und jährlicher Selbsttest | |
| green/rede Status LED +Testknopf | |
Batterie-Notlicht Umschaltweiche mit Treiber und Batterien für LED Leuchten more
Batterie-Notlicht Umschaltweiche mit Treiber und Batterien für LED Leuchten
Vorschaltgerät: nicht enthalten
Temperaturbereich: 0°C - 45°C
Maße: 184,7x30x21,4 mm
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Polycarbonat
Garantie: 3 Jahre
Vorschaltgerät: nicht enthalten
Temperaturbereich: 0°C - 45°C
Maße: 184,7x30x21,4 mm
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Polycarbonat
Garantie: 3 Jahre
