Estella MKII 80-840-6800LM Dim Sensor

Prices are only visible after login.

Availability: on request

  • LG14342
  • Luminous Flux: 6800 lm
  • Power Draw: 80 W
  • Light Color: neutralwhite
  • Input Current: AC 100- 277V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 40
  • Beam Angle: 110x83°
  • LED-Chip: SMD 2835
  • Housing Color: silver
  • Dimensions: 610x310x1950 mm
  • Warranty: 5 years

Luminous Flux


Power Draw

80 W

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 40

Beam Angle




(LxBxH) in mm


5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED office floor lamp     The new Estella MKII is an elegant floor... more
Product information "Estella MKII 80-840-6800LM Dim Sensor"

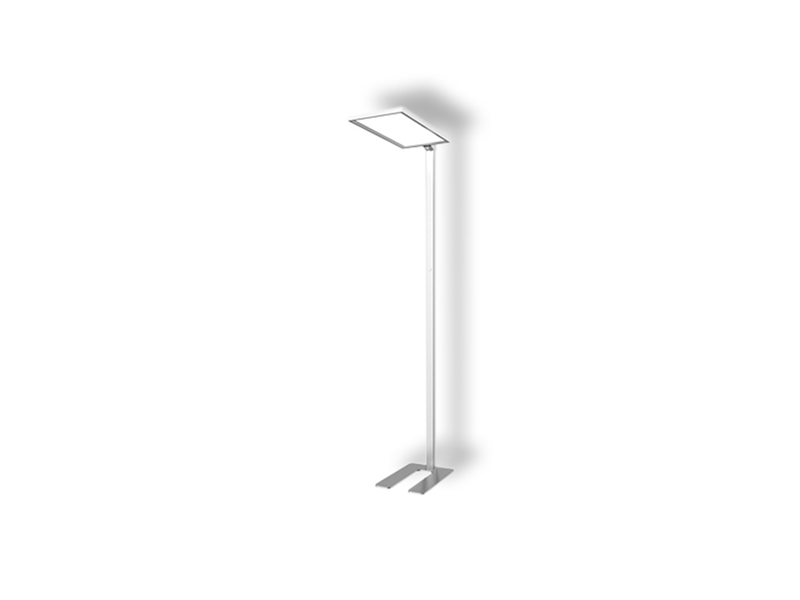

LED office floor lamp

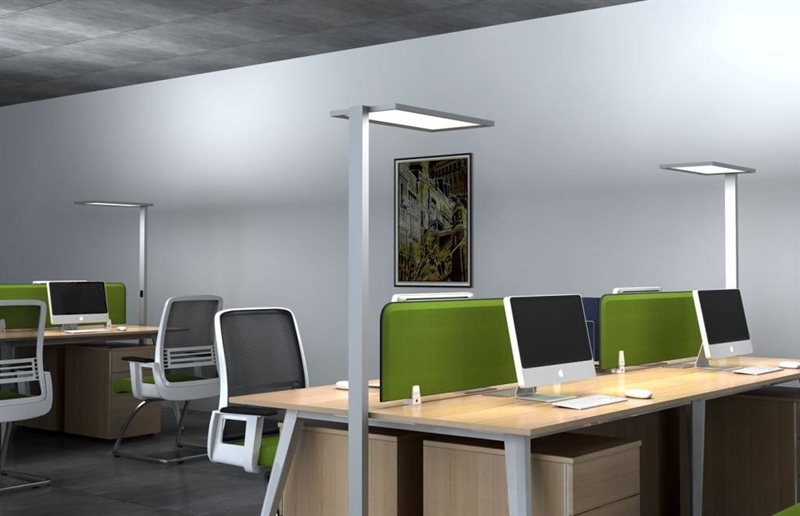

The new Estella MKII is an elegant floor lamp for optimal illumination of desks in open-plan offices and executive floors. The luminaire only needs a socket near the desk and can therefore be flexibly set up. The combination of direct and indirect light with the neutral white light color ensures homogeneous, daylight-like illumination. The lower optical cover is provided to reduce the glare effect UGR <19, with a microprismatics and thus protects the eyes and increases the concentration at work. The brightness can be infinitely dimmed via the sensor button. An integrated occupancy sensor will switch of the luminaire after half an hour when you have left the workdesk.
Related links to "Estella MKII 80-840-6800LM Dim Sensor"
Technical Details:
Luminous Flux: 6800 lm
LED Output: 80 W
Light Yield: 85 lm/W
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <5
Beam Angle: 110x83 °
Unified Glare Rating (UGR): 19
Light Emission: upward/downward
Dimmable: ja
Method of Dimming: Push-Dim
LED-Chip: SMD 2835
Number of LED: 288
Ignition Time: <0,5 s
Input Current: AC 100- 277V, 50/60Hz
Power Consumption: 80 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: cable with plug
Input Lamp: plug connector
Switching Cycles: >50.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 45°C
Dimensions: 610x310x1950 mm
Mounting: ground
IP Class: 40
Housing Color silver
Housing Color (RAL Code): similar 9006
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: Steel base
Cover: prismatic
Net Weight: 14300 g
Type of Packaging: box
Weight incl. Packaging: 16.2 kg
Content Master Package: 1
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,EMC,LVD
Barcode: 4250557814025
LSS: B10 18 Leuchten, B16: 20 Leuchten
