Preview: NOVALOOP Ring Light 120060-60-930/960-6000lm Up/Down Dali Dim

NOVALOOP Ring Light 120060-60-930/960-6000lm Up/Down Dali Dim

Product Info (PDF)

Order number: LG58916WHUPCCT

Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Dimensions

Menü schließen

Order number: : LG58916WHUPCCT
Luminous Flux: 6000 lm
Power Draw: 60 W
Light Color: CCT Select (3000-6000 K)
Input Current: AC 220 - 240V, 278,1mA, 50/60Hz
Color Rendering Index (CRI): ≥95 Ra
IP Code: 20 (20 room side)

Beam Angle: 90°
LED-Chip: Everlight SMD 2835
Housing Color: white
Dimensions: 1200x60 mm
Warranty: 5 years

Luminous Flux

6000
lm

Power Draw

60 W

Light Color

3000-6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>95 Ra

IP Code

IP 20

IP Class Room Side

IP 20
room side

Beam Angle

90°

mounting type

Light Direction

Dimensions

(ØxH) in mm
1200x60

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Suspended Ring light with Dali Dimming High CRI>95 for perfect color... more

Close menu

Product information "NOVALOOP Ring Light 120060-60-930/960-6000lm Up/Down Dali Dim"

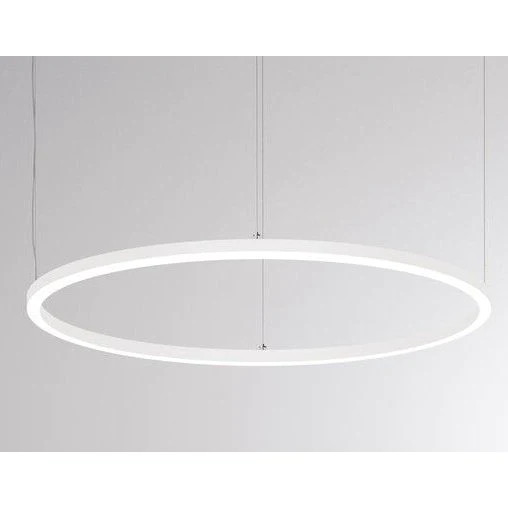

Suspended Ring light with Dali Dimming
High CRI>95 for perfect color rendeing, CCT adjustable via Dali DT8

Nova Loop is a time less luminaire series. Available in wehite and black housing. Including suspension set and 2m feed in cabel.

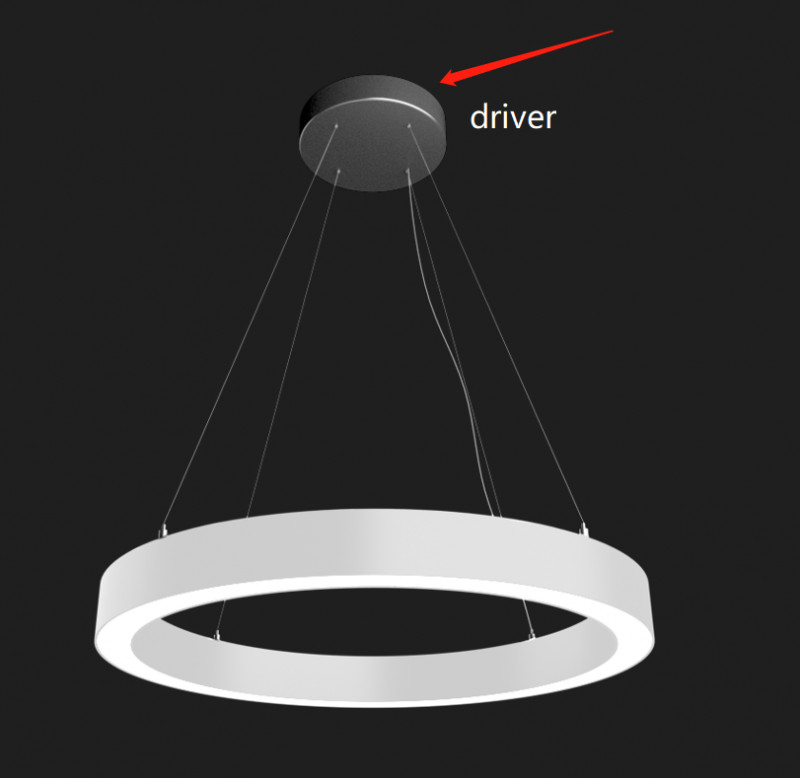

Driver integrated in the canopy ceiuling box.
Direct and indirect light distribution
Light colour adjustable from 3000 Kelvin to 6000 Kelvin

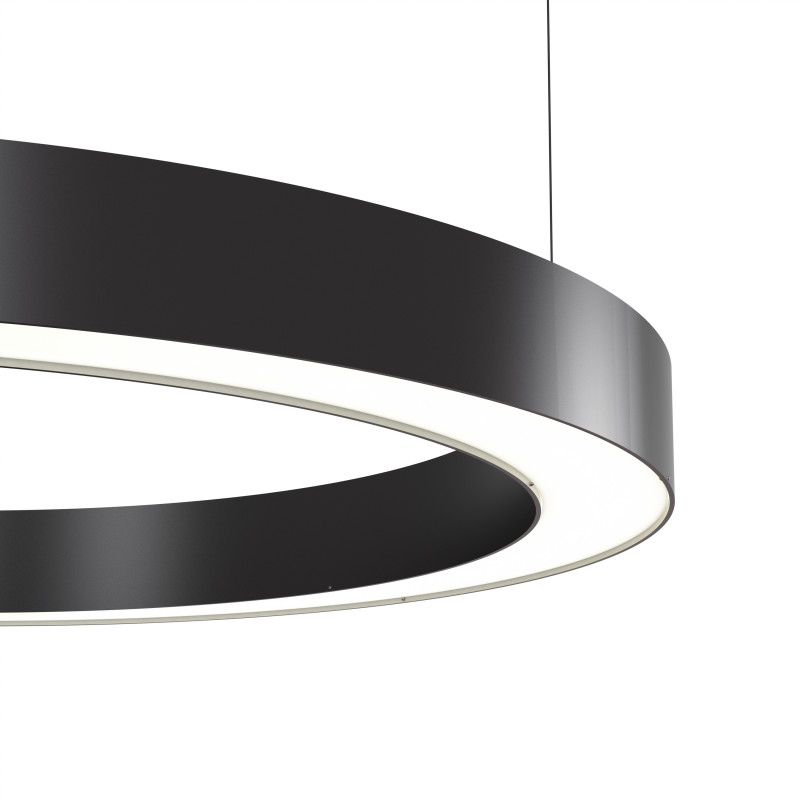

Elegant powder coated aluminium housing 60mm heigh and 40mm wide

Applications:

Residential living, shop, exhibition, dentist, hospital, office

Related links to "NOVALOOP Ring Light 120060-60-930/960-6000lm Up/Down Dali Dim"

Zurück

Technical Details:

Luminous Flux:	6000 lm
Light Yield:	110 lm/W
Light Temperature:	3000-6000 K
Light Color:	CCT Select
Color Rendering Index:	≥95 Ra
Color Consistency (SDCM):	<3
Beam Angle:	90 °
Unified Glare Rating (UGR):	22
Light Emission:	downward
Dimmable:
Method of Dimming:	DALI,Push-Dim
LED-Chip Manufacturer:	Everlight
LED-Chip:	SMD 2835
Number of LED:	624
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 278,1mA, 50/60Hz
Power Consumption:	60 W
Contains Driver:
Power Factor (PF):	>0.97
Input Driver:	lighting track
Output of Driver:	DC 6-42V, 1500mA
CC/CV:	CC
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-25°C - 45°C
Storage Temperature:	-40°C - 80°C

Dimensions:	1200x60 mm
Mounting:	Deckenabhängung
Montageart:	surface mounted
IP Class:	20 (20 room side)
Housing Color	white
Housing Color (RAL Code):	similar 9003
Housing Material:	aluminum
Coating:	powder-coated
Cover:	opal
Net Weight:	7800 g

Type of Packaging:	box
Dimensions of Packaging:	1250x1250x110
Weight incl. Packaging:	11.6 kg
Content Master Package:	1
Weight Master Package:	11,6 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>79.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,SELV
Barcode:	4250557827759
200cm Seilabhängung + Deckenanschlußdose
DALI Dimmung DT8 dual white

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 6000 lm
LED-Leistung: 60 W
Leuchten-Lichtausbeute: 110 lm/W
Farbtemperatur: 3000-6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >95
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 1200x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 7800 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
