NOVALOOP Ring Light 80060-40-930/960-4000lm Up/Down Dali Dim
Order number: LG58915WHUPCCT
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG58915WHUPCCT
- Luminous Flux: 4000 lm
- Power Draw: 40 W
- Light Color: CCT Select (3000-6000 K)
- Input Current: AC 220 - 240V, 187,5mA, 50/60Hz
- Color Rendering Index (CRI): ≥95 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 90°
- LED-Chip: Everlight SMD 2835
- Housing Color: white

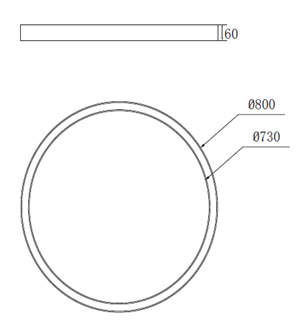

- Dimensions: 800x60 mm
- Warranty: 5 years
Suspended Ring light with Dali Dimming High CRI>95 for perfect color... more
Product information "NOVALOOP Ring Light 80060-40-930/960-4000lm Up/Down Dali Dim"
- Suspended Ring light with Dali Dimming
- High CRI>95 for perfect color rendeing, CCT adjustable via Dali DT8
- Nova Loop is a time less luminaire series. Available in wehite and black housing. Including suspension set and 2m feed in cabel.

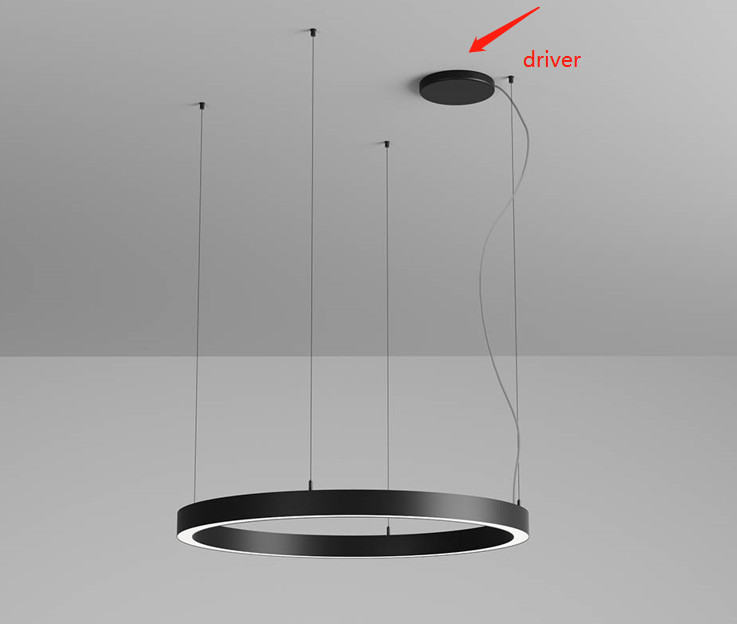

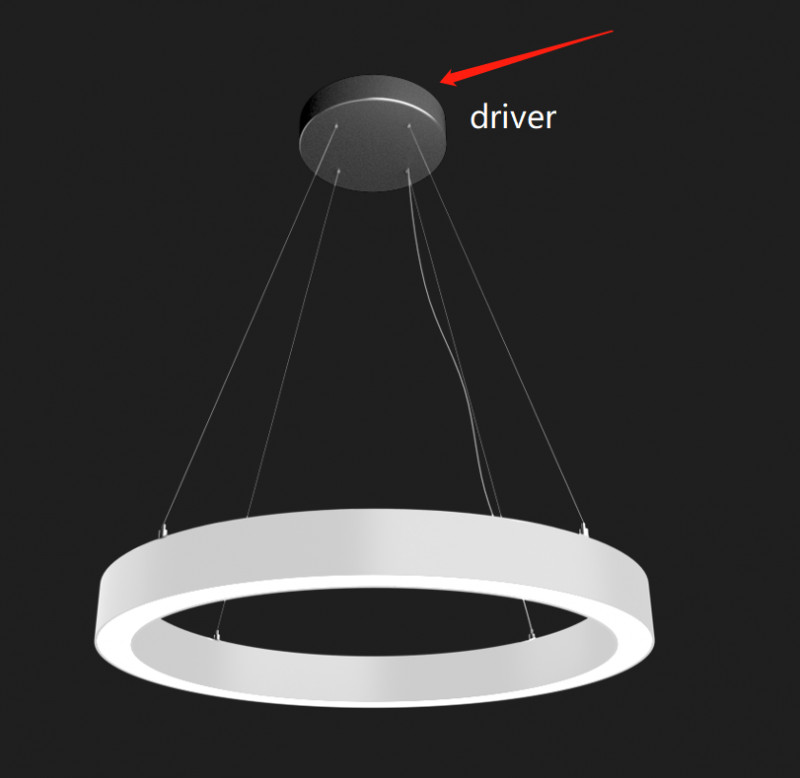

- Driver integrated in the canopy ceiuling box.
- Direct and indirect light distribution
- Light colour adjustable from 3000 Kelvin to 6000 Kelvin
- Elegant powder coated aluminium housing 60mm heigh and 40mm wide
Applications:
Residential living, shop, exhibition, dentist, hospital, office
Related links to "NOVALOOP Ring Light 80060-40-930/960-4000lm Up/Down Dali Dim"
Technical Details:
| Luminous Flux: | 4000 lm |
| Light Yield: | 110 lm/W |
| Light Temperature: | 3000-6000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥95 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 364 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 187,5mA, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | Sunricher |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| Output of Driver: | DC 6-42V, 1050mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 45°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 800x60 mm |
| Mounting: | Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | prismatic |
| Net Weight: | 5500 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 850x850x110 |
| Weight incl. Packaging: | 7.5 kg |
| Content Master Package: | 1 |
| Weight Master Package: | 7,5 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >79.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,SELV |
| Barcode: | 4250557827742 |
| 200cm Seilabhängung + Deckenanschlußdose | |
| DALI Dimmung DT8 Dual White CCT adjust | |
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 110 lm/W
Farbtemperatur: 3000-6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >95
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 800x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 5500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 110 lm/W
Farbtemperatur: 3000-6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >95
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 800x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 5500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
